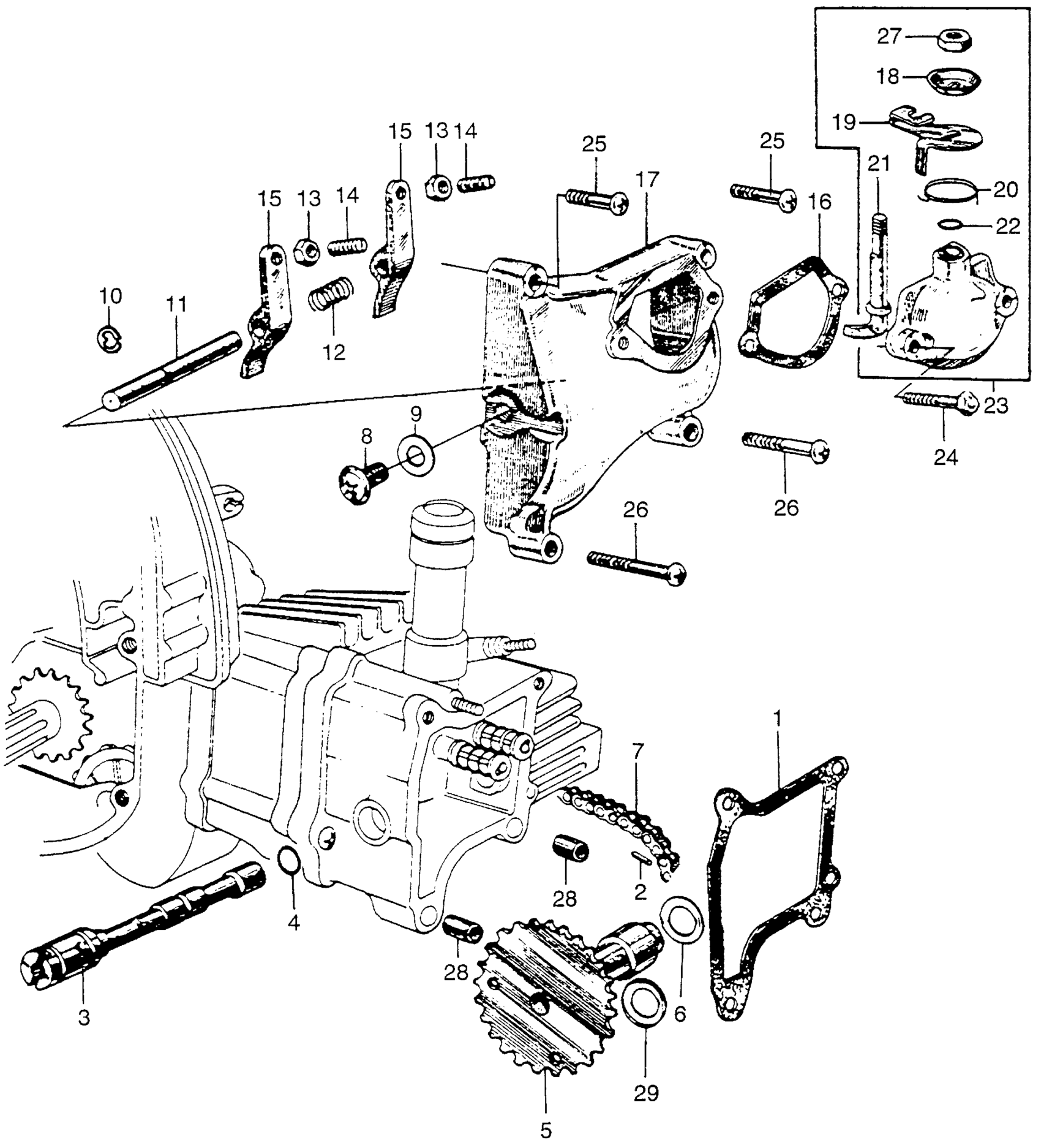

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 CYLINDER HEAD COVER + CAMSHAFT Diagram

#

Description
Price

1

GASKET, CYL HD CVR This part replaces 12391-044-030.

12391-044-306

Unavailable

2

PIN, KNOCK (3X12)

90742-044-000

Unavailable

3

PIN, CAMSHAFT CENTER (NOT AVAILABLE) This part replaces 14120-044-020.

14120-844-000

Unavailable

3

PIN, CAMSHAFT CENTER (NOT AVAILABLE) This part replaces 14120-044-030.

14120-844-000

Unavailable

3

PIN, CAMSHAFT CENTER (NOT AVAILABLE)

14120-844-000

Unavailable

4

O-RING (6.9X1.5) This part replaces 91302-044-010.

91302-044-013

Unavailable

4

O-RING (6.9X1.5)

91302-044-013

Unavailable

5

CAMSHAFT (NOT AVAILABLE)

14100-044-010

Unavailable

6

WASHER A (10MM) (NOT AVAILABLE)

90457-044-010

Unavailable

7

CHAIN, CAM (NOT AVAILABLE)

14401-044-000

Unavailable

8

BOLT, SEALING (8MM) (NOT AVAILABLE)

90081-044-000

Unavailable

9

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

9

GASKET, OIL PIPE JOINT This part replaces 90488-044-000.

90405-001-000

$1.89

10

CIRCLIP (6MM) This part replaces 90603-044-000.

90454-GB2-000

$1.79

11

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-044-000

Unavailable

12

SPRING, ROCKER ARM SIDE (NOT AVAILABLE)

14481-044-000

Unavailable

13

NUT, TAPPET ADJ.

90206-001-000

$1.66

14

SCREW, TAPPET ADJ. (NOT AVAILABLE)

90012-044-000

Unavailable

15

ARM, VALVE ROCKER (NOT AVAILABLE) This part replaces 14431-044-030.

14431-844-000

$22.31

15

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-844-000

$22.31

16

GASKET This part replaces 12401-044-020.

12401-044-306

Unavailable

17

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-044-020

Unavailable

18

WASHER, LOCK (5MM)

90444-044-000

Unavailable

19

LEVER, DECOMPRESSION (NOT AVAILABLE)

14925-044-020

Unavailable

20

SPRING, DECOMPRESSION LEVER RETURN (NOT AVAILABLE)

14935-044-010

Unavailable

21

ARM, DECOMPRESSION (NOT AVAILABLE)

14921-044-010

Unavailable

22

OIL SEAL (6113) (NOT AVAILABLE)

91216-044-000

Unavailable

23

CAP, VALVE ADJ. (NOT AVAILABLE)

12360-044-000

Unavailable

24

BOLT, CAP (6X22) (NOT AVAILABLE)

92500-06022

Unavailable

25

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

25

SCREW, PAN (6X28)

93500-06028-0A

$1.49

26

SCREW, PAN (6X35)

93500-06035-0A

$1.49

26

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

27

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

27

NUT, HEX. (5MM)

94001-05000-0S

$2.74

28

PIN A, DOWEL (8X14)

94301-08140

$2.25

29

WASHER B (10MM) (NOT AVAILABLE)

90458-044-000

Unavailable
