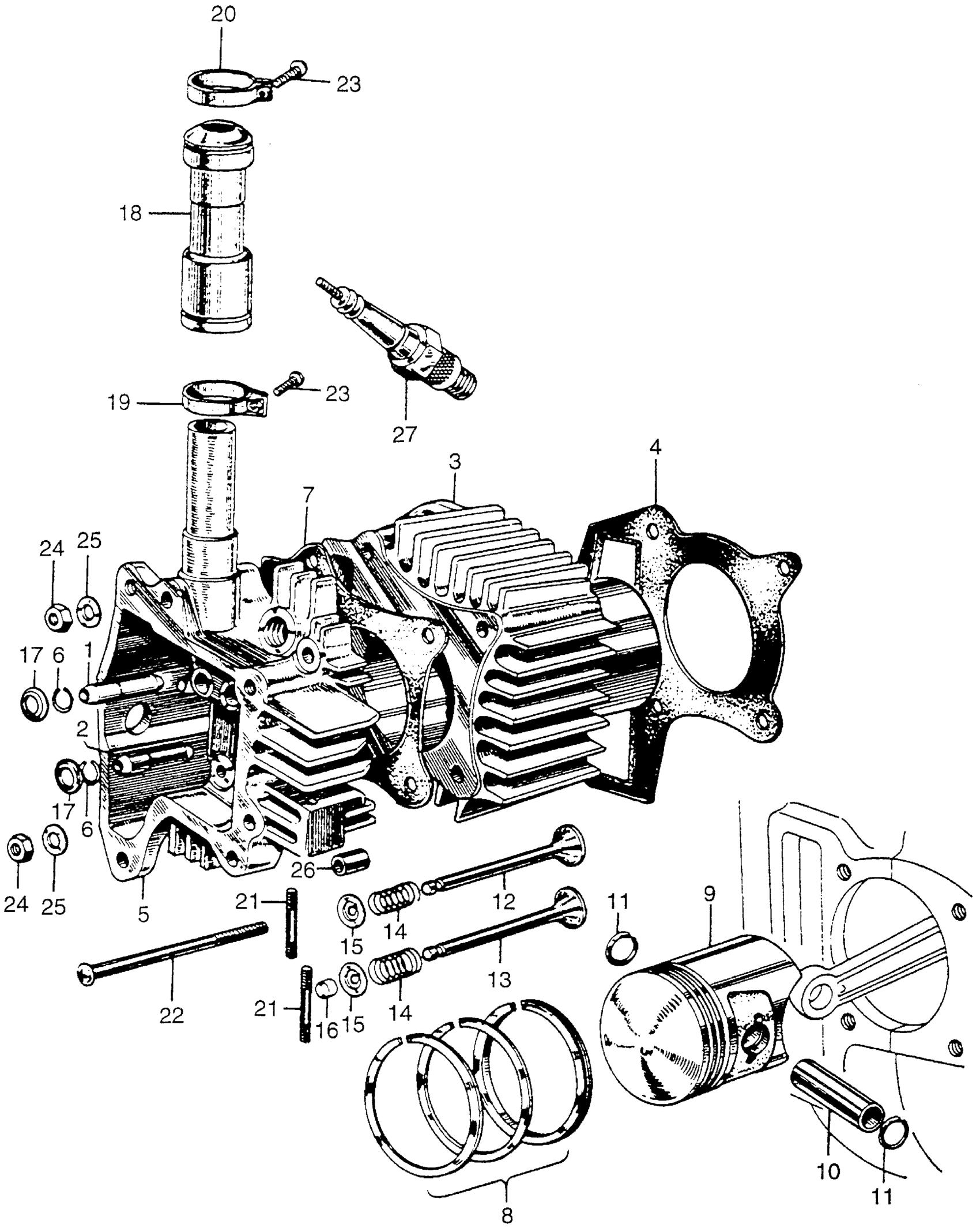

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12021-044-000

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-044-000

Unavailable

3

CYLINDER This part replaces 12101-044-020.

12101-063-010

Unavailable

3

CYLINDER

12101-063-010

Unavailable

4

GASKET, CYLINDER This part replaces 12191-044-000.

12191-044-306

Unavailable

4

GASKET, CYLINDER

12191-044-306

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-044-100

Unavailable

6

CLIP, VALVE GUIDE (NOT AVAILABLE) | Use up to Engine SN A173711

12206-044-300

Unavailable

7

GASKET HEAD This part replaces 12251-044-020.

12251-044-405

Unavailable

8

RING SET, PISTON (STD)

13010-044-000

Unavailable

9

PISTON (STD) (NOT AVAILABLE) | Use up to Engine SN A175135 This part replaces 13101-044-020.

13101-044-030

Unavailable

9

PISTON (STD) (NOT AVAILABLE)

13101-044-030

Unavailable

10

PIN, PISTON

13111-044-010

Unavailable

11

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

11

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

12

VALVE, IN. (NOT AVAILABLE)

14711-044-010

Unavailable

12

VALVE, IN. (NOT AVAILABLE) This part replaces 14711-044-680.

14711-044-010

Unavailable

13

VALVE, EX. (NOT AVAILABLE) | Use up to Engine SN A197896

14721-044-680

Unavailable

13

VALVE, EX. (NOT AVAILABLE) | Use from Engine SN A197897

14721-044-682

Unavailable

14

SPRING, VALVE (NOT AVAILABLE) This part replaces 14751-044-000.

14751-044-010

Unavailable

14

SPRING, VALVE (NOT AVAILABLE)

14751-044-010

Unavailable

15

RETAINER, VALVE SPRING (NOT AVAILABLE) | Use up to Engine SN A197896

14771-044-000

Unavailable

15

RETAINER, VALVE SPRING | Use from Engine SN A197897 This part replaces 14772-044-000.

14772-044-010

Unavailable

15

RETAINER, VALVE SPRING | Use from Engine SN A197897

14772-044-010

Unavailable

16

ADJUSTER, TAPPET CLEARANCE (NOT AVAILABLE) | Use from Engine SN A197897

14777-044-010

Unavailable

17

SEAT, VALVE SPRING (LOWER) (NOT AVAILABLE)

14781-044-000

Unavailable

18

PIPE, CARBURETOR CONNECTING (NOT AVAILABLE) | Use from Engine SN A148607

17112-044-030

Unavailable

19

BAND, CARBURETOR CONNECTING (NOT AVAILABLE) | Use from Engine SN A148607

17120-044-000

Unavailable

20

BAND B, CARBURETOR CONNECTING (NOT AVAILABLE) | Use from Engine SN A148607

17130-044-000

Unavailable

21

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.55

21

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

21

BOLT, STUD (6X18)

92900-06018-0B

$1.55

22

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

22

SCREW, PAN (6X80)

93500-06080-0A

$1.49

23

SCREW, PAN (4X26) This part replaces 93500-04014.

93500-04016-0A

$1.49

23

SCREW, PAN (4X26) This part replaces 93500-04016.

93500-04016-0A

$1.49

23

SCREW, PAN (4X26)

93500-04016-0A

$1.49

23

SCREW, PAN (4X26) This part replaces 93512-04014.

93500-04016-0A

$1.49

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

PIN A, DOWEL (8X14)

94301-08140

$2.25

27

SPARK PLUG (C6HSA) (NGK) This part replaces 98056-56711.

98056-56713

$2.38

27

SPARK PLUG (C6HSA) (NGK)

98056-56713

$2.38
