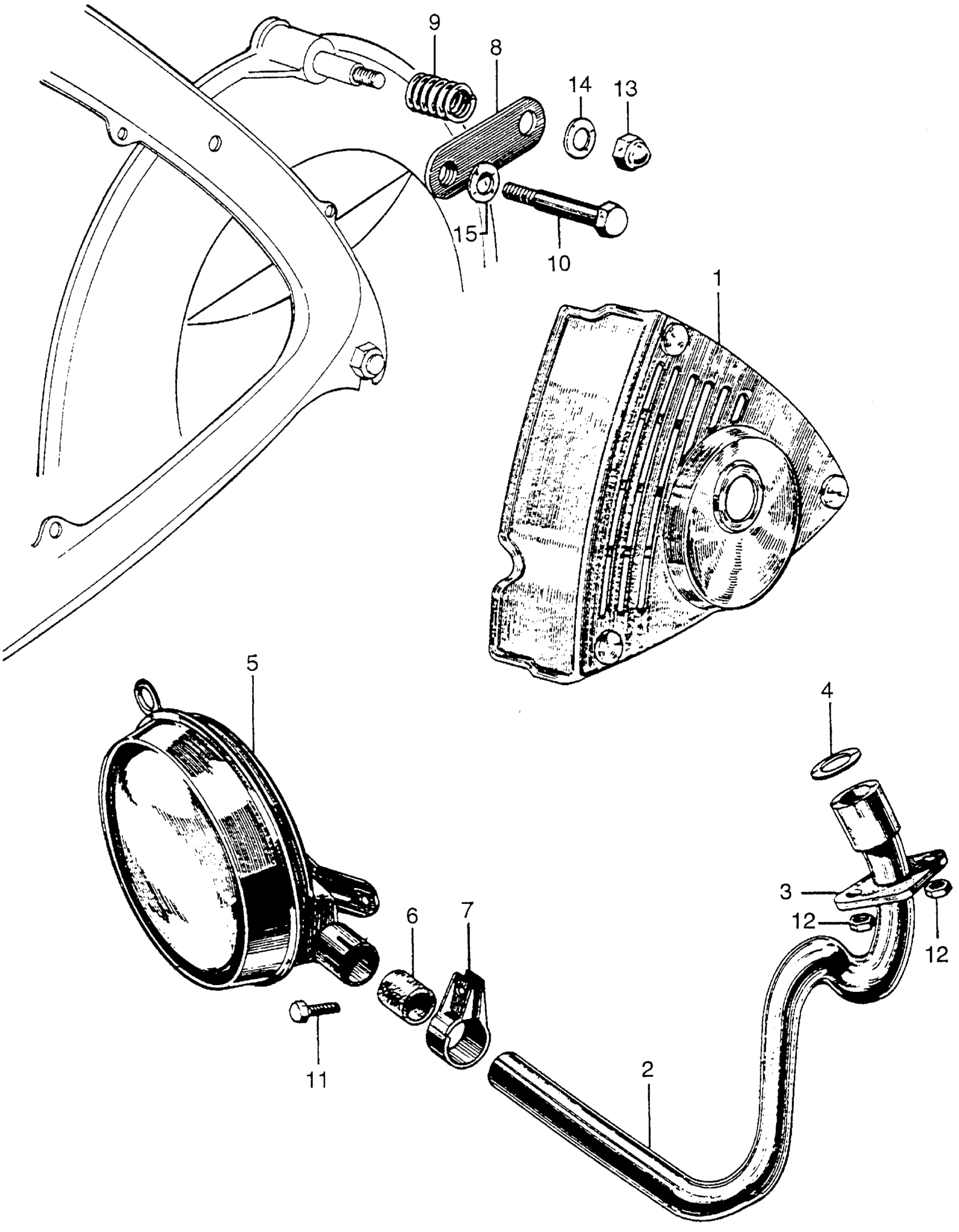

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 CARBURETOR COVER + MUFFLER Diagram

#

Description
Price

1

COVER B, CARBURETOR *Y3L* (IVORY WHITE) (NOT AVAILABLE)

17260-044-010XL

Unavailable

2

MUFFLER (NOT AVAILABLE) | Use from Frame SN A102126 This part replaces 18200-044-681.

18200-044-690

Unavailable

2

MUFFLER (NOT AVAILABLE) | Use from Frame SN A102126

18200-044-690

Unavailable

3

JOINT, EX. PIPE (NOT AVAILABLE)

18231-044-050

Unavailable

4

GASKET, EX. PIPE This part replaces 18291-044-020.

18291-044-405

Unavailable

4

GASKET, EX. PIPE

18291-044-405

Unavailable

5

MUFFLER This part replaces 18300-044-100.

18300-044-621

Unavailable

6

GASKET, MUFFLER This part replaces 18391-044-040.

18391-044-405

Unavailable

7

BAND, MUFFLER (NOT AVAILABLE)

18395-044-020

Unavailable

8

ARM, RR. TORQUE | Use from Frame SN A122061

43431-044-680

Unavailable

9

SPRING, RR. TORQUE (NOT AVAILABLE)

43434-044-020

Unavailable

10

BOLT, HEX. (8X43) This part replaces 92000-08042.

92000-08043-0A

Unavailable

10

BOLT, HEX. (8X43) This part replaces 92000-08043.

92000-08043-0A

Unavailable

10

BOLT, HEX. (8X43)

92000-08043-0A

Unavailable

11

BOLT, HEX. (6X16) This part replaces 93000-06016.

93101-06016-0A

Unavailable

11

BOLT, HEX. (6X16)

93101-06016-0A

Unavailable

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

13

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

13

NUT, CAP (6MM)

94021-06020

$1.73

13

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

13

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, PLAIN (8MM)

94101-08000

$1.49
