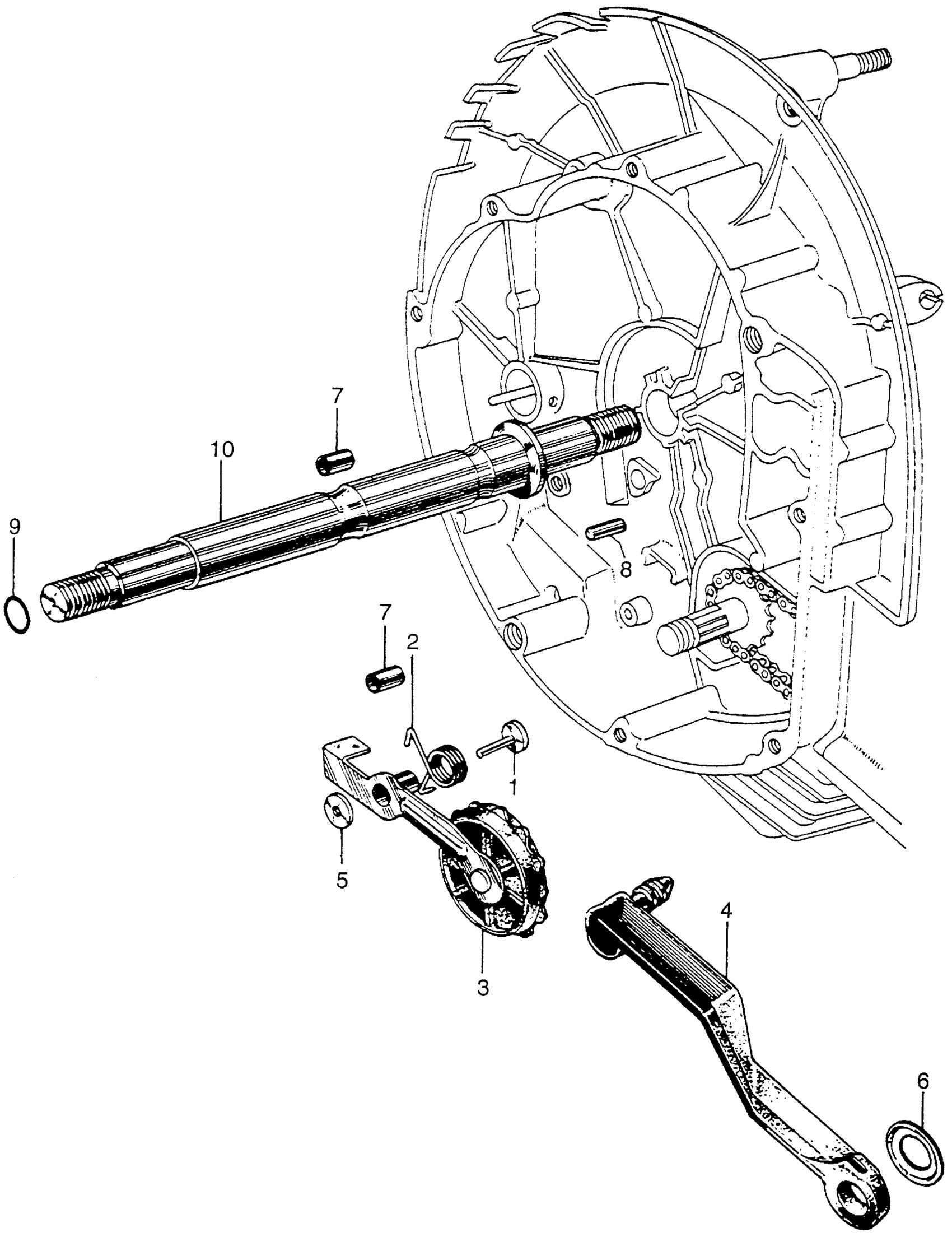

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 CAM CHAIN TENSIONER Diagram

#

Description

Price

1

RIVET A (4MM) (NOT AVAILABLE)

11116-044-300

Unavailable

2

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

11117-044-320

Unavailable

3

TENSIONER, CAM CHAIN (NOT AVAILABLE)

11120-044-330

Unavailable

4

GUIDE, OIL (NOT AVAILABLE)

15420-044-060

Unavailable

5

WASHER (4MM) (NOT AVAILABLE)

90445-044-300

Unavailable

6

WASHER B (10MM) (NOT AVAILABLE)

90458-044-000

Unavailable

7

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.80

7

PIN A, DOWEL (10X14)

94301-10140

$2.80

8

ROLLER (4X10) This part replaces 91101-268-000.

96220-40100

$0.46

8

ROLLER (4X10) This part replaces 91103-222-000.

96220-40100

$0.46

8

ROLLER (4X10)

96220-40100

$0.46

9

O-RING (16X1.5)

91302-GF9-000

Unavailable

9

O-RING (16X1.5) This part replaces 91307-044-000.

91302-GF9-000

Unavailable

10

AXLE, RR. WHEEL | Use from Engine SN A113321

42300-044-050

Unavailable
