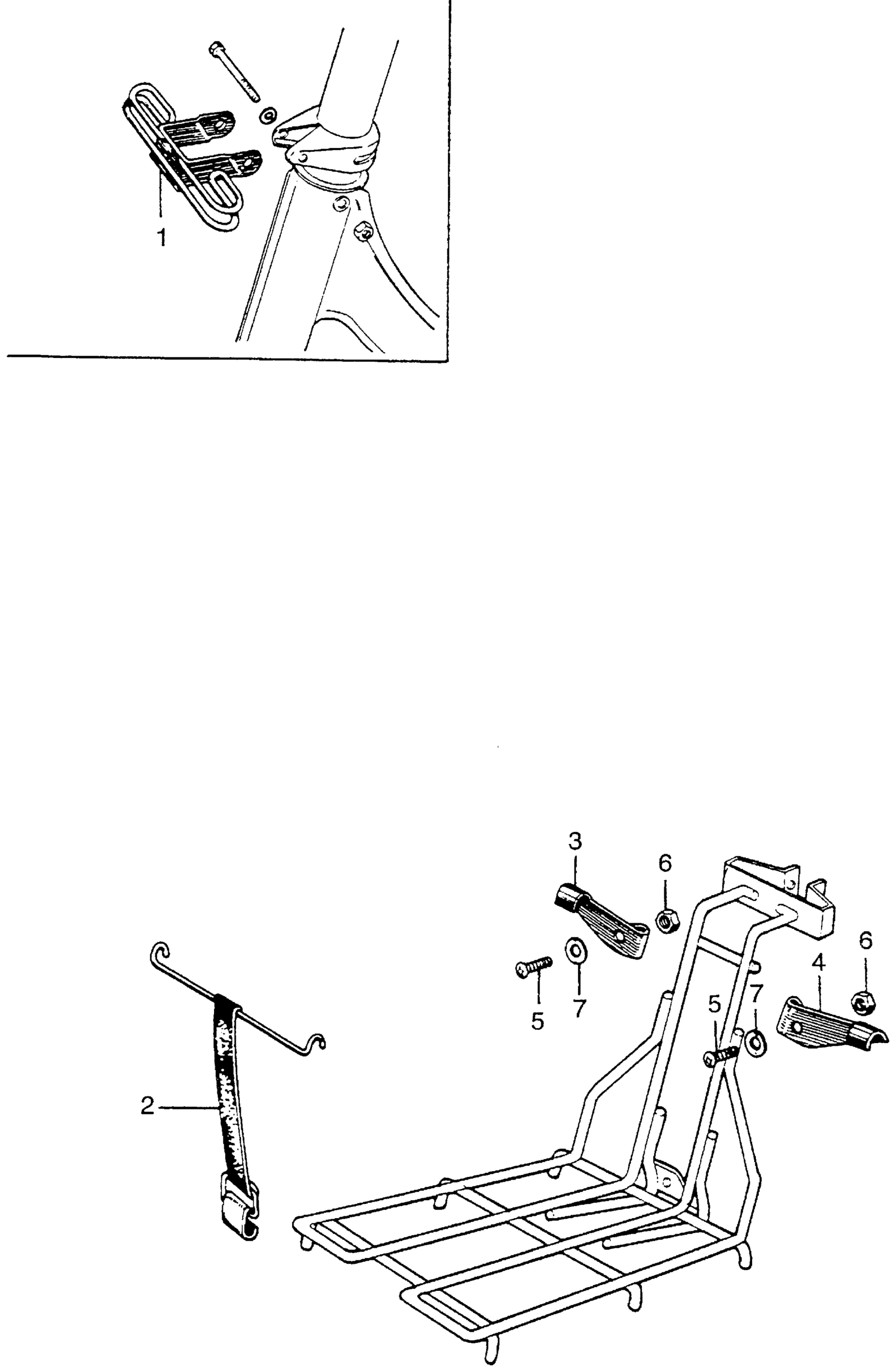

Honda P50A MOTORCYCLE, JPN, VIN# P50-100001 BASKET HOOKS Diagram

#

Description
Price

1

CLIP, CABLE (NOT AVAILABLE) | (Optional).

81213-044-690

Unavailable

2

HOOK A, BASKET (NOT AVAILABLE) | (Optional).

81221-044-811

Unavailable

3

HOOK, R. BASKET (NOT AVAILABLE) | (Optional).

81222-044-811

Unavailable

4

HOOK, L. BASKET (NOT AVAILABLE) | (Optional). Use from Frame SN A156426

81223-044-810

Unavailable

5

SCREW, PAN (6X12) | (Optional). This part replaces 93500-06012.

93500-06012-0A

$1.49

5

SCREW, PAN (6X12) | (Optional).

93500-06012-0A

$1.49

5

SCREW, PAN (6X12) | (Optional). This part replaces 93500-06012-00.

93500-06012-0A

$1.49

6

NUT, HEX. (6MM) | (Optional). This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

6

NUT, HEX. (6MM) | (Optional). This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

6

NUT, HEX. (6MM) | (Optional). This part replaces 94001-06000.

94001-06200-0S

$1.49

6

NUT, HEX. (6MM) | (Optional). This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

6

NUT, HEX. (6MM) | (Optional). This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

6

NUT, HEX. (6MM) | (Optional).

94001-06200-0S

$1.49

6

NUT, HEX. (6MM) | (Optional). This part replaces 94030-06000.

94001-06200-0S

$1.49

7

WASHER, PLAIN (6MM) | (Optional). This part replaces 94101-06000.

94101-06800

$1.49

7

WASHER, PLAIN (6MM) | (Optional). This part replaces 94101-06080.

94101-06800

$1.49

7

WASHER, PLAIN (6MM) | (Optional).

94101-06800

$1.49
