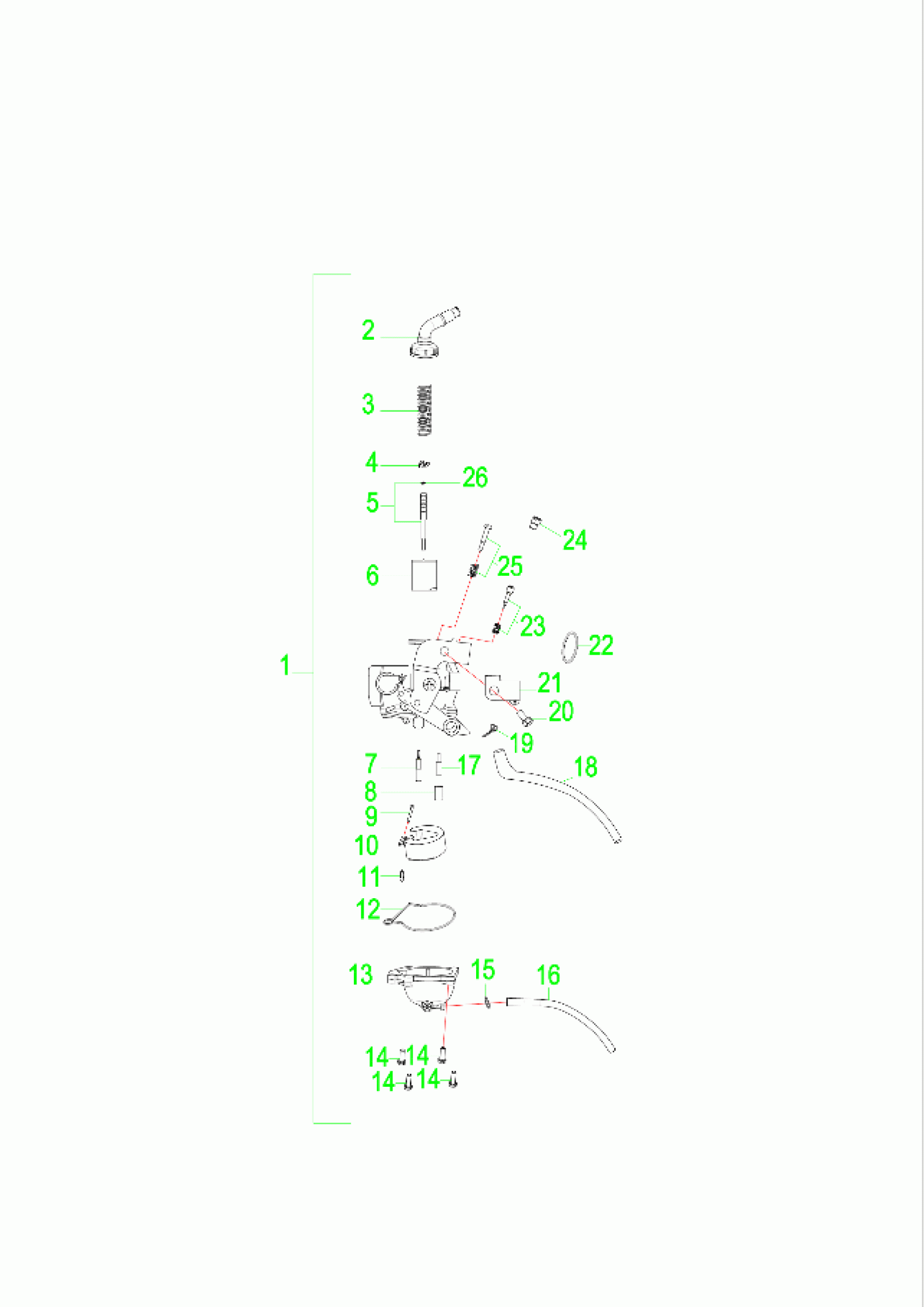

Polaris OUTLAW 90 (R04) - A16YAK09AF ENGINE, CARBURETOR - A16YAK09AF (A00032) Diagram

#

Description
Price

1

ASM., CARBURETOR [INCL. ALL]

0454886

$444.59

2

ASM., CAP

0454190

$43.99

3

SPRING

0454191

$6.39

4

CLIP, NEEDLE

0454192

$4.79

5

ASM., JET NEEDLE [INCL. 26]

0454193

$31.99

6

THROTTLE, VALVE

0454194

$71.99

7

JET, PILOT

0454887

$31.99

8

JET, MAIN

0454888

$23.99

9

PIN, FLOAT

0454197

$4.79

10

FLOAT

0454198

$43.99

11

VALVE, FLOAT

0454199

$43.99

12

SEAL, FLOAT

0454200

$4.79

13

BOWL, FLOAT

0454201

$63.99

14

SCREW

0453629

$5.59

14

SCREW

0453629

$5.59

15

CLIP

0452814

$3.99

16

HOSE, DRAIN

0454202

$8.79

17

VALVE, NEEDLE

0454206

Unavailable

18

HOSE

0453625

$11.19

19

CLAMP, HOSE

0453623

$3.19

20

SCREW

0452541

$3.19

21

CLIP, SUPPORT

0454203

$5.59

22

O-RING

0453626

$31.99

23

ASM., SCREW, AIR

0454204

$13.59

24

SPACER

0455196

$3.99

25

ASM., SCREW, IDLE

0454205

$13.59

26

E-CLIP, NEEDLE JET

0454263

$4.79
