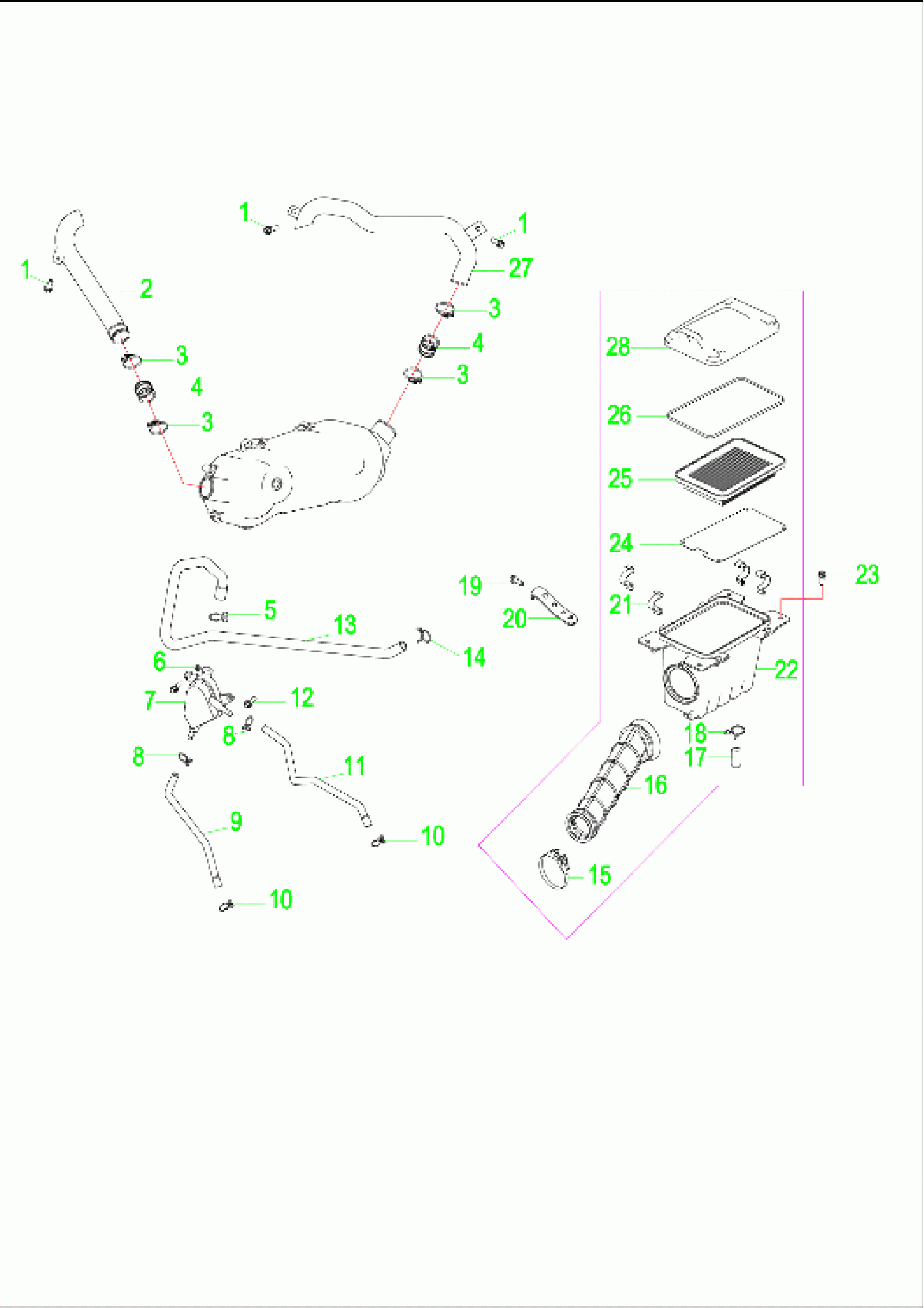

Polaris OUTLAW 90 (R04) - A16YAK09AF ENGINE, AIR INTAKE SYSTEM - A16YAK09AF (A00031) Diagram

#

Description
Price

1

Bolt w/Washer

0450824

$2.39

1

Bolt w/Washer

0450824

$2.39

1

Bolt w/Washer

0450824

$2.39

2

Duct, Inlet

0453331

$59.99

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

4

Boot, Duct

0453656

$9.59

4

Boot, Duct

0453656

$9.59

5

Clip

0453187

Unavailable

6

NUT

0450880

$3.99

7

Separator, Oil

0453184

$63.99

8

Clip

0450865

$11.19

8

Clip

0450865

$11.19

9

TUBE, OIL

0454007

$13.59

10

Clip

0453516

$3.99

10

Clip

0453516

$3.99

11

Tube, Oil

0454006

$23.99

12

BOLT

0452215

$3.99

13

TUBE, BREATHER, VENTILATED

0454008

$39.99

14

Clip

0452795

$3.99

15

Clamp

0453658

$13.59

16

Boot

0453659

Unavailable

17

Hose, Drain

0453725

$7.19

18

Clip

0453661

$4.79

19

Bolt

0453518

$3.99

20

Bracket, Mount, Air Box

0453666

$27.99

21

Clip

0453660

Unavailable

22

Box, Air Cleaner

0453662

$43.99

23

BOLT

0452215

$3.99

24

Filter, Air Cleaner

0453663

$9.59

25

Foam, Intake, Air Cleaner

0454620

$31.99

26

Gasket

0453484

$3.99

27

Duct, Outlet

0453332

$59.99

28

Cover, Air Cleaner

0453665

$35.99
