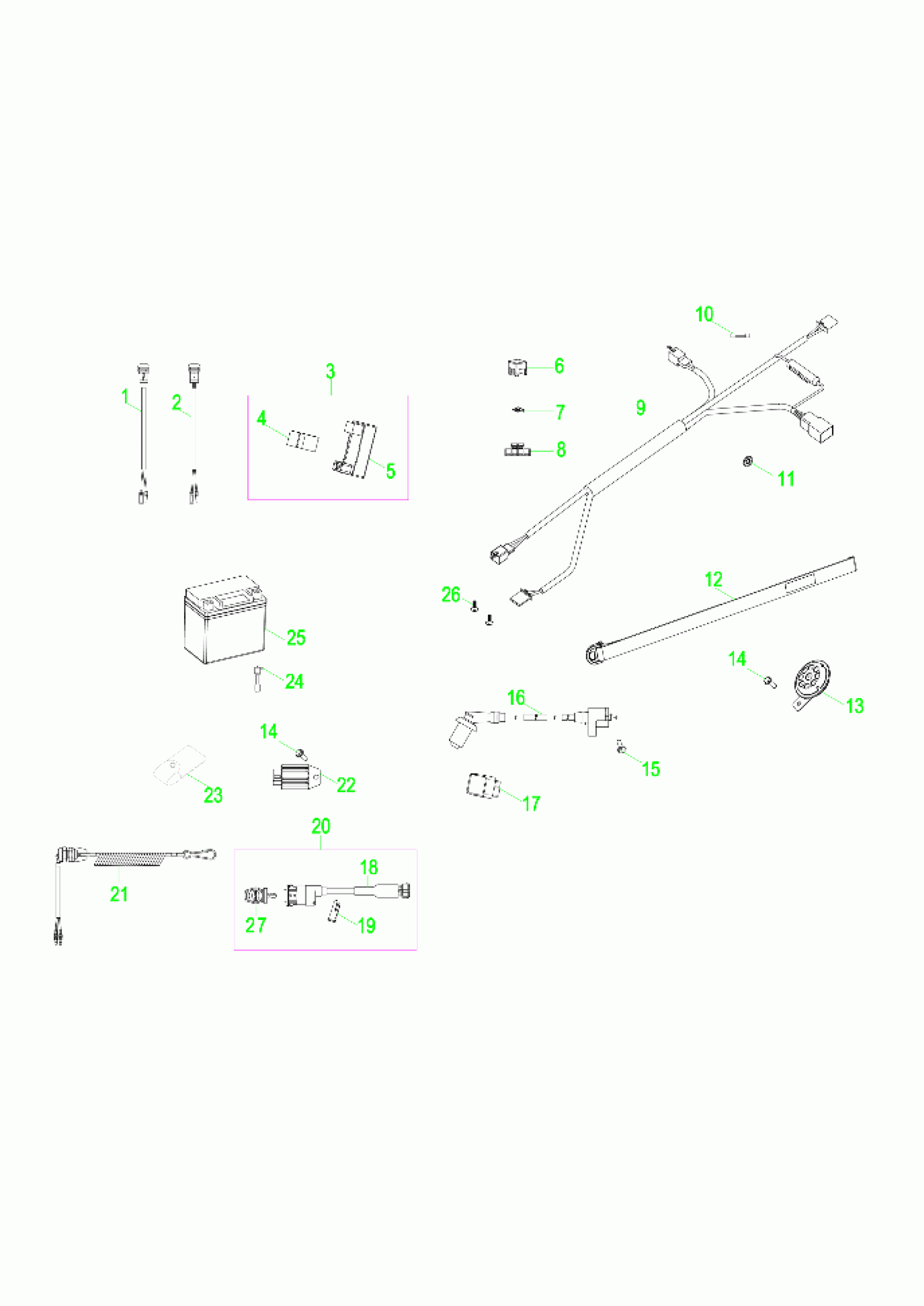

Polaris OUTLAW 90 (R04) - A16YAK09AF ELECTRICAL, SWITCHES, HARNESS and INDICATORS - A16YAK09AF (A00028) Diagram

#

Description
Price

1

INDICATOR, NEUTRAL

0454654

$24.27

2

INDICATOR, REVERSE

0454655

$28.32

3

ASM., CDI UNIT [INCL. 4,5]

0455191

$246.99

4

PAD, RUBBER

0453473

$24.27

5

C.D.I.

----

Unavailable

6

RUBBER CAP

0455189

$5.65

7

JUMPER

0451019

$7.27

8

TERMINAL BOARD

0455188

$36.41

9

HARNESS, MAIN WIRE

0455192

Unavailable

10

FUSE

0453523

$37.99

11

WASHER, STAR

0450890

$3.17

12

WRISTBAND

0453501

$22.06

13

HORN

0451695

$22.79

14

Bolt

0450701

$1.19

14

Bolt

0450701

$1.19

15

BOLT

0452763

$3.17

16

ASM., IGNITION COIL

0452309

$119.98

17

ASM, STARTER RELAY

0453488

$75.99

18

SWITCH, MAIN

----

Unavailable

19

CLIP, MAIN SWITCH

0450549

Unavailable

20

ASM-SWITCH,MAIN [INCL. 18,19,27]

0455544

$84.99

21

SWITCH, SAFETY

0451693

$61.74

22

RECTIFIER/REGULATOR

0454003

$123.49

23

POUCH, TOOL

0454703

$24.99

24

GAUGE, TIRE

0450891

Unavailable

25

BATTERY

4011181

$76.17

26

SCREW

0455026

$4.76

27

KEY, BLANK, LH

0453372

$32.37

27

KEY, BLANK, RH

0453143

$14.56
