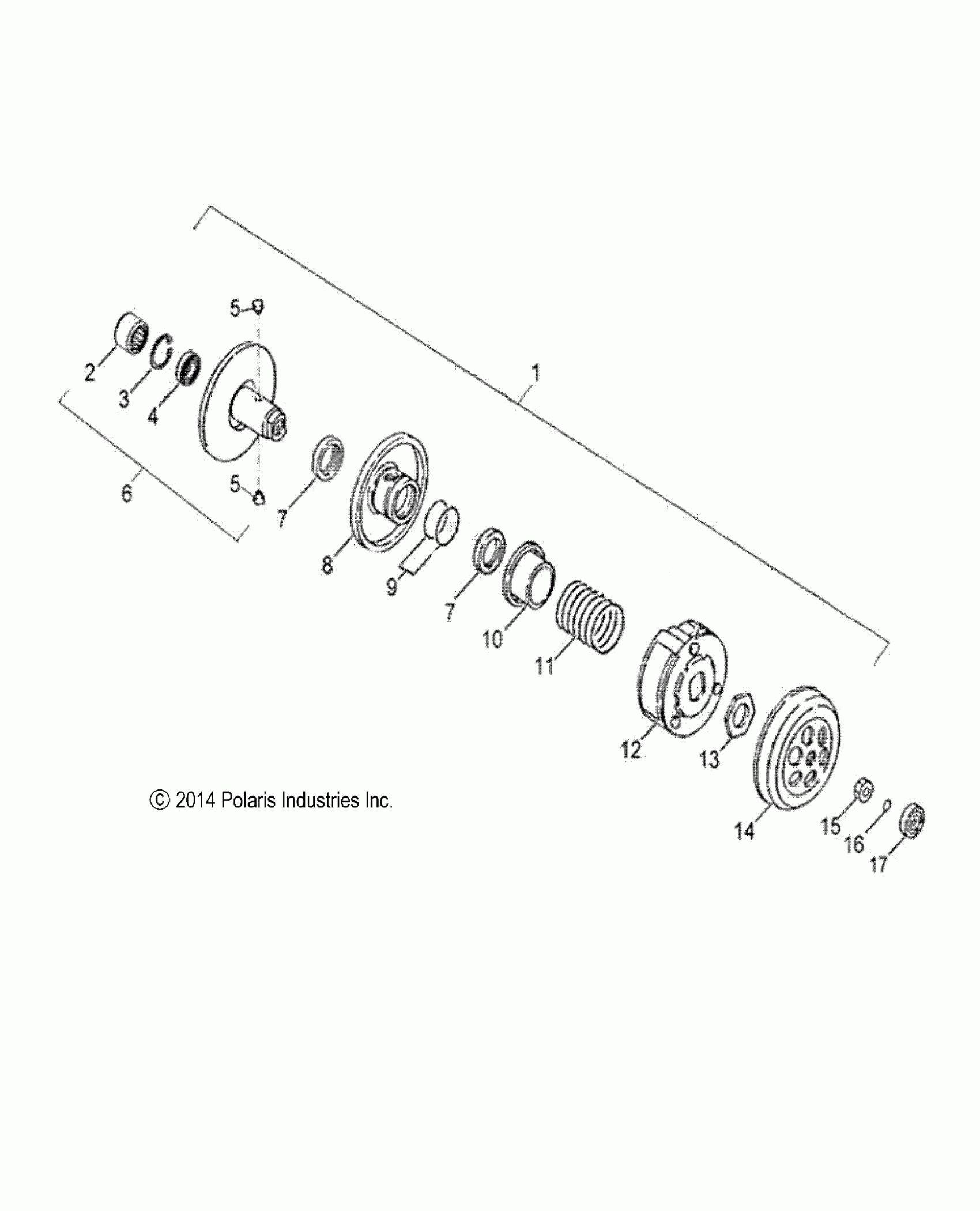

Polaris OUTLAW 90 (R04) - A16YAK09AF DRIVE TRAIN, SECONDARY CLUTCH - A16YAK09AF (49ATVSECONDARY07OTLW90) Diagram

#

Description
Price

1

ASM., DRIVEN CLUTCH [INCL. 6,7-14]

0453454

$327.99

2

BEARING, NEEDLE

0453601

$31.99

3

CIRCLIP

0453600

$5.59

4

BEARING

0453599

$31.99

5

PIN, GUIDE

0453598

$5.59

5

PIN, GUIDE

0453598

$5.59

6

ASM., SHEAVE, DRIVEN [INCL. 2-5]

0453597

$95.99

7

SEAL, OIL

0450211

$9.59

7

SEAL, OIL

0450211

$9.59

8

SHEAVE, MOVEABLE

0453596

$75.99

9

O-RING

0453595

$3.59

10

SEAL, COLLAR

0453589

$23.99

11

SPRING, CLUTCH

0453590

$35.99

12

CARRIER, CLUTCH

0453592

Unavailable

13

NUT

0453593

$9.59

14

COVER, CLUTCH

0453594

$87.99

15

NUT

0450224

$4.79

16

O-RING

0450226

$1.49

17

BEARING

0450225

$39.99
