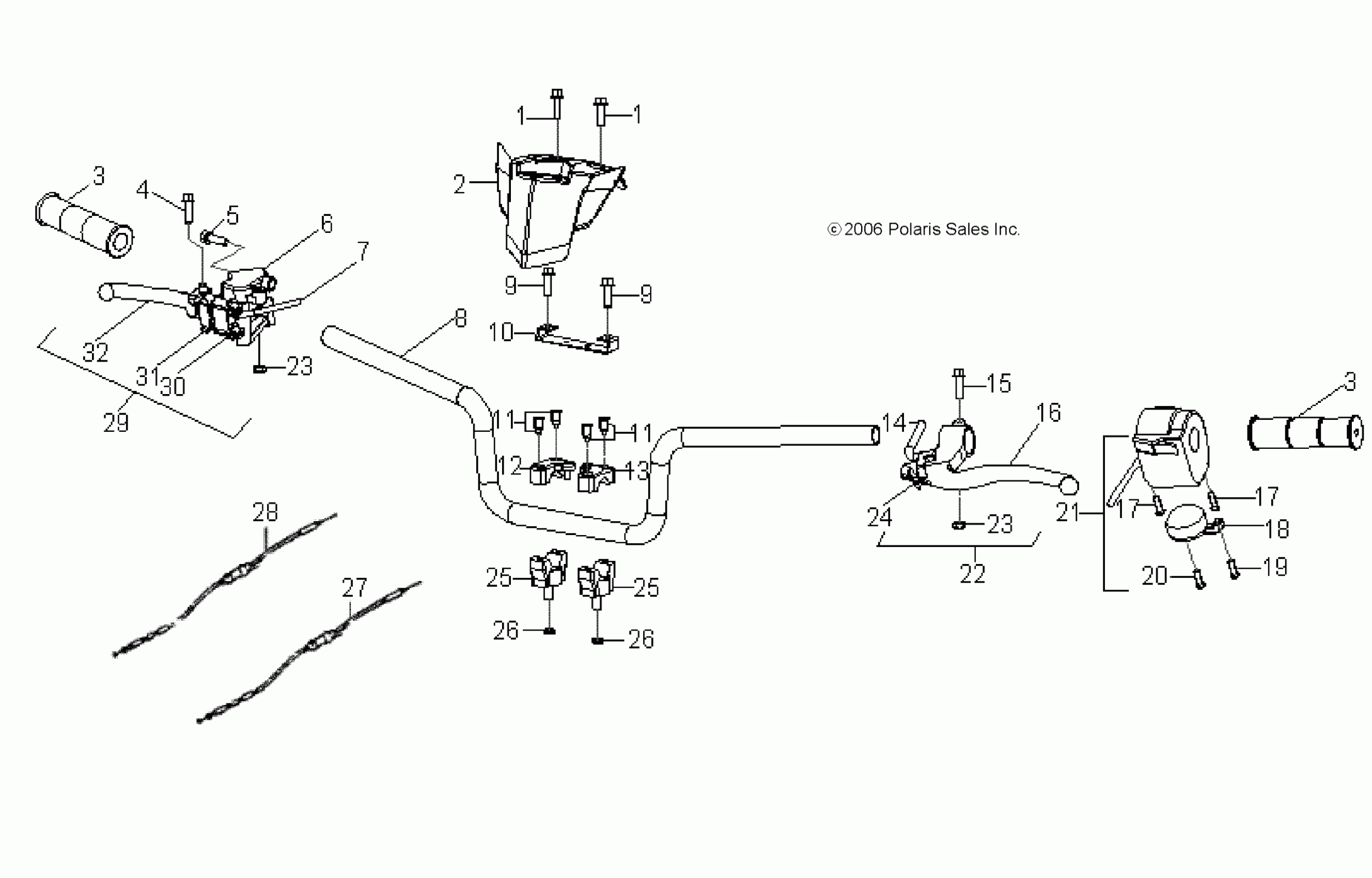

Polaris OUTLAW 90 - A13KA09AD/AF STEERING, HANDLEBAR - A13KA09AD/AF (49ATVHANDLEBAR07OTLW90) Diagram

#

Description
Price

1

Bolt

0450667

$5.59

1

Bolt

0450667

$5.59

2

POD, UPPER, BLACK [AD]

0453329-070

Unavailable

2

POD, UPPER, BOARDWALK BLUE [AF]

0453329-524

Unavailable

3

GRIP, HANDLEBAR

0453370

$23.99

3

GRIP, HANDLEBAR

0453370

$23.99

4

BOLT, BRAKE LEVER, RH

0450806

$2.39

5

BOLT

0451788

Unavailable

6

MOUNT, LEVER, BRAKE, RH

0453721

$135.99

7

WIRE, BRAKE SWITCH

0453736

$43.99

8

HANDLEBAR

0453737-067

$67.99

9

Bolt

0450701

$1.49

9

Bolt

0450701

$1.49

10

BRACKET, POD

0453565

$31.99

11

BOLT

0450148

$3.99

11

BOLT

0450148

$3.99

12

COVER, CLAMP, RH

0450461

$27.99

13

COVER, CLAMP, LH

0450460

$35.99

14

SENSOR, BRAKE

0453815

$43.99

15

BOLT

0450807

$7.19

16

LEVER, BRAKE, SIDE, BLACK

0450693

$27.99

17

SCREW

0451148

$3.19

17

SCREW

0451148

$3.19

18

ASM., MANUAL CHOKE

0453566

$39.99

19

BOLT

0453708

$3.99

20

BOLT

0451149

$3.99

21

ASM., SWITCH, LH [INCL. 17-20]

0454735

Unavailable

22

ASM., LEVER, BRAKE, LH [INCL. 14-16,22-24]

0454043

$59.99

23

NUT

0450808

$2.39

23

NUT

0450808

$2.39

24

LOCK, PARK BRAKE

0454042

$14.39

25

CLAMP, SADDLE

0450459

$39.99

25

CLAMP, SADDLE

0450459

$39.99

26

NUT

0450276

$3.99

26

NUT

0450276

$3.99

27

CABLE, CHOKE

0453499

$43.99

28

CABLE, THROTTLE

0453500

$51.99

29

ASM., LEVER, RH [INCL. 23,30-32]

0453740

$147.99

30

ARM, THROTTLE

0452202

$23.99

31

BRACKET, BRAKE CABLE

0450994

$31.99

32

LEVER, BRAKE, SIDE

0450694

$27.99
