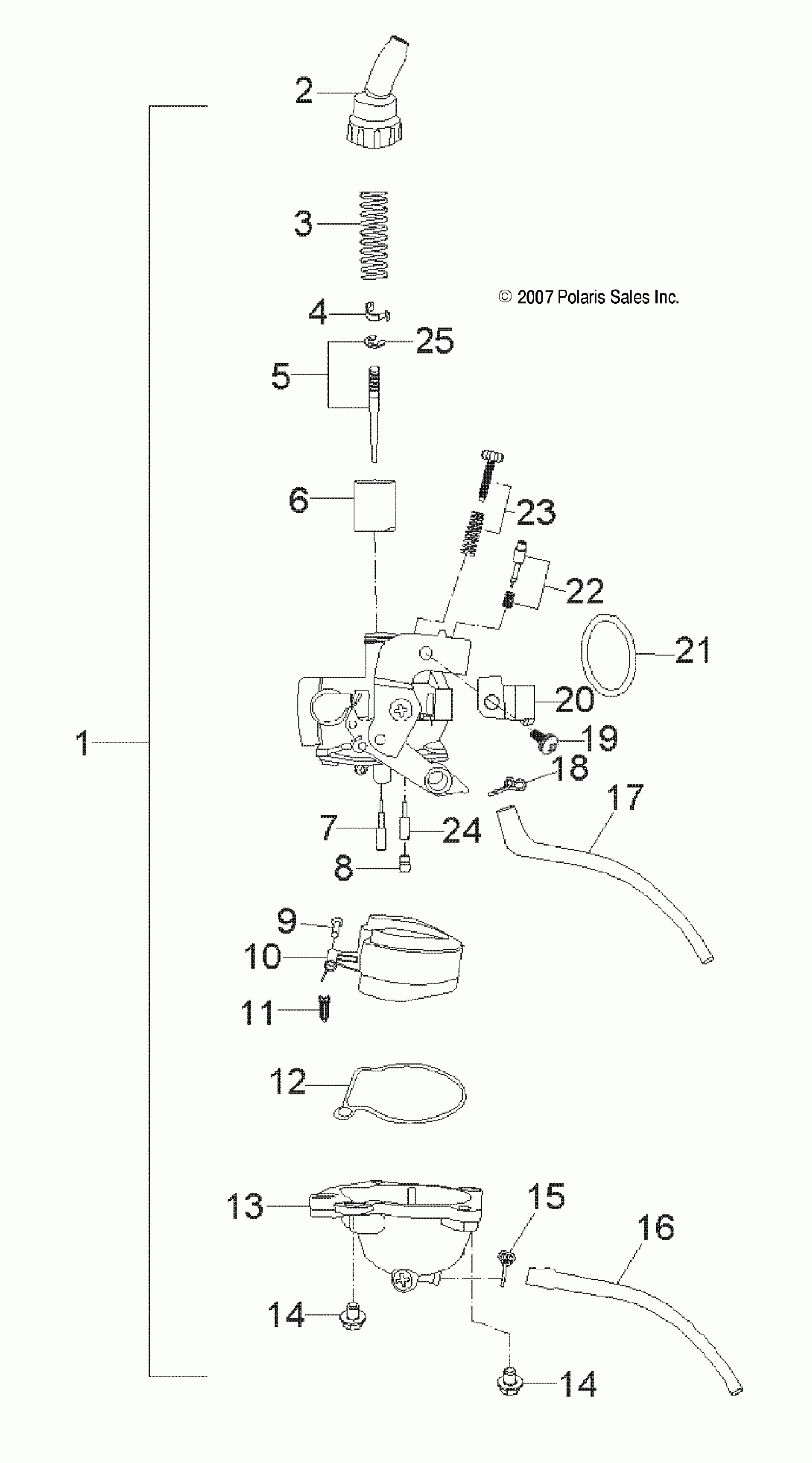

Polaris OUTLAW 90 - A13KA09AD/AF ENGINE, CARBURETOR - A13KA09AD/AF (49ATVCARB09OUT90) Diagram

#

Description
Price

1

ASM., CARBURETOR [INCL. ALL]

0454886

$580.94

2

ASM., CAP

0454190

$48.56

3

SPRING

0454191

$7.27

4

CLIP, NEEDLE

0454192

$4.76

5

ASM., JET NEEDLE [INCL. 25]

0454193

$36.41

6

THROTTLE, VALVE

0454194

$76.89

7

JET, PILOT

0454887

$36.41

8

JET, MAIN

0454888

Unavailable

9

PIN, FLOAT

0454197

$4.76

10

FLOAT

0454198

$48.56

11

VALVE, FLOAT

0454199

$48.56

12

SEAL, FLOAT

0454200

$4.84

13

BOWL, FLOAT

0454201

$68.79

14

SCREW

0453629

$6.46

14

SCREW

0453629

$6.46

15

CLIP

0452814

$3.97

16

HOSE, DRAIN

0454202

$9.70

17

HOSE

0453625

Unavailable

18

CLAMP, HOSE

0453623

$3.17

19

SCREW

0452541

$3.17

20

CLIP, SUPPORT

0454203

$5.56

21

O-RING

0453626

$32.37

22

ASM., SCREW, AIR

0454204

$14.56

23

ASM., SCREW, IDLE

0454205

$14.56

24

VALVE, NEEDLE

0454206

Unavailable

25

E-CLIP, NEEDLE JET

0454263

$4.76
