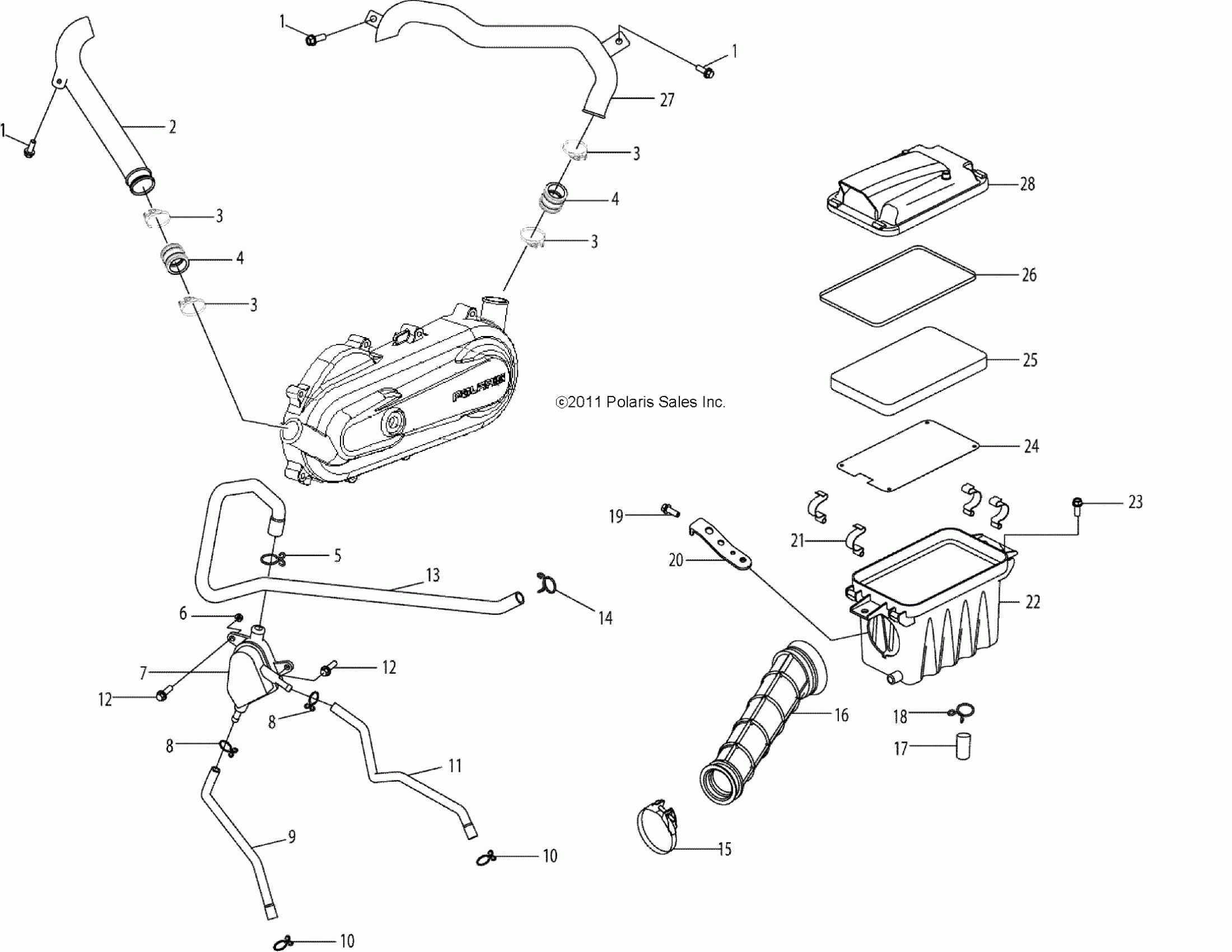

Polaris OUTLAW 90 - A13KA09AD/AF ENGINE, AIR INTAKE SYSTEM - A13KA09AD/AF (49ATVAIRBOX12SP90) Diagram

#

Description
Price

1

Bolt w/Washer

0450824

$2.38

1

Bolt w/Washer

0450824

$2.38

1

Bolt w/Washer

0450824

$2.38

2

Duct, Inlet

0453331

$64.75

3

Clamp

0453655

$10.32

3

Clamp

0453655

$10.32

3

Clamp

0453655

$10.32

3

Clamp

0453655

$10.32

4

Boot, Duct

0453656

$9.70

4

Boot, Duct

0453656

$9.70

5

Clip

0453187

$4.76

6

NUT

0450880

$3.97

7

Separator, Oil

0453184

$84.99

8

Clip

0450865

$12.13

8

Clip

0450865

$12.13

9

TUBE, OIL

0454007

$14.56

10

Clip

0453516

$3.97

10

Clip

0453516

$3.97

11

Tube, Oil

0454006

$28.32

12

BOLT

0452215

$3.97

12

BOLT

0452215

$3.97

13

TUBE, BREATHER, VENTILATED

0454008

$44.51

14

Clip

0452795

$3.97

15

Clamp

0453658

$13.49

16

Boot

0453659

Unavailable

17

Hose, Drain

0453725

$8.08

18

Clip

0453661

$4.76

19

Bolt

0453518

$3.97

20

Bracket, Mount, Air Box

0453666

$28.32

21

Clip

0453660

$5.69

22

Box, Air Cleaner

0453662

$44.51

23

BOLT

0452215

$3.97

24

Filter, Air Cleaner

0453663

$9.52

25

Foam, Intake, Air Cleaner

0454620

$31.75

26

Gasket

0453484

$4.03

27

Duct, Outlet

0453332

$64.75

28

Cover, Air Cleaner

0453665

$40.46
