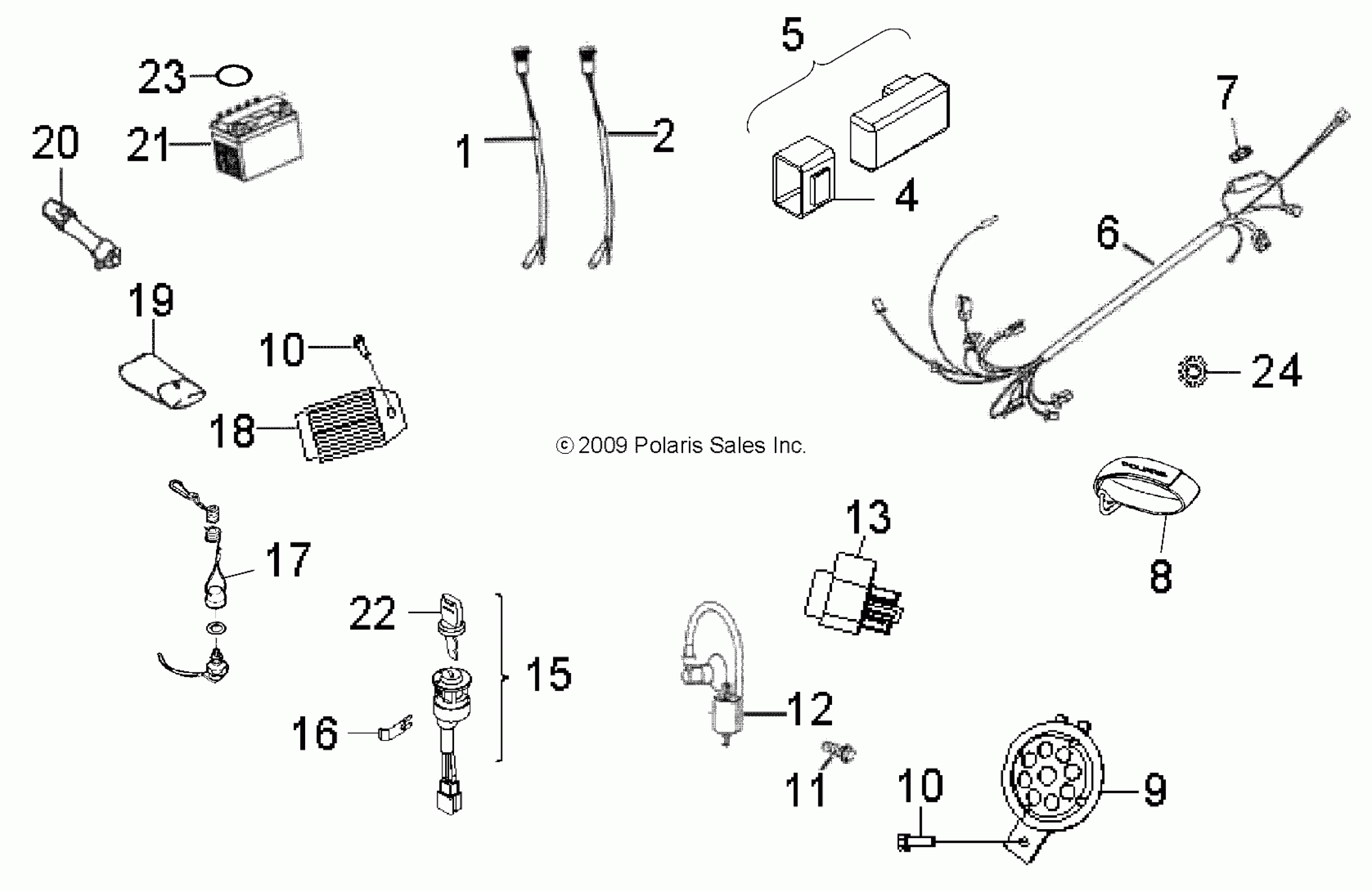

Polaris OUTLAW 90 - A13KA09AD/AF ELECTRICAL, SWITCHES, HARNESS and INDICATORS - A13KA09AD/AF (49ATVELECT12SP90) Diagram

#

Description
Price

1

INDICATOR, NEUTRAL

0454654

$23.99

2

INDICATOR, REVERSE

0454655

$27.99

4

PAD, RUBBER

0453473

$23.99

5

ASM., CDI UNIT [INCL. 4]

0454656

Unavailable

6

HARNESS, MAIN WIRE

0454904

$239.99

7

FUSE

0453523

$27.99

8

WRISTBAND

0453501

$22.23

9

HORN

0451695

$18.23

10

Bolt

0450701

$1.49

10

Bolt

0450701

$1.49

11

BOLT

0452763

$3.19

12

ASM., IGNITION COIL

0452309

$103.99

13

ASM, STARTER RELAY

0453488

$59.99

15

ASM., SWITCH, MAIN [INCL. 16,22]

0453487

Unavailable

16

CLIP, MAIN SWITCH

0450549

Unavailable

17

SWITCH, SAFETY

0451693

Unavailable

18

RECTIFIER/REGULATOR

0454003

$99.99

19

POUCH, TOOL

0454703

Unavailable

20

GAUGE, TIRE

0450891

Unavailable

21

BATTERY

4011181

$63.99

22

KEY, BLANK, RH

0453143

$13.59

22

KEY, BLANK, LH

0453372

$27.99

23

O-RING, LARGE

0453686

$3.19

24

WASHER, STAR

0450890

$3.19
