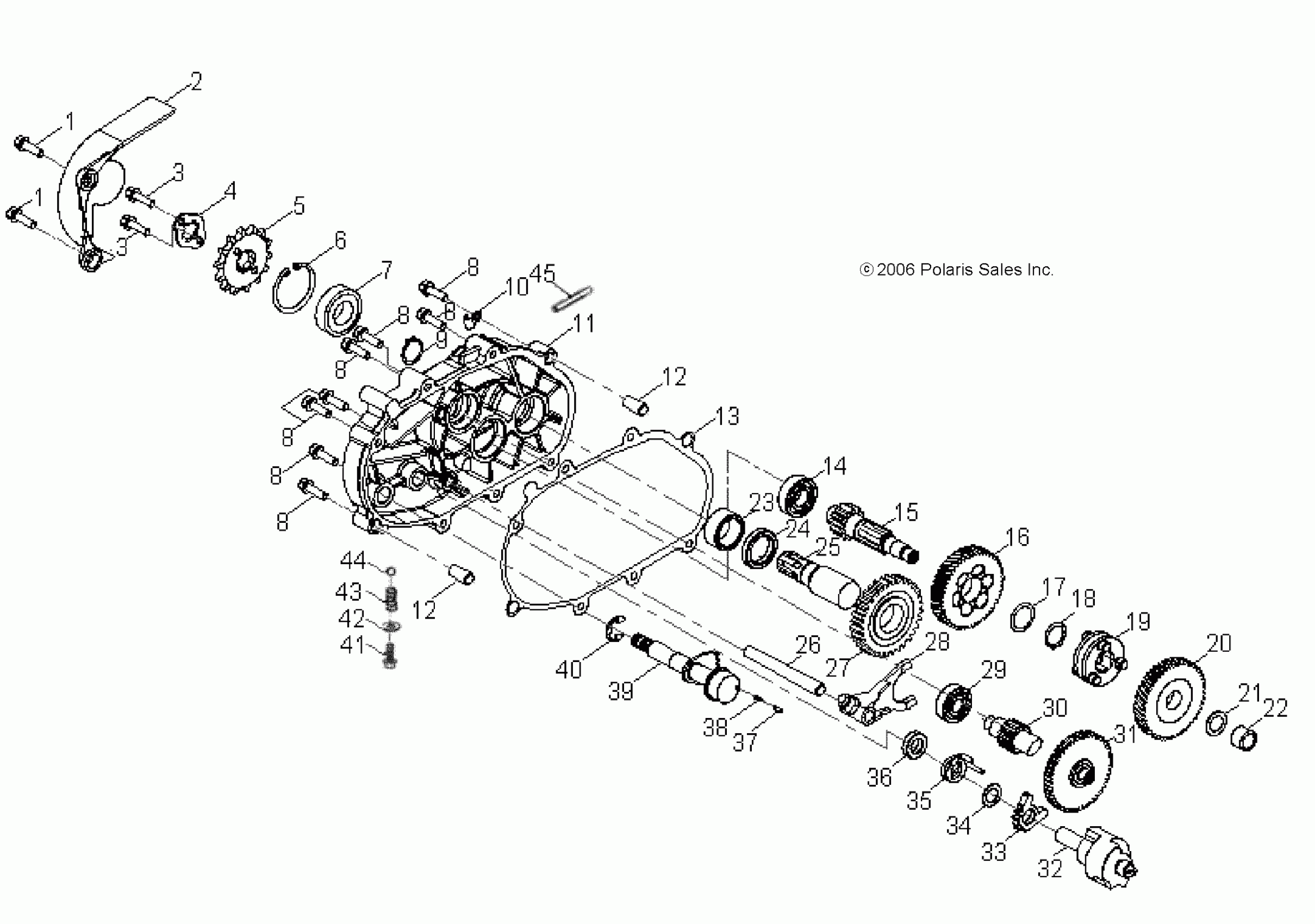

Polaris OUTLAW 90 - A13KA09AD/AF DRIVE TRAIN, TRANSMISSION - A13KA09AD/AF (49ATVTRANSMISSION07OTLW90) Diagram

#

Description
Price

1

BOLT

0453648

$3.17

1

BOLT

0453648

$3.17

2

ASM., SPROCKET COVER

0453650

$52.60

3

BOLT

0453505

$3.97

3

BOLT

0453505

$3.97

4

BRACKET, SPROCKET

0453458

$10.51

5

SPROCKET, DRIVE

0453457

$36.41

6

CIRCLIP

0450162

$5.56

7

BEARING, BALL

0454248

$37.99

8

BOLT

0452331

$3.97

8

BOLT

0452331

$3.97

8

BOLT

0452331

$3.97

8

BOLT

0452331

$3.97

8

BOLT

0452331

$3.97

8

BOLT

0452331

$3.97

8

BOLT

0452331

$3.97

9

CLIP, CIR

0452339

$3.97

10

RETAINER

0453585

$7.14

11

ASM., TRANSMISSION COVER

0453642

$256.49

12

PIN, DOWEL

0450142

$3.97

12

PIN, DOWEL

0450142

$3.97

13

GASKET, TRANSMISSION COVER

0453646

$13.75

14

BEARING

0452156

$15.87

15

SHAFT, TRANSMISSION

0453645

$117.37

16

ASM., REVERSE GEAR

0453312

$125.46

17

WASHER

0452152

$3.97

18

CIRCLIP

0450060

$3.97

19

RATCHET, SHIFT

0452151

$89.03

20

ASM., GEAR, SPUR

0453220

$97.13

21

WASHER

0452148

$3.97

22

Collar, Shaft

0452147

$10.32

23

BEARING

0450258

$63.49

24

SEAL, OIL

0450259

$6.46

25

SHAFT

0453643

$101.17

26

SHAFT, GEAR SHIFT

0452158

$8.89

27

GEAR

0453644

$105.22

28

FORK, SHIFT

0452157

$64.75

29

BEARING, BALL

0450254

$23.81

30

SHAFT, COUNTER

0452145

$64.75

31

GEAR, COUNTER

0452146

$80.94

32

ASM., DRUM, GEAR SHIFT [INCL. 33-36]

0452159

$209.99

33

DETENT

0453462

$209.99

34

WASHER

0453512

$209.99

35

SPRING, TRANSMISSION LEVER

0453463

$209.99

36

COLLAR, SHIFT

0453464

$209.99

37

ROLLER, DRUM SENSOR

0452163

$8.08

38

SPRING, DRUM SENSOR

0452162

$4.84

39

SPINDLE

0452160

$68.79

40

E-CLIP

0452161

$3.97

41

BOLT

0452137

$7.14

42

WASHER

0452136

$4.35

43

SPRING, DETENT

0452135

$1.59

44

BALL, STEEL

0452134

$5.65

45

TUBE, BREATHER

0453640

Unavailable
