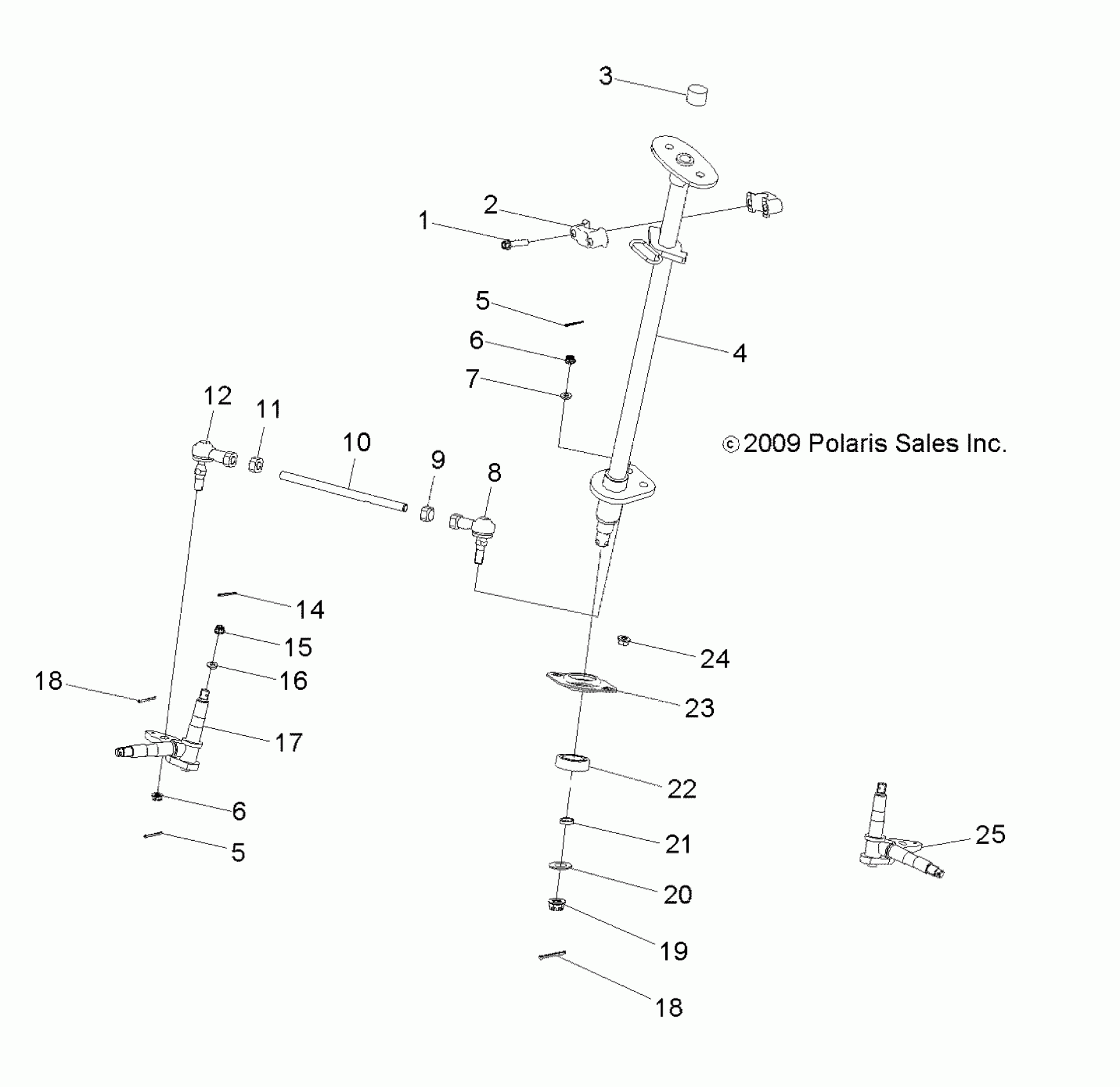

Polaris OUTLAW 90 - A10KA09AB/AD STEERING, STEERING POST and TIE ROD ASM. - A10KA09AB/AD (49ATVSTEERING10OTLW90) Diagram

#

Description
Price

1

BOLT

0453730

$7.19

2

Clamp, Steering Post

0454709

Unavailable

3

SLEEVE, STEERING

0450499

$11.19

4

Post, Steering, Black

0454613-067

Unavailable

5

PIN, COTTER

0453819

$3.19

5

PIN, COTTER

0453819

$3.19

6

NUT, LOCK

0453820

$9.59

6

NUT, LOCK

0453820

$9.59

7

WASHER, SPRING

0453809

$4.79

8

INNER ROD END (MALE)

0454629

$71.99

9

NUT, TIE ROD, LH

0454749

$4.79

10

TIE ROD (FOR MALE TIE ROD ENDS)

0454751

$43.99

11

NUT, TIE ROD, RH

0454750

$4.79

12

OUTER ROD END (MALE)

0454630

$71.99

14

PIN, COTTER

0450719

Unavailable

15

NUT

0450502

$9.59

16

WASHER

0453513

$4.79

17

KNUCKLE, LH

0453554

$111.99

18

PIN, COTTER

0450395

$3.19

18

PIN, COTTER

0450395

$3.19

19

NUT

0453502

$9.59

20

WASHER

0452671

$3.99

21

SPACER

0452719

$8.79

22

BEARING, BALL

0453978

$39.99

23

FLANGETTE

0453494

$19.99

24

NUT

0453866

$1.59

25

KNUCKLE, RH

0453555

$111.99
