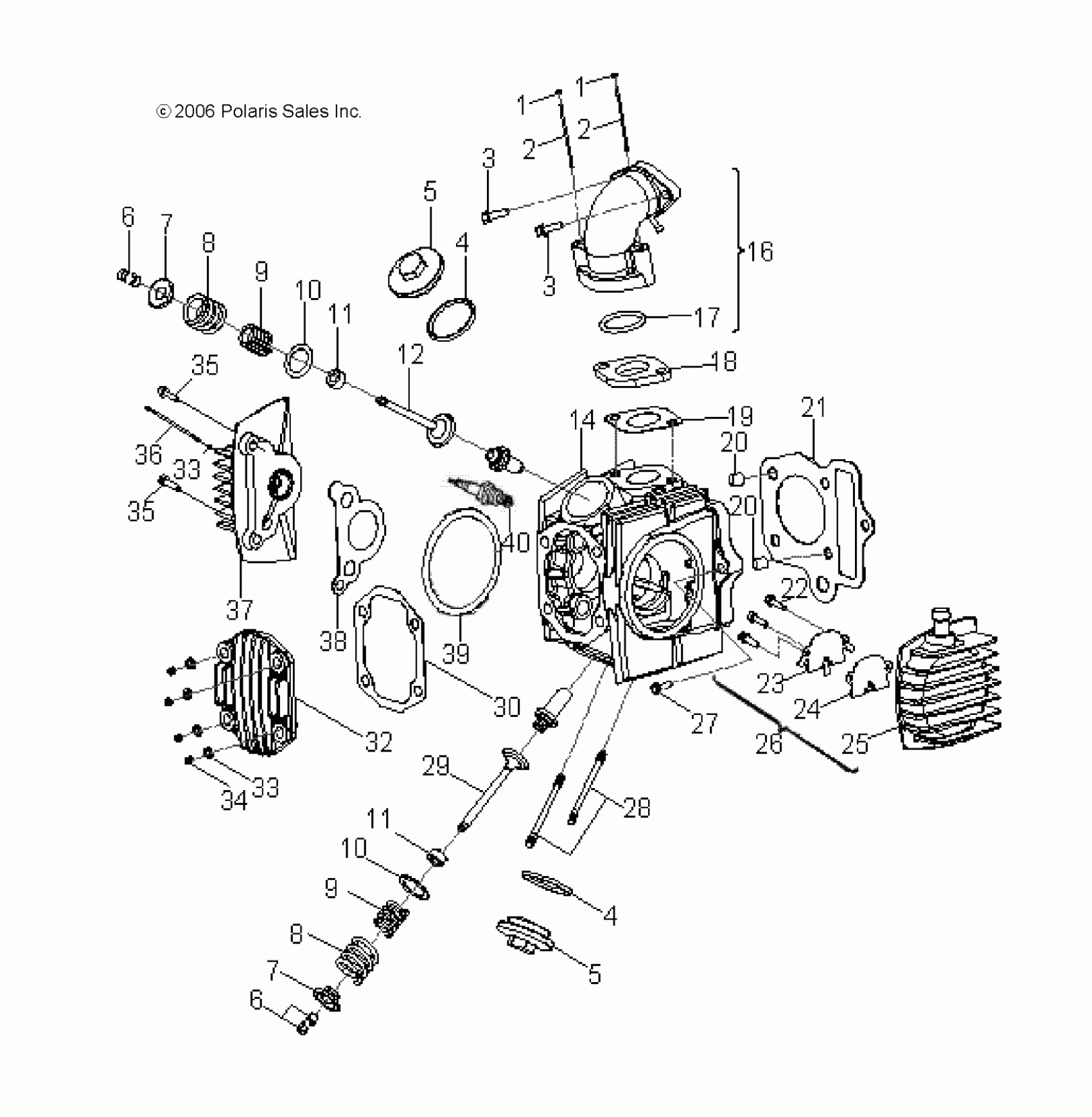

Polaris OUTLAW 90 - A10KA09AB/AD ENGINE, CYLINDER HEAD - A10KA09AB/AD (49ATVCYLINDERHD09SP90) Diagram

#

Description
Price

-

Asm., Engine

0454772

Unavailable

1

NUT

0450880

$3.97

1

NUT

0450880

$3.97

2

STUD

0453573

$4.76

2

STUD

0453573

$4.76

3

Bolt

0453520

$3.97

3

Bolt

0453520

$3.97

4

O-RING

0452371

$1.99

4

O-RING

0452371

$1.99

5

Cap, Valve

0454675

$36.41

5

Cap, Valve

0454675

$36.41

6

CLIP, RETAINER

0452389

$8.54

6

CLIP, RETAINER

0452389

$8.54

7

RETAINER, VALVE SPRING

0453443

$29.99

7

RETAINER, VALVE SPRING

0453443

$29.99

8

Spring, Valve, Inner

0453442

$9.70

8

Spring, Valve, Inner

0453442

$9.70

9

SPRING, VALVE, OUTER

0453441

$9.70

9

SPRING, VALVE, OUTER

0453441

$9.70

10

SEAT, VALVE SPRING, OUTER

0453444

$7.27

10

SEAT, VALVE SPRING, OUTER

0453444

$7.27

11

SEAL, VALVE

0453426

$13.75

11

SEAL, VALVE

0453426

$13.75

12

Valve, Intake

0453439

$64.99

14

Head, Cylinder

0453897

Unavailable

16

Asm., Manifold, Intake [Incl. 17]

0454677

Unavailable

17

O-RING

0453563

$1.60

18

INSULATOR, MANIFOLD

0453449

$12.94

19

GASKET, MANIFOLD

0453451

$5.65

20

PIN, DOWEL

0452342

$3.97

20

PIN, DOWEL

0452342

$3.97

21

GASKET, CYLINDER HEAD

0453427

$20.22

22

SCREW

0451766

$3.17

23

BREATHER, CRANKCASE, LOWER

0453581

$4.84

24

GASKET-CYLINDER,DIVIDE PLATE

0455343

$13.75

25

Cover, Cylinder Head, Small, LH

0454678

$44.51

26

Asm., Cylinder Head, Small, LH

0453582

$60.70

27

Bolt

0453520

$3.97

28

STUD

0453504

$4.76

29

VALVE, EXHAUST

0453440

$69.99

30

GASKET-COVER,CYLINDER HEAD

0455337

$8.08

32

Cover, Cylinder Head

0454680

$40.46

33

Washer

0453510

$3.97

33

Washer

0453510

$3.97

34

Nut

0453553

$4.76

35

BOLT

0453519

$3.97

35

BOLT

0453519

$3.97

36

BOLT

0453723

$5.56

37

Cover, Head, RH

0454681

$40.46

38

GASKET, COVER, CYLINDER HEAD, RH

0453539

$4.84

39

GASKET-COVER,CYL HEAD,LH

0455339

$4.84

40

PLUG, SPARK

0453034

$3.97
