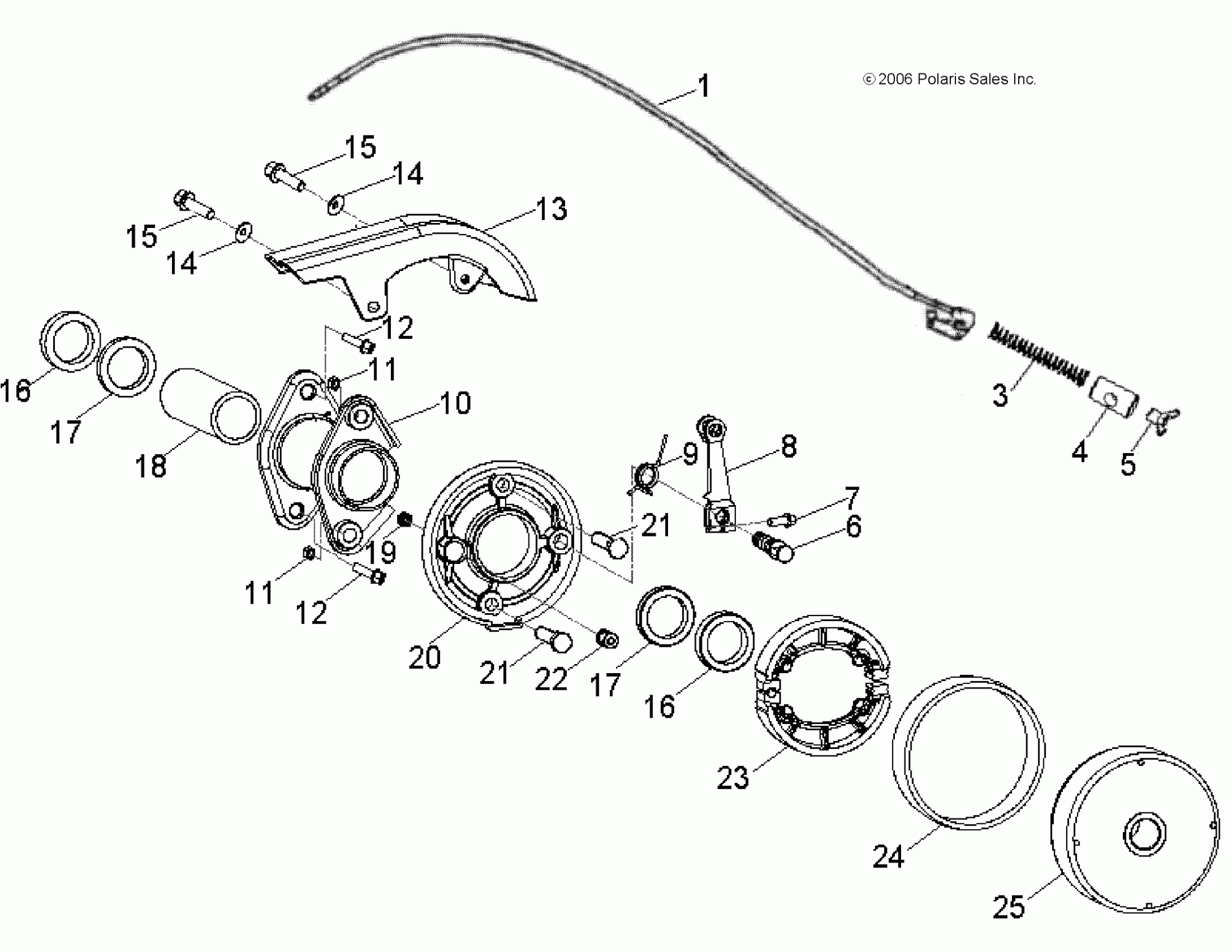

Polaris OUTLAW 90 - A10KA09AB/AD BRAKES, REAR - A10KA09AB/AD (49ATVBRAKERR08OUT90) Diagram

#

Description
Price

1

CABLE, BRAKE, REAR

0454015

$56.99

3

SPRING, CABLE, REAR

0450435

$4.84

4

NUT, ADJUST, BRAKE

0451079

$5.56

5

SPACER, BRAKE CABLE, REAR

0453094

$3.97

6

SHAFT, CAM, REAR

0450431

$32.37

7

BOLT

0450433

$3.97

8

ARM, BRAKE, REAR

0454033

$28.32

9

SPRING

0450453

$4.84

10

Housing, Axle, Rear, Silver

0451683-385

$104.37

11

NUT, HEX, FLANGE

0453706

$4.76

11

NUT, HEX, FLANGE

0453706

$4.76

12

BOLT

0453707

$3.17

12

BOLT

0453707

$3.17

13

COVER, SPROCKET, REAR

0454264

$66.49

14

WASHER

0452198

$3.17

14

WASHER

0452198

$3.17

15

BOLT

0452030

$4.76

15

BOLT

0452030

$4.76

16

Seal, Oil

0450430

$16.17

16

Seal, Oil

0450430

$16.17

17

BEARING

0454032

$43.65

17

BEARING

0454032

$43.65

18

Tube, Spacer

0450428

$40.46

19

NUT

0450881

$4.76

20

PLATE, BRAKE, REAR

0454707

$79.99

21

BOLT

0450452

$7.14

21

BOLT

0450452

$7.14

22

SHAFT, FIXED, BRAKE, REAR

0450854

$14.56

23

SHOE, BRAKE, REAR

0450434

$33.24

24

Rubber, Protective

0450442

$9.70

25

Drum, Brake, Rear

0454708

$128.24
