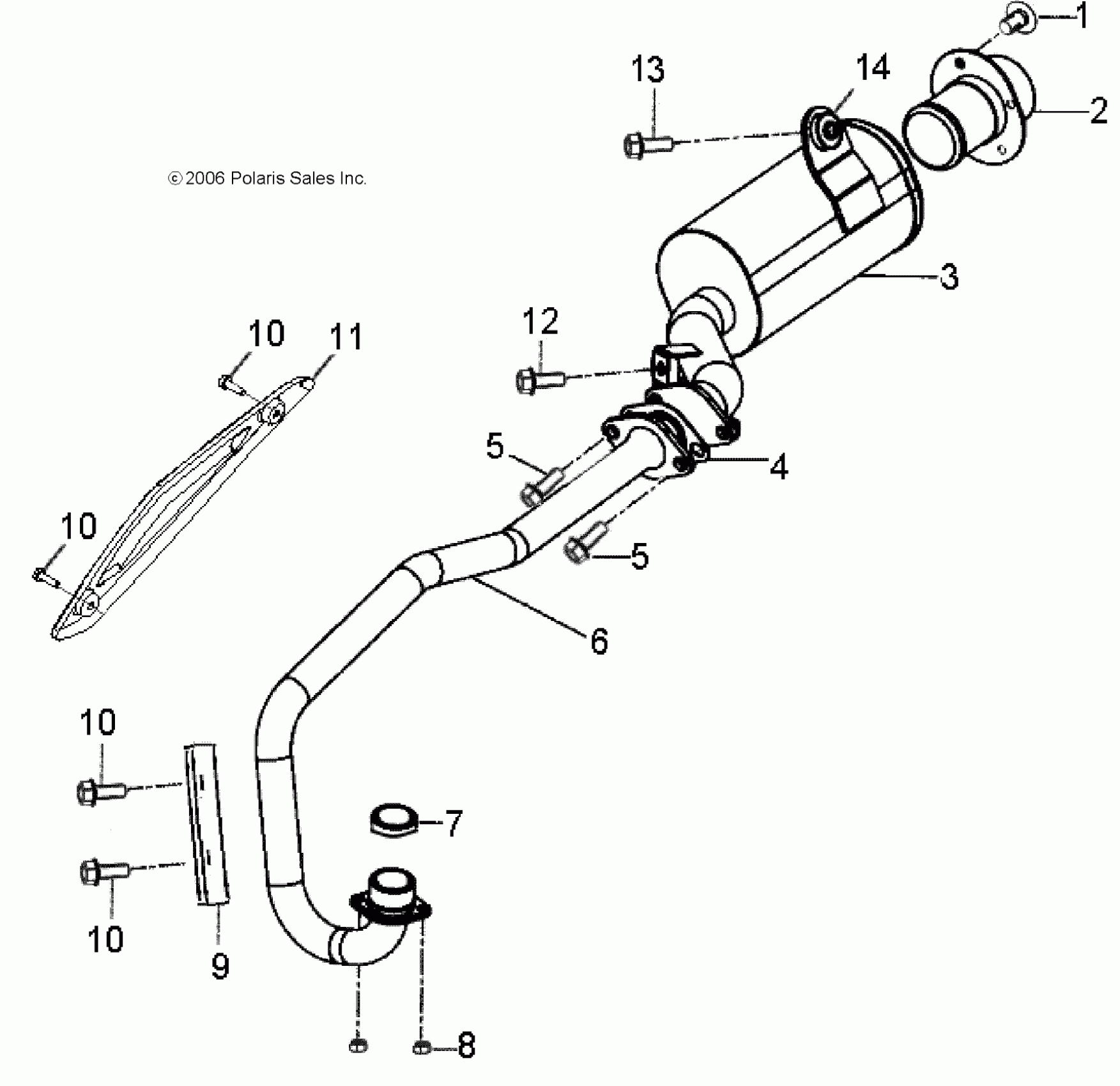

Polaris OUTLAW 90 - A08KA09AB/AC/AD ENGINE, EXHAUST - A08KA09AB/AC/AD (49ATVEXHAUST08OUT90) Diagram

#

Description
Price

1

BOLT

0453130

Unavailable

2

ARRESTER, SPARK

0453360

$76.89

3

Silencer, Pipe

0453668

Unavailable

4

GASKET, EXHAUST

0453710

$6.64

5

BOLT

0452123

$4.35

5

BOLT

0452123

$4.35

6

Pipe, Exhaust, Front [AB][AD]

0453671

Unavailable

6

Pipe, Exhaust, Front [AC]

0454100

Unavailable

7

GASKET

0453672

$8.08

8

NUT

0450880

$3.97

9

Shield, Exhaust, Lower, LE [AC]

0454101

Unavailable

10

Bolt w/Lock Washer

0454116

$5.56

10

Bolt w/Lock Washer

0454116

$5.56

10

Bolt w/Lock Washer

0454116

$5.56

10

Bolt w/Lock Washer

0454116

$5.56

11

SHIELD, EXHAUST

0453670

$44.99

12

BOLT

0453669

$4.76

13

Bolt

0453667

$5.56

14

WASHER, EXHAUST

0453810

$3.17
