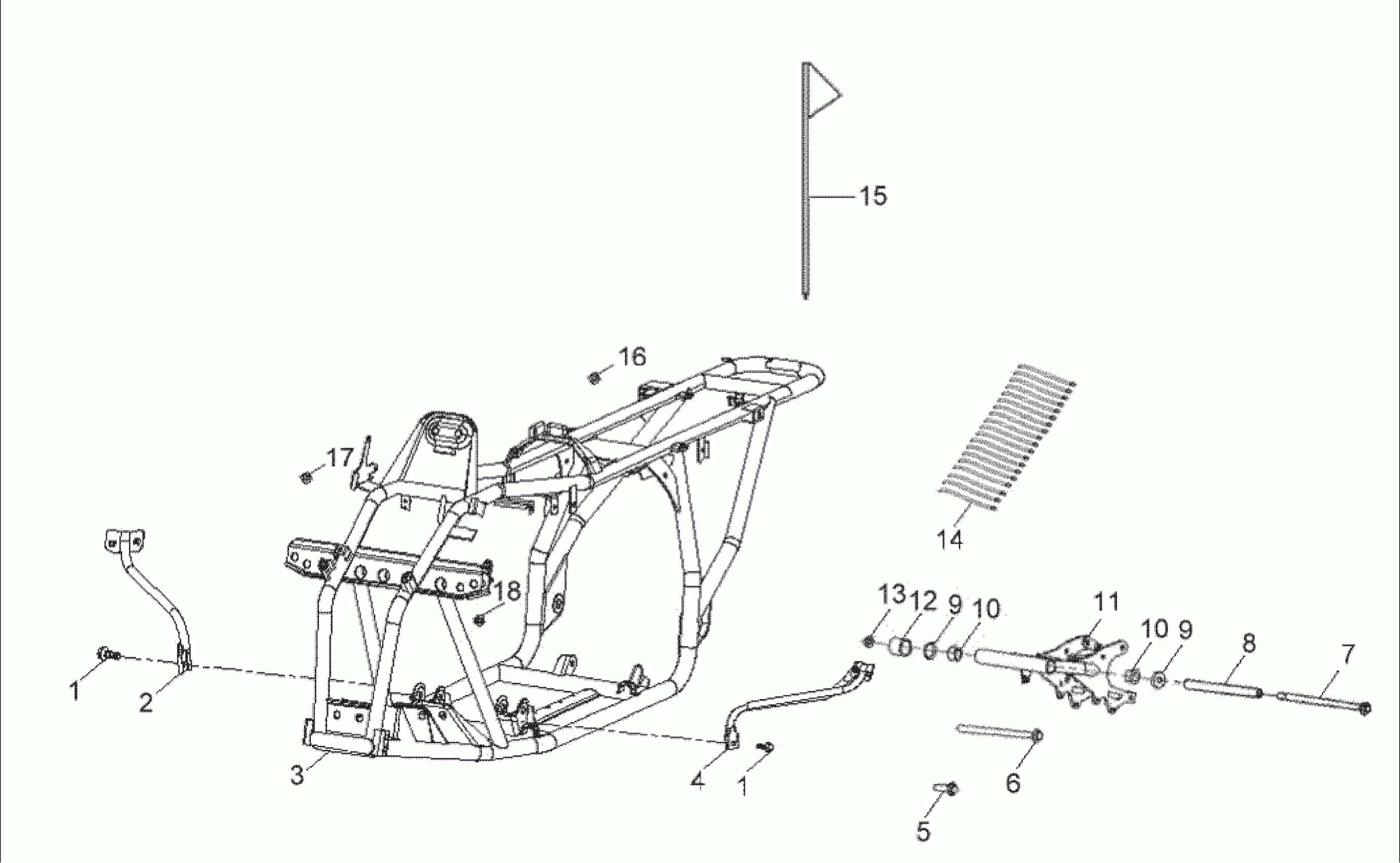

Polaris OUTLAW 90 - A08KA09AB/AC/AD CHASSIS, FRAME - A08KA09AC (49ATVFRAME08OUT90AC) Diagram

#

Description
Price

1

BOLT

0450887

$3.97

1

BOLT

0450887

$3.97

2

Bracket, Fender, Front, RH, Black

0454093-067

$40.48

3

Asm., Frame, Black

0454094-067

$661.89

4

Bracket, Fender, Front, LH, Black

0454092-067

$54.27

5

BOLT

0453675

$5.56

6

BOLT

0453676

$7.14

7

BOLT

0453811

$31.75

8

TUBE, SPACER

0453495

$44.51

9

COVER, SWING ARM

0450303

$11.32

9

COVER, SWING ARM

0450303

$11.32

10

SEAT, GREASE

0450302

$6.35

10

SEAT, GREASE

0450302

$6.35

11

Arm, Swing, Silver

0454099-385

$204.99

12

SLEEVE, RUBBER

0453678

$5.65

13

NUT

0450878

$10.32

14

STRAP

0450559

$2.41

15

Flag

2872428

$44.51

16

NUT

0450268

$0.79

17

Nut

0450882

$1.59

18

NUT

0450282

$3.17
