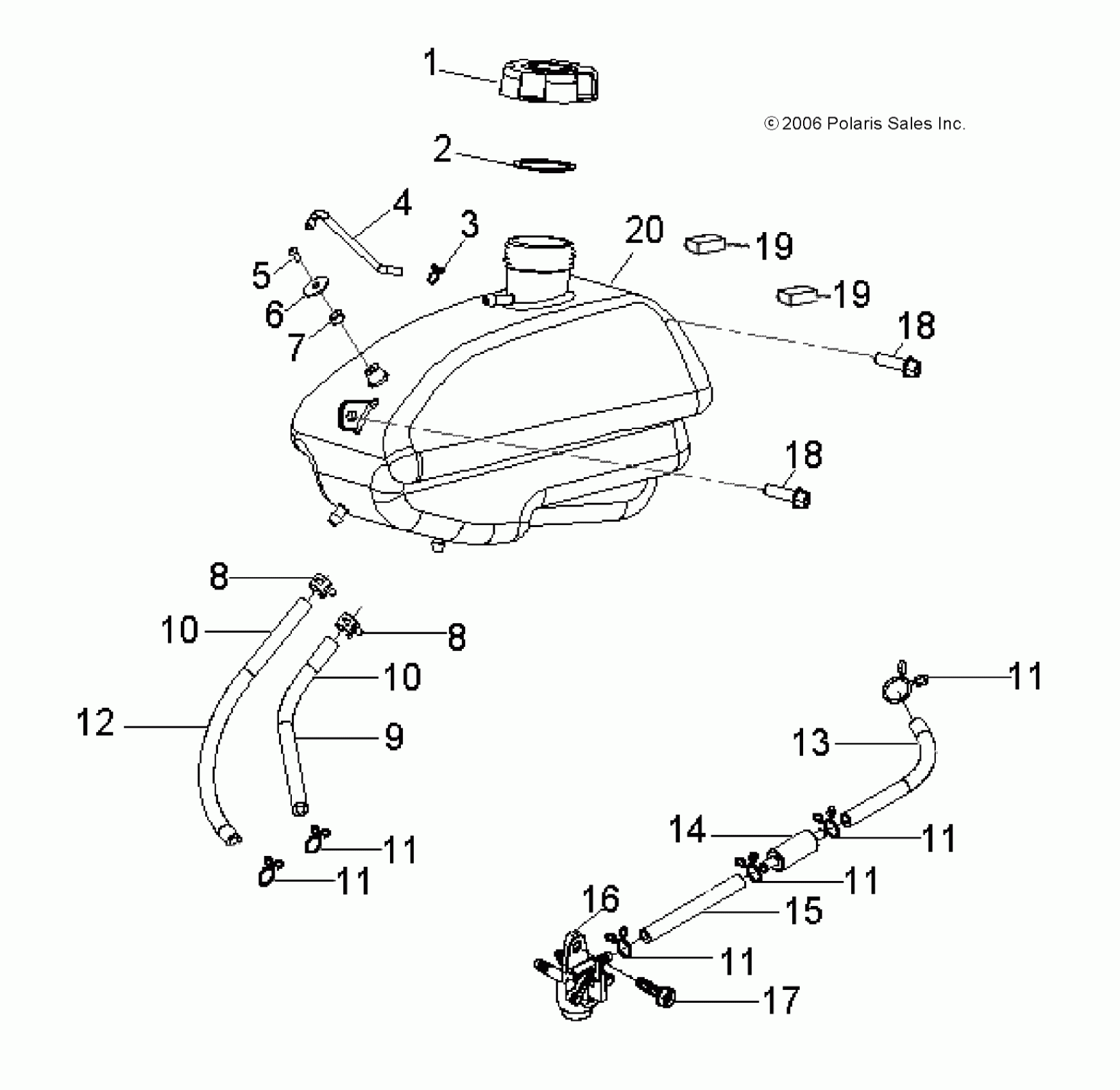

Polaris OUTLAW 90 - A08KA09AB/AC/AD BODY, FUEL TANK ASM. - A08KA09AB/AC/AD (49ATVFUEL07OTLW90) Diagram

#

Description
Price

1

CAP, FUEL [INCL. 2]

0453691

$27.99

2

GASKET, FUEL CAP

0453692

$5.59

3

CLAMP

0453944

$3.99

4

HOSE, VENT

0454031

$27.99

5

SCREW

0453699

$3.19

6

WASHER

0452913

$3.99

7

SPACER

0453698

$3.99

8

CLAMP

0453693

$4.79

8

CLAMP

0453693

$4.79

9

HOSE, FUEL, W/SLEEVE

0454124

$27.99

10

Sleeve, Hose, Fuel

0453946

$1.83

10

Sleeve, Hose, Fuel

0453946

$1.83

11

Clip

0450054

$1.49

11

Clip

0450054

$1.49

11

Clip

0450054

$1.49

11

Clip

0450054

$1.49

11

Clip

0450054

$1.49

11

Clip

0450054

$1.49

12

HOSE, FUEL, W/SLEEVE

0454123

$35.99

13

Hose, Fuel

0454026-130

Unavailable

14

FILTER, FUEL

0453695

Unavailable

15

Hose, Fuel

0454026-090

Unavailable

16

VALVE, FUEL

0450366

$39.99

17

Bolt

0450701

$1.49

18

Bolt

0450340

Unavailable

18

Bolt

0450340

Unavailable

19

ADHESIVE, ELECTRIC WIRE

0453696

$3.19

19

ADHESIVE, ELECTRIC WIRE

0453696

$3.19

20

Tank, Fuel

0453328

$127.99
