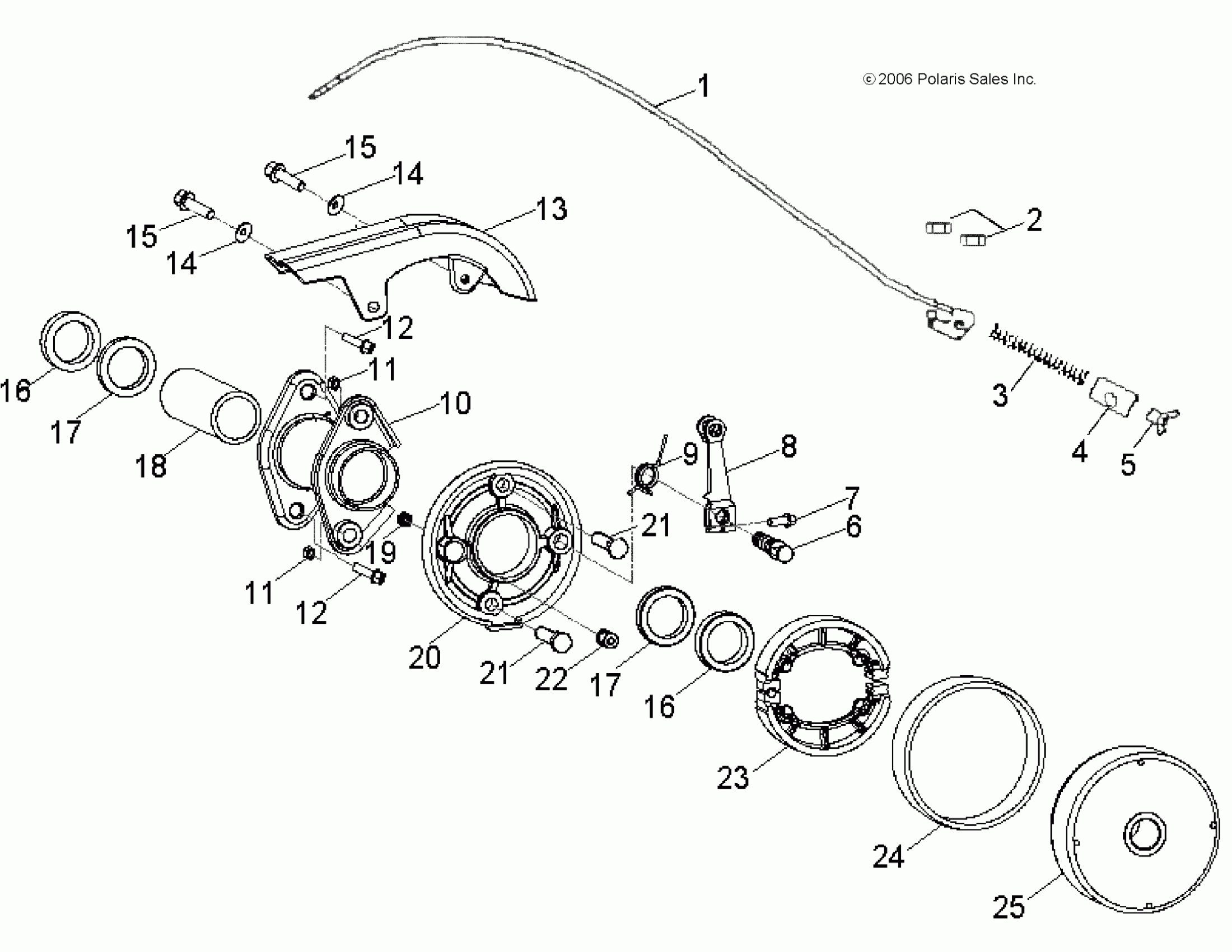

Polaris OUTLAW 90 - A07KA09AA/AB/AD BRAKE, REAR - A07KA09AA/AB/AD (49ATVBRAKERR07OTLW90) Diagram

#

Description
Price

1

Cable, Brake, Rear

0453879

Unavailable

2

NUT

0450268

$1.49

3

SPRING, CABLE, REAR

0450435

$4.79

4

NUT, ADJUST, BRAKE

0451079

$5.59

5

SPACER, BRAKE CABLE, REAR

0453094

$3.99

6

SHAFT, CAM, REAR

0450431

$31.99

7

BOLT

0450433

$3.99

8

ARM, BRAKE, REAR

0454033

$27.99

9

SPRING

0450453

$4.79

10

Housing, Axle, Rear, Silver

0451683

Unavailable

11

NUT, HEX, FLANGE

0453706

$4.79

11

NUT, HEX, FLANGE

0453706

$4.79

12

BOLT

0453707

$3.19

12

BOLT

0453707

$3.19

13

COVER, SPROCKET, REAR

0454264

$55.99

14

WASHER

0452198

$3.19

14

WASHER

0452198

$3.19

15

BOLT

0452030

$4.79

15

BOLT

0452030

$4.79

16

Seal, Oil

0450430

$15.99

16

Seal, Oil

0450430

$15.99

17

Bearing

0450429

$47.99

17

Bearing

0450429

$47.99

18

Tube, Spacer

0450428

$35.99

19

NUT

0450881

$4.79

20

PLATE, BRAKE, REAR

0450440

$63.99

21

BOLT

0450452

$7.19

21

BOLT

0450452

$7.19

22

SHAFT, FIXED, BRAKE, REAR

0450854

$14.39

23

SHOE, BRAKE, REAR

0450434

Unavailable

24

Rubber, Protective

0450442

$9.59

25

DRUM, BRAKE, REAR

0450441

Unavailable
