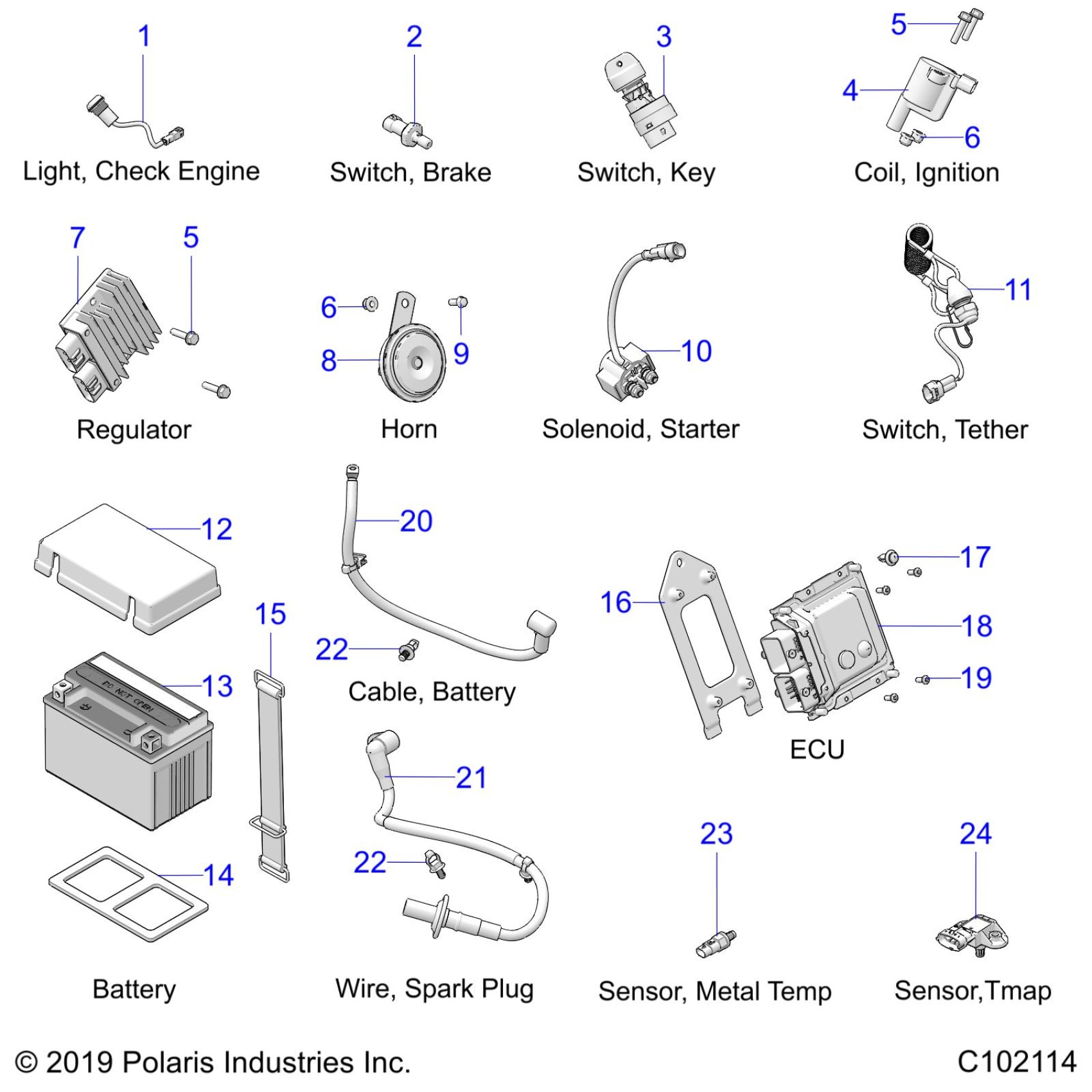

Polaris OUTLAW 70 (R07) - A21HBB07A3/A7/B3/B7 ELECTRICAL, COMPONENTS - A21HBB07A3/A7/B3/B7 (C102114) Diagram

#

Description
Price

1

ASM-LIGHT,CHECK ENGINE

2414969

$14.39

2

SWITCH-BRK,M10X1.25,SGL,NO RES

4017278

Unavailable

3

SWITCH-KEY,3 POS,SEALED

4017237

$51.99

4

COIL-IGNITION,SINGLE,W/DIODE

4015072

$134.99

5

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

5

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

6

NUT-M6 FLANGE,NYLOC

7547274

$1.49

6

NUT-M6 FLANGE,NYLOC

7547274

$1.49

7

REGULATOR-3PH,SH846

4018820

$127.99

8

HORN-DISC

4018821

$95.99

9

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

10

SOLENOID-STARTER [INCL. BOOT]

4018620

$43.99

10

BOOT-SOLENOID MNT

5416078

$5.59

11

SWITCH-TETHER

4018594

$147.99

12

COVER-BATTERY

5453652

$27.99

13

BATTERY-SEALED,8AH,DTX9-BS

4017286

Unavailable

14

GASKET-BATTERY CAP

5416089

$3.59

15

STRAP-BATTERY HOLD DOWN

5416090

$8.79

16

MNT-ECM,REAR,BLK

5438708-070

$10.39

17

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

18

ECU-BASE,M17

4012838

$440.69

19

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

20

CABLE-BATTERY/SOLENOID [INCL. 22]

4018688

$55.99

21

WIRE-SPARKPLUG [INCL. 22]

4018723

$51.99

22

CLIP-ROUTING

7082599

Unavailable

22

CLIP-ROUTING

7082599

Unavailable

23

SENSOR-METAL TEMP,ARROW

4016513

$35.99

24

SENSOR-TMAP DSS3-TF

2411528

$93.08
