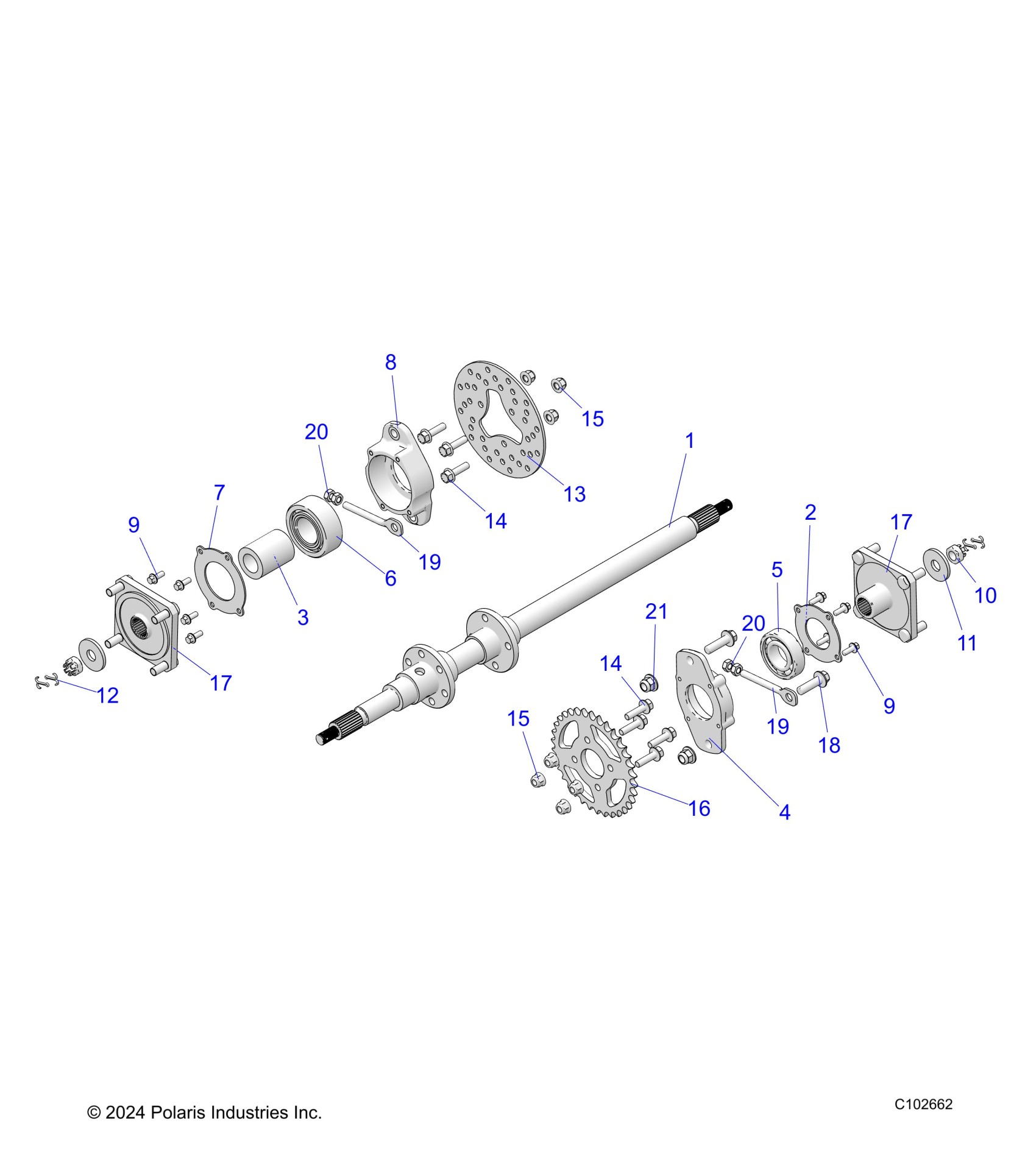

Polaris OUTLAW 70 (R03) - A23HBB07B3/B7 SUSPENSION, REAR AXLE,BEARING, DISC AND HUB - A23HBBO7B3/B7 (C102662) Diagram

#

Description
Price

1

WELD-AXLE,REAR

1025361

$167.99

2

BRKT-BEARING RETAINER,LH

5268664

$27.99

3

TUBE-AXLE SPACER

5342229

$13.59

4

HOUSING-AXLE BEARING

5634421

$75.99

5

BEARING-WHEEL,6206-2RS

3514995

$23.99

6

BEARING-WHEEL,3207-2RS

3515158

$31.99

7

BRKT-BEARING RETAINER,RH

5268309

$27.99

8

HOUSING-AXLE BEARING

5634359

$75.99

9

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

9

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

10

NUT-M14X1.5,CASTLE

7547859

$7.19

11

WASHER-15X42X4MM-Y

7557193

$3.19

12

PIN-3/32X1-COTTER-Y

7661203

$1.49

13

DISC-BRAKE-154X3.5MM

5268295

$75.99

14

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

14

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

SPROCKET-DRIVEN

3222328

$131.99

17

ASM-HUB,REAR

1525328

$47.99

17

ASM-HUB,REAR

1525328

$47.99

18

SCR-HXFL-M10X1.5X35 8.8 ZPC

7518644

$4.79

19

SCR-EYELET-M8X1.25X63 10.9 ZFB

7521181

$3.19

19

SCR-EYELET-M8X1.25X63 10.9 ZFB

7521181

$3.19

20

NUT-HEX-M8X1.25 10 ZFC

7547998

$3.99

20

NUT-HEX-M8X1.25 10 ZFC

7547998

$3.99

21

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39
