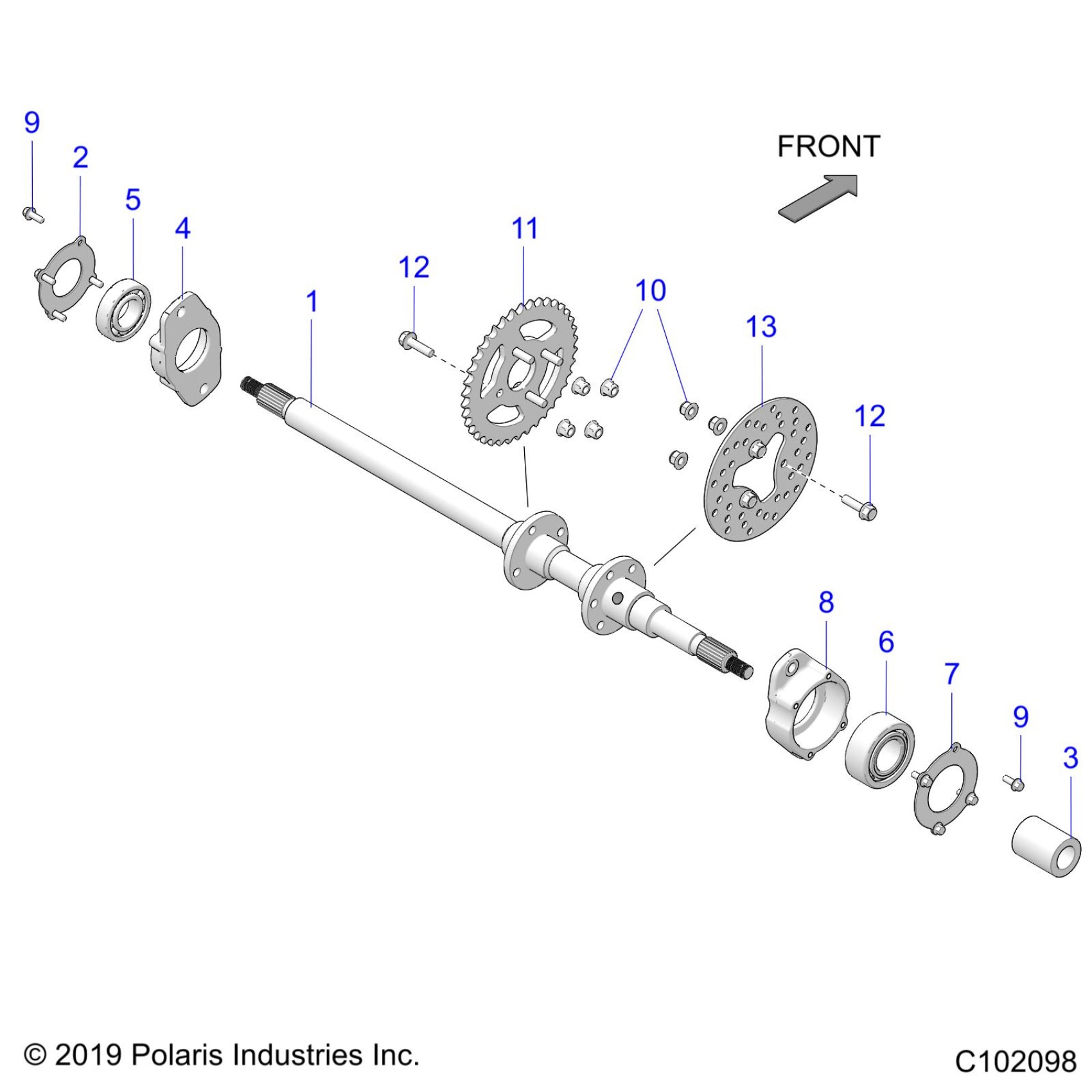

Polaris OUTLAW 70 (R03) - A23HBB07B3/B7 DRIVE TRAIN, REAR AXLE - A23HBBO7B3/B7 (C102098) Diagram

#

Description

Price

1

WELD-AXLE,REAR

1025361

$167.99

2

BRKT-BEARING RETAINER,LH

5268664

$27.99

3

TUBE-AXLE SPACER

5342229

$13.59

4

HOUSING-AXLE BEARING

5634421

$75.99

5

BEARING-WHEEL,6206-2RS

3514995

$23.99

6

BEARING-WHEEL,3207-2RS

3515158

$31.99

7

BRKT-BEARING RETAINER,RH

5268309

$27.99

8

HOUSING-AXLE BEARING

5634359

$75.99

9

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

9

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

SPROCKET-DRIVEN

3222328

$131.99

12

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

12

SCREW-HXFL-M8X1.25X30 10.9 ZPB

7518884

$1.99

13

DISC-BRAKE-154X3.5MM

5268295

$75.99
