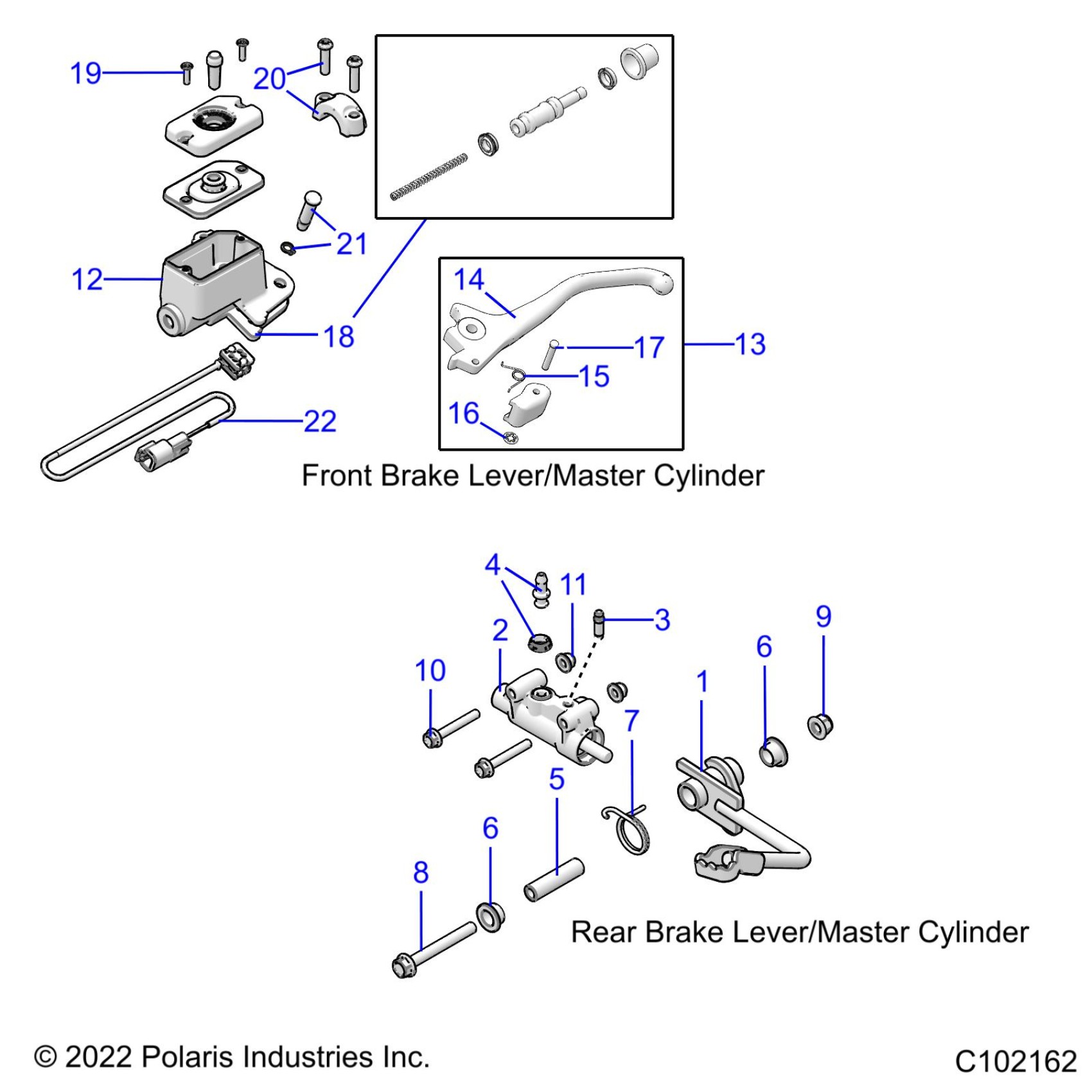

Polaris OUTLAW 70 (R03) - A23HBB07B3/B7 BRAKES, BRAKE LEVERS and MASTER CYLINDERS - A23HBBO7B3/B7 (C102162) Diagram

WELD-LEVER,BRAKE LEVER.BLK

1025207-458

$47.99

ASM-MASTER CYL,DIRMC,5/8 [INCL. 2-4]

1913506

$47.99

BLEEDER SCREW, 4WD

7080352

$3.19

K-SVC, M/C NIPPLE & GROMMET

2208174

$14.39

TUBE-PIVOT

5342111

$6.39

BUSHING, PIVOT, PEDAL

5433189

$3.99

BUSHING, PIVOT, PEDAL

5433189

$3.99

SPRING-RETURN

7045421

$6.39

SCR-HXFL-M8X1.25X70 8.8 ZOD

7521237

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-HXFL-M6X1.0X45 8.8 ZOD

7519257

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

ASM-MASTER CYL,HBMC,13.5MM,YKG [INCL. 12-21]

2010479

$127.99

K-SVC,LEVER,PARK LATCH ASM [INCL. 14-17]

2208179

$91.99

LEVER-BRAKE,ALUM 6061 T6

5634362

$47.99

SPRING-TORSION,PARK LOCK,HBMC

7045370

$7.19

WSHR-LOCK,6T,11.2X4.6X.254,ZY

7557198

$3.19

PIN-PARK LOCK

7662421

$2.39

K-SVC,PISTON,RES BODY ASM [INCL. BODY, PISTON, SEALS, SPRING]

2208178

$51.99

SCR-FLHDTX-#10X24X.450 8.8 SPC

7521157

$3.99

K-SVC,CLAMP,SCREWS

2208413

$11.19

K-SVC,PIVOT PIN,SNAP RING

2208175

$3.99

ASM-SWITCH,STOP LIGHT

2415321

$39.99
