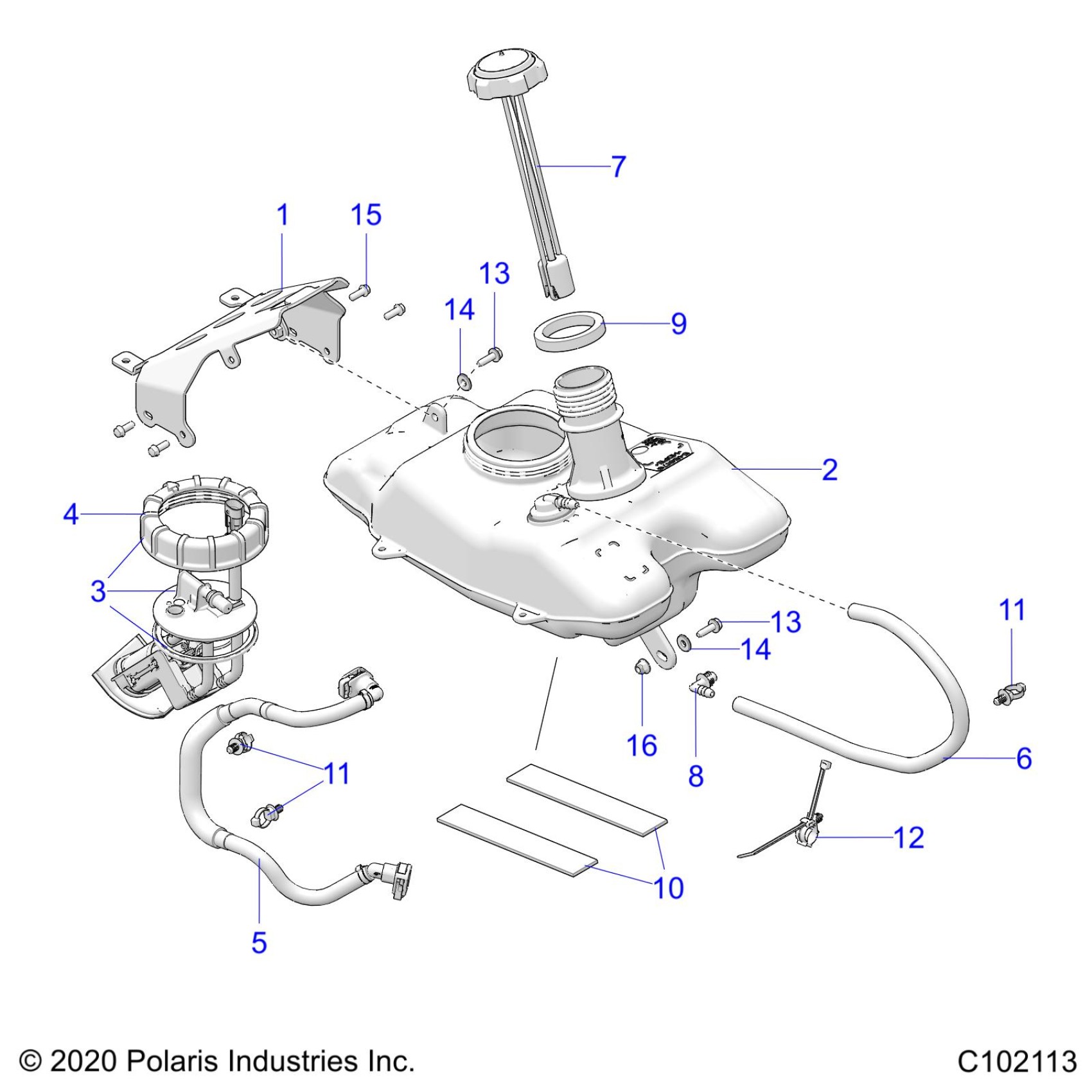

Polaris OUTLAW 70 (R02) - A24HBB07B6/B7 FUEL SYSTEM, FUEL TANK ASM. - A24HBBO7B6/B7 (C102113) Diagram

WELD-SEAT BASE,TANK,BLK

1025032-458

$55.99

ASM-FUEL TANK W/PUMP [INCL. 2-4]

2522169

$334.39

K-FUEL PUMP [INCL. GASKET AND NUT]

2208422

$360.79

NUT-MASON JAR

5437138

$35.99

ASM-FUEL LINE

2522170

$55.99

ASM-RO VALVE TO FRAME

2522182

$39.99

CAP-GAS W/GAUGE,241MM

2884214

$51.99

FITTING-VENT LINE,RND,90,1/4"

5453906

$4.66

SEAL-FOAM,FUEL FILL NECK

5814872

$7.99

PAD-FOAM

5814903

$3.19

CLIP-ROUTING

7082599

$26.39

CLIP-ROUTING

7082599

$26.39

STRAP-PANDUIT,DOUBLE,LOOP,CLIP

7082650

$5.59

SCR-TFHFL-M6X1.0X20 S/R ZOD [INCL. 13,14]

7519278

$4.79

SCR-TFHFL-M6X1.0X20 ZOD

7519279

$10.39

SCR-TFHFL-M6X1.0X20 S/R ZOD [INCL. 13,14]

7519278

$4.79

SCR-TFHFL-M6X1.0X20 ZOD

7519279

$10.39

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
