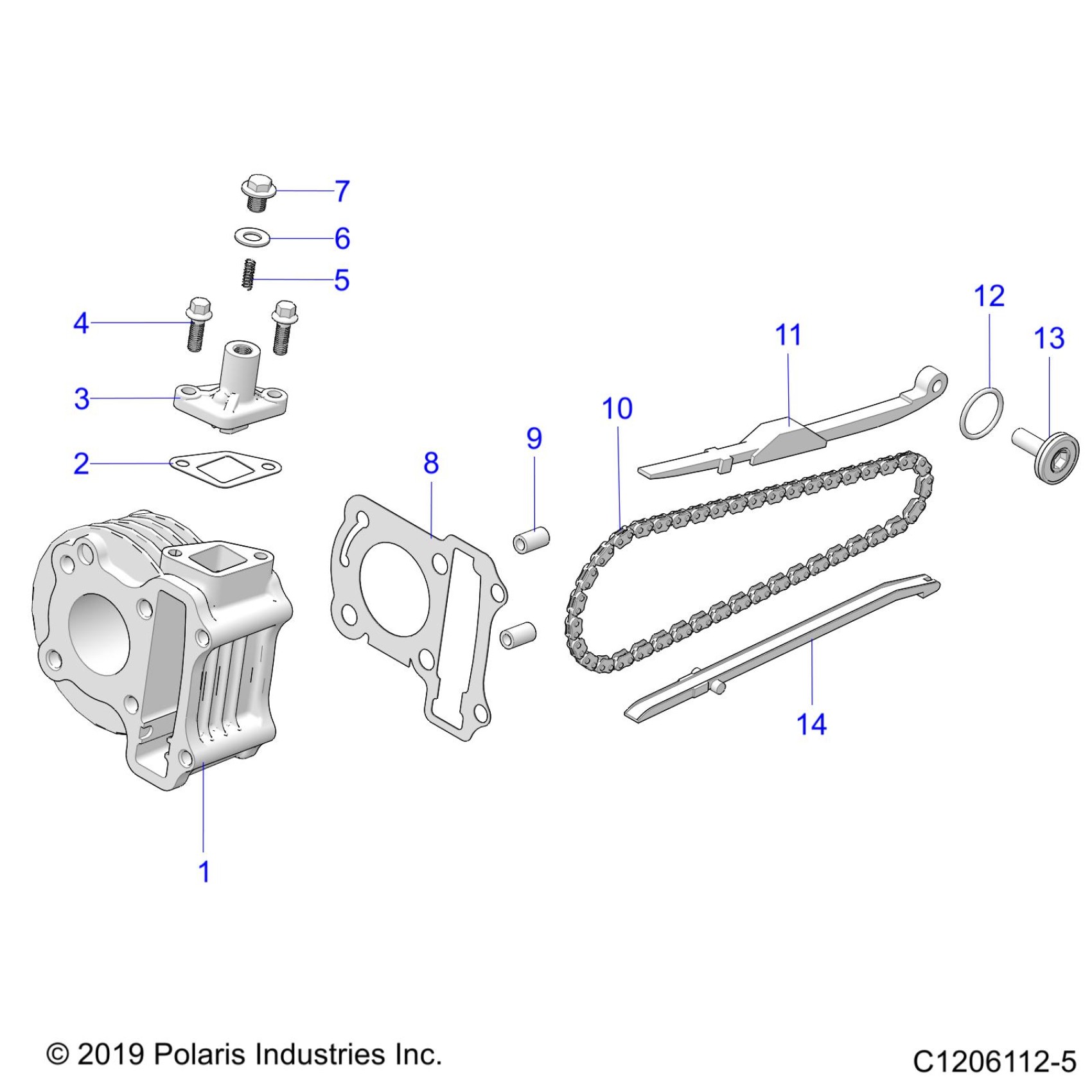

Polaris OUTLAW 70 (R02) - A24HBB07B6/B7 ENGINE, CYLINDER - A24HBBO7B6/B7 (C1206112-5) Diagram

#

Description

Price

1

ASSEMBLY, CASE, CYLINDER

3023851

$51.99

2

SEAL, CAMCHAIN TENSIONER

3023852

$4.79

3

CAMCHAIN TENSIONER

3023853

$4.79

4

HEXAGON FLANGE BOLTS M16X18

3050327

$3.99

5

SPRING, ADJUSTER

3023854

Unavailable

6

GASKET �8

3023855

Unavailable

7

BOLT, M8 SPECIAL

3023856

Unavailable

8

SEAL, CASE, CYLINDER

3023857

$6.39

9

PIN �8 � �7.1 � 14

3023834

$3.19

10

CHAIN, TIMING, 82 LINK

3023858

$23.99

11

PLATE, TIMING CHAIN TENSION

3023859

$47.99

12

O-RING �15.2 � � 1.5

3023860

$3.99

13

BOLT, TENSION ROD

3023861

$3.99

14

GUIDE, CHAIN

3023862

$19.99
