ENGINE, CRANKCASE - A24HBBO7B6/B7 (C1206112-13)

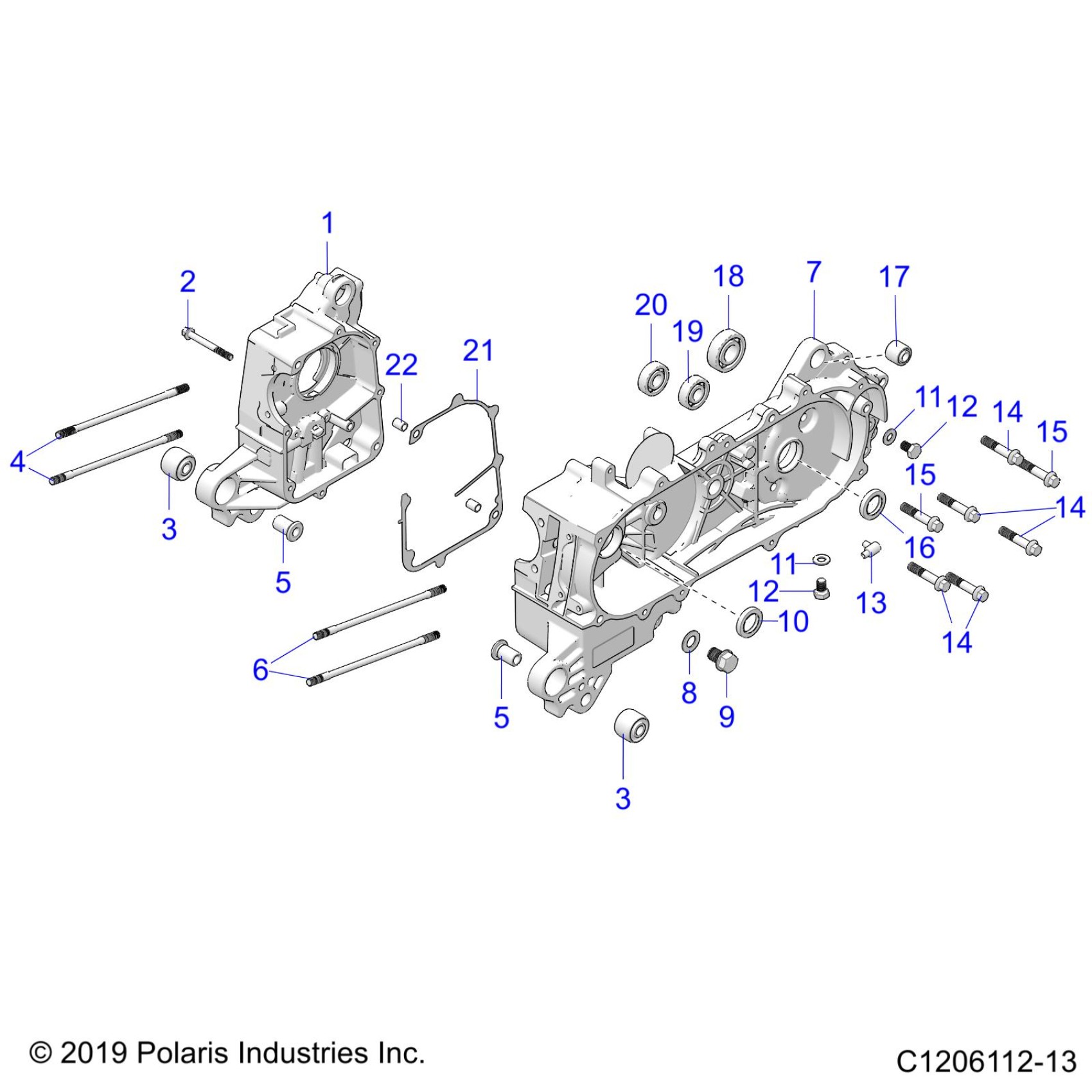

Polaris OUTLAW 70 (R02) - A24HBB07B6/B7 ENGINE, CRANKCASE - A24HBBO7B6/B7 (C1206112-13) Diagram
#
Description
Price
1
CRANKCASE RH
3023920
$175.99
2
BOLT M6 � 50
3050326
$4.79
3
SLEEVE, LG, SHOCK ABSORBER
3023921
$6.39
3
SLEEVE, LG, SHOCK ABSORBER
3023921
$6.39
4
STUD, DOUBLE-HEADED M7 x 168
3023922
$7.99
5
BUSHING, SUPPORT, LARGE
3023923
$12.79
5
BUSHING, SUPPORT, LARGE
3023923
$12.79
6
STUD, DOUBLE-HEADED M7 � 175
3023924
$12.79
7
CRANKCASE LH
3023925
$398.30
8
WASHER, ALUMINUM �12
3023926
$3.19
9
BOLT M12�1.5�16
3023927
$3.19
10
SEAL, OIL �19.8��30�5
3023928
$7.19
11
WASHER, ALUMINUM �8��16�1.5
3023908
$3.19
11
WASHER, ALUMINUM �8��16�1.5
3023908
$3.19
12
BOLT M8�12
3050363
$3.19
12
BOLT M8�12
3050363
$3.19
13
VENT
3023929
$5.59
14
BOLT M8�35
3050369
$3.19
14
BOLT M8�35
3050369
$3.19
14
BOLT M8�35
3050369
$3.19
15
BOLT M8X40
3050370
$3.19
15
BOLT M8X40
3050370
$3.19
16
SEAL, OIL 17 � 30 � 6
3023930
$7.19
17
SLEEVE, SM, SHOCK ABSORBER
3023931
$5.59
18
BALL BEARING 6203
3050322
$27.99
19
BEARING 6303X3-2
3050366
$9.59
20
BEARING 6201
3050365
$5.59
21
SEAL, CRANKCASE LH
3023932
$10.39
22
PIN 8 � 6.5 � 14
3050040
$3.99
