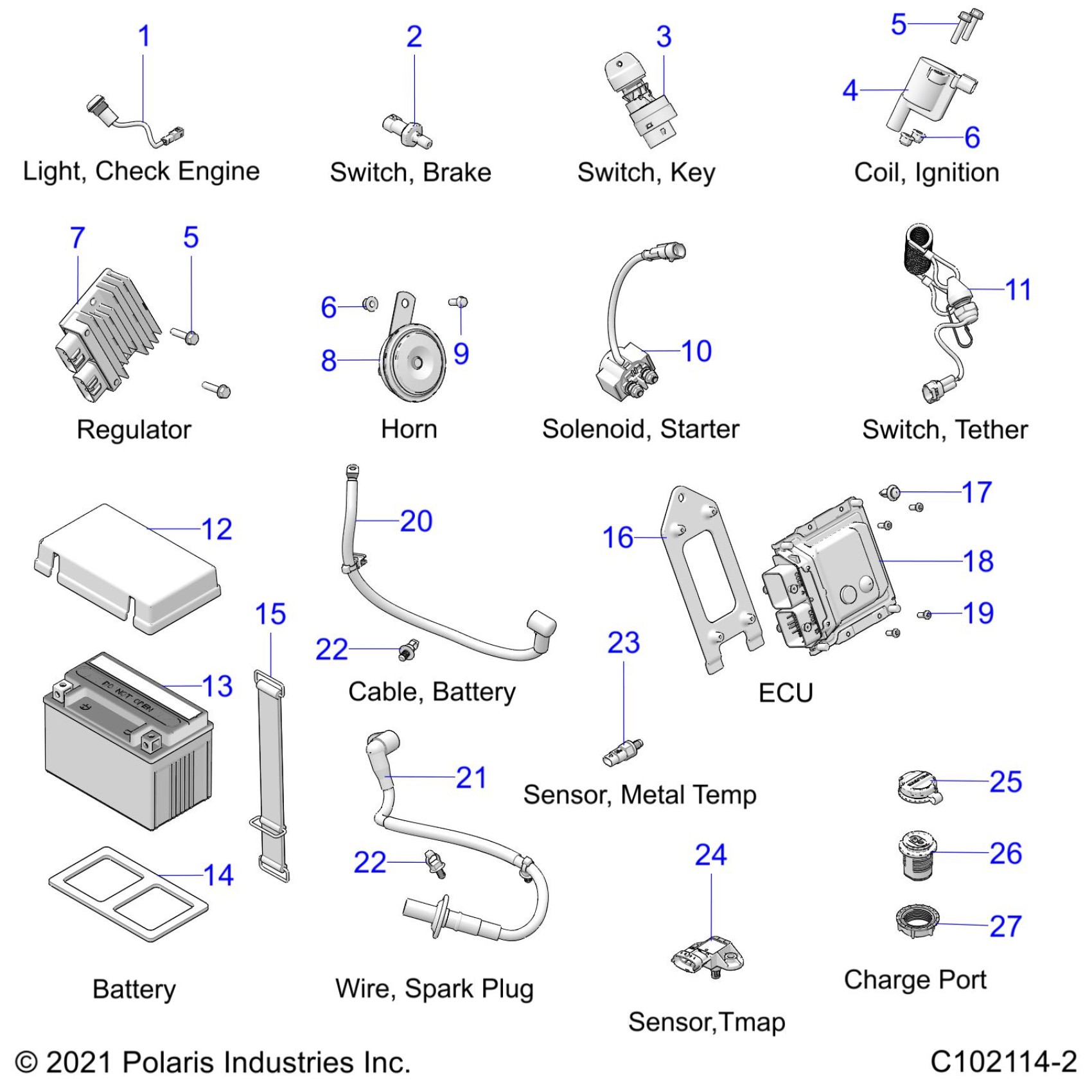

Polaris OUTLAW 70 (R02) - A24HBB07B6/B7 ELECTRICAL, COMPONENTS - A24HBBO7B6/B7 (C102114-2) Diagram

#

Description
Price

1

ASM-LIGHT,CHECK ENGINE

2414969

$14.39

2

SWITCH-BRK,M10X1.25,SGL,30-79 [TO 5/26/2025]

4081240

$67.99

2

SWITCH-BRK,M10X1.25,SGL,30-79 [FRM 5/26/2025]

4081314

$83.99

3

SWITCH-KEY,3 POS,SEALED [TO 11/1/2025]

4080413

$51.99

3

SWITCH-KEY,3 POS,SEALED [FRM 11/1/2025]

4083540

$51.99

4

COIL-IGNITION,SINGLE,W/DIODE

4015072

$134.99

5

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

5

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

6

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

6

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

7

REGULATOR-3PH,SH846

4018820

$127.99

8

HORN-DISC

4018821

$95.99

9

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

10

SOLENOID-STARTER [INCL. BOOT]

4018620

$43.99

10

BOOT-SOLENOID MNT

5416078

$5.59

11

SWITCH-TETHER [INCL. SWITCH 4081577]

4018594

$147.99

11

SWITCH-TETHER

4081577

$31.99

12

COVER-BATTERY

5456833

$27.99

13

BATTERY-SEALED,DTX9-BS,NO-ACID [TO 6/1/2024]

4080533

Unavailable

13

BATTERY-SEALED,9AH,12V,YTX9-BS [FRM 6/1/2024]

4010678

$87.99

14

GASKET-BATTERY CAP

5416089

$3.59

15

STRAP-BATTERY HOLD DOWN [TO 6/17/2024]

5416090

$8.79

15

STRAP-BATTERY HOLD DOWN [FRM 6/17/2024]

5419168

$3.99

16

MNT-ECM,REAR,BLK

5438708-070

$10.39

17

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

18

ECU, BASE, M17

4012838

$440.69

19

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

20

CABLE-BATTERY/SOLENOID [INCL. 22]

4018688

$55.99

21

WIRE-SPARKPLUG [INCL. 22]

4018723

$51.99

22

CLIP-ROUTING

7082599

Unavailable

22

CLIP-ROUTING

7082599

Unavailable

23

SENSOR-METAL TEMP,ARROW

4016513

$35.99

24

SENSOR-TMAP DSS3-TF

2411528

$93.08

25

ASM-CHARGE PORT,BASE (INCL. 25-27)

2415295

$40.46

25

CAP-CHARGE PORT (CAP ONLY)

5417215

$12.79

26

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

27

NUT-CHARGE PORT

5456622

Unavailable
