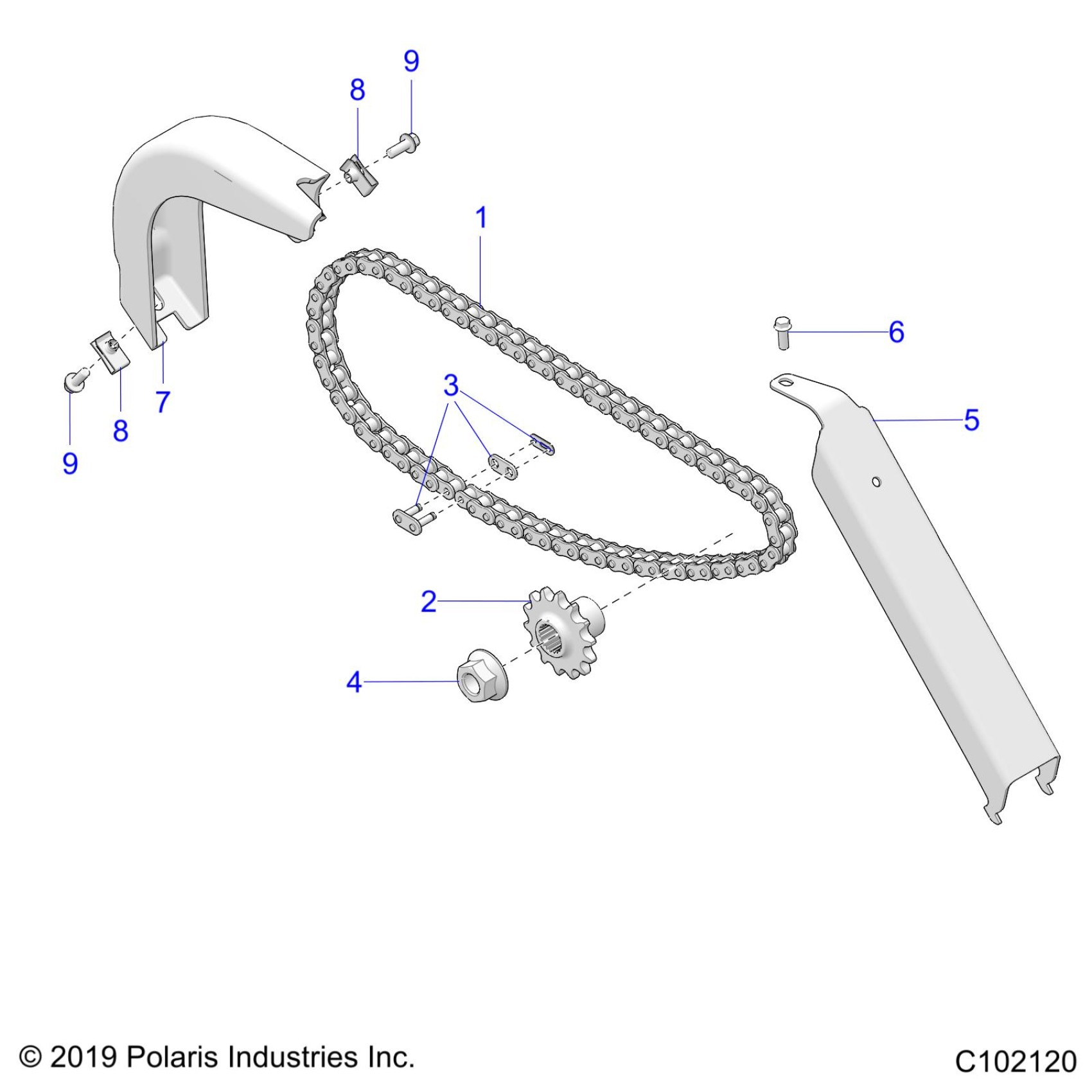

Polaris OUTLAW 70 (R02) - A24HBB07B6/B7 DRIVE TRAIN, CHAIN AND GUARDS - A24HBBO7B6/B7 (C102120) Diagram

#

Description

Price

1

ASM-DRIVE CHAIN

3222327

$109.99

1

K-SVC, CHAIN ASSEMBLY [INCL. 1,3]

2208417

Unavailable

2

SPROCKET-DRIVE

3222336

$47.99

3

K-SVC,MASTER LINK [INCL. LINK, INNER AND OUTER CLIP]

2208416

$2.39

4

NUT-HXFL-M16X1.5 8 ZPC NYL

7547980

$5.27

5

BRKT-CHAIN GUARD,BLK

5268348-458

$31.99

6

SCR-HXFL,M6X1.0X16 8.8ZY3DL204

7519329

$3.99

7

COVER-CHAIN GUARD

5456406

$35.99

8

CLIP-U SPEED NUT

7081305

$1.99

8

CLIP-U SPEED NUT

7081305

$1.99

9

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

9

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99
