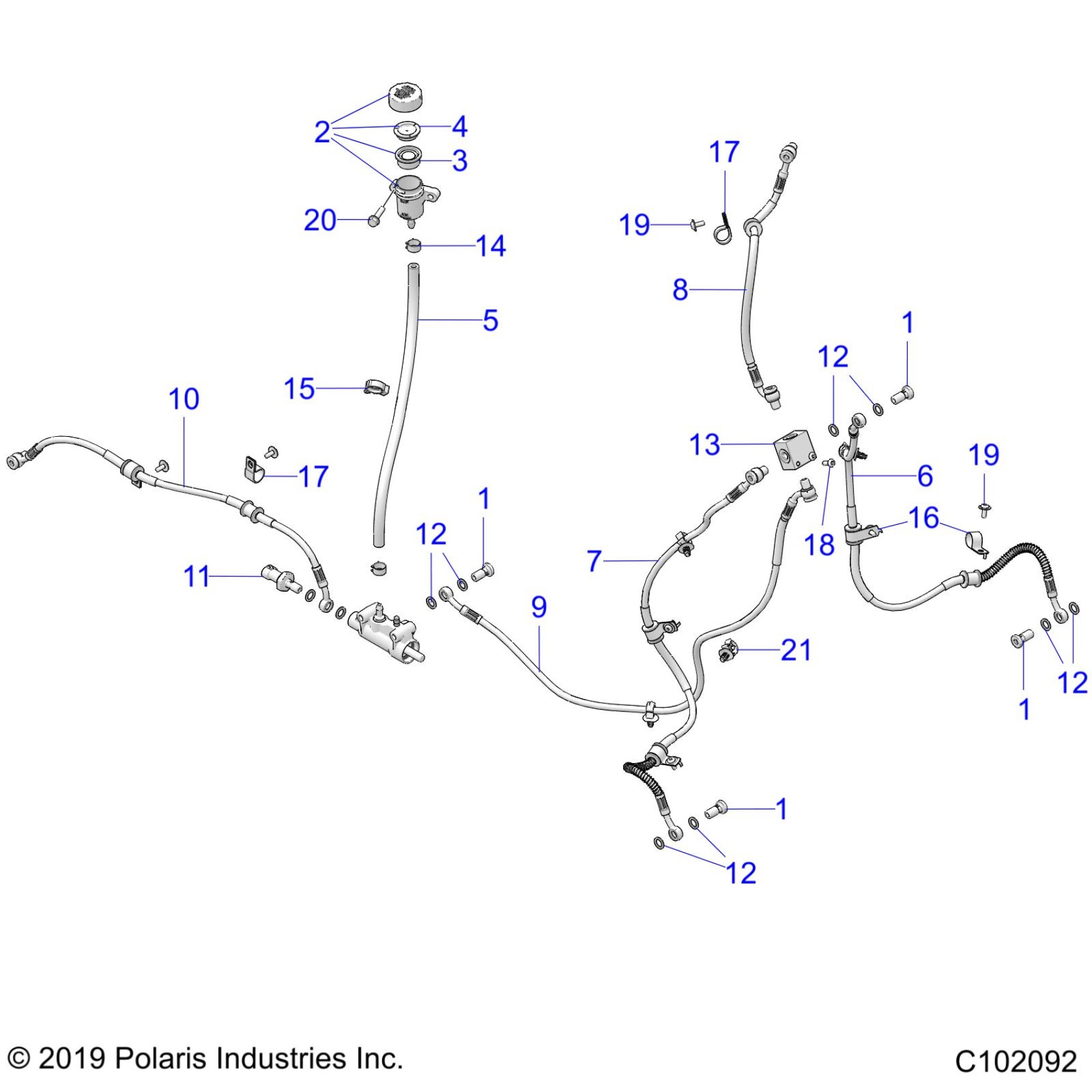

Polaris OUTLAW 70 (R02) - A24HBB07B6/B7 BRAKES, BRAKE LINES - A24HBBO7B6/B7 (C102092) Diagram

#

Description
Price

1

BOLT-BANJO,M10X1.25,TORX HEAD

1913790

$3.19

1

BOLT-BANJO,M10X1.25,TORX HEAD

1913790

$3.19

1

BOLT-BANJO,M10X1.25,TORX HEAD

1913790

$3.19

1

BOLT-BANJO,M10X1.25,TORX HEAD

1913790

$3.19

2

ASM-RESERVOIR,BRAKE [INCL.. 3,4]

1913801

$35.99

3

DIAPHRAGM-RESERVOIR,BRAKE

5417431

$4.79

4

RING-RESERVOIR,BRAKE

5457290

$5.59

5

HOSE-RES,BRAKE,1/4",490MM

1911267-490

Unavailable

6

LINE-BRAKE,FRONT LH

1914042

$75.99

7

LINE-BRAKE,FRONT RH

1914043

$75.99

8

LINE-BRK,FRONT MCYL

1913512

$63.99

9

LINE-BRAKE,REAR MCYL,31,45B,20B,118�J

1913513

$87.99

10

LINE-BRAKE,REAR

1913514

$87.99

11

SWITCH-BRK,M10X1.25,SGL,30-79 [TO 5/26/2025]

4081240

$67.99

11

SWITCH-BRK,M10X1.25,SGL,30-79 [FRM 5/26/2025]

4081314

$83.99

12

WSHR-COPPER SEAL,10 ID,14.7 OD

7557218

$3.19

12

WSHR-COPPER SEAL,10 ID,14.7 OD

7557218

$3.19

12

WSHR-COPPER SEAL,10 ID,14.7 OD

7557218

$3.19

12

WSHR-COPPER SEAL,10 ID,14.7 OD

7557218

$3.19

13

FITTING-CROSS,BRAKE

7052748

$39.99

14

HOSE CLAMP, RED

7080003

$1.49

15

CLIP, PLASTIC(10)

4020139

$4.79

16

CLAMP-HOSE,.625 DIA VNL COATED

7082438

$7.99

17

CLIP-ROUTING

7082640

$3.99

17

CLIP-ROUTING

7082640

$3.99

18

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$4.79

19

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

19

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

20

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

21

CLIP-NYLON, C, FIR-TREE

7662310

$4.79
