- OUTLAW 525 "S" - A10GJ52AA
SUSPENSION, SWING ARM - A10GJ52AA (49ATVSWINGARM09OUT450)

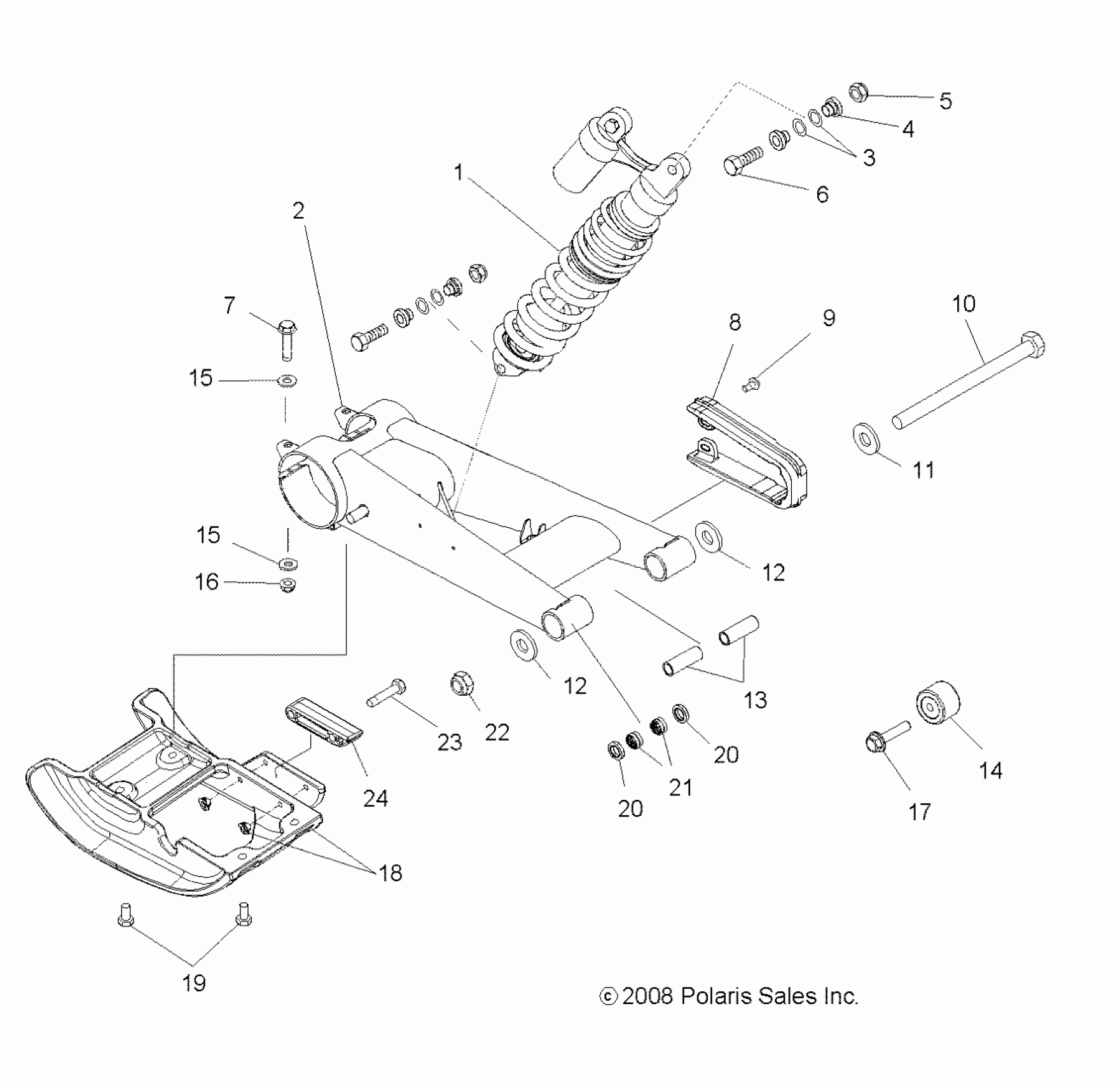

Polaris OUTLAW 525 "S" - A10GJ52AA SUSPENSION, SWING ARM - A10GJ52AA (49ATVSWINGARM09OUT450) Diagram
#
Description
Price
1
Asm., Shock, Rear [See Suspension, Rear Shock Page for Details]
-------
Unavailable
2
Asm., Swing Arm, Silver [Incl. 13,20,21]
1542376-385
$433.32
3
O-RING
5412290
$2.02
4
Reducer, Bushing
5334195
$8.79
5
NUT, NYLON
7547066
$1.59
6
BOLT
7518207
$23.99
7
Bolt, Flange
7518561
$7.19
8
Slider, Chain
5437259
Unavailable
9
Screw
7518196
$1.49
10
Bolt, Swing Arm
7518810
Unavailable
11
Washer
7556264
Unavailable
12
Bushing, Thrust Washer
5434754
Unavailable
12
Bushing, Thrust Washer
5434754
Unavailable
13
Spacer, Swing Arm
5135991
Unavailable
14
Asm., Roller, Chain
1590360
Unavailable
15
WSHR-.813X.406X.105-Y
7555832
$2.39
15
WSHR-.813X.406X.105-Y
7555832
$2.39
16
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
17
Bolt
7518469
Unavailable
18
T-Nut
7547448
$2.29
18
Asm., Guard, Swing Arm
1542667
$139.99
19
SCREW
7518181
$5.59
20
Seal
3610104
Unavailable
20
Seal
3610104
Unavailable
21
Bearing, Needle
3514653
$11.99
22
Nut, Flange
7518299
$4.79
23
BOLT
7518512
$4.79
24
Guide, Chain
5435411
$31.99
