- OUTLAW 525 "S" - A10GJ52AA
SUSPENSION, REAR SHOCK - A10GJ52AA (49ATVSHOCKRR7043474)

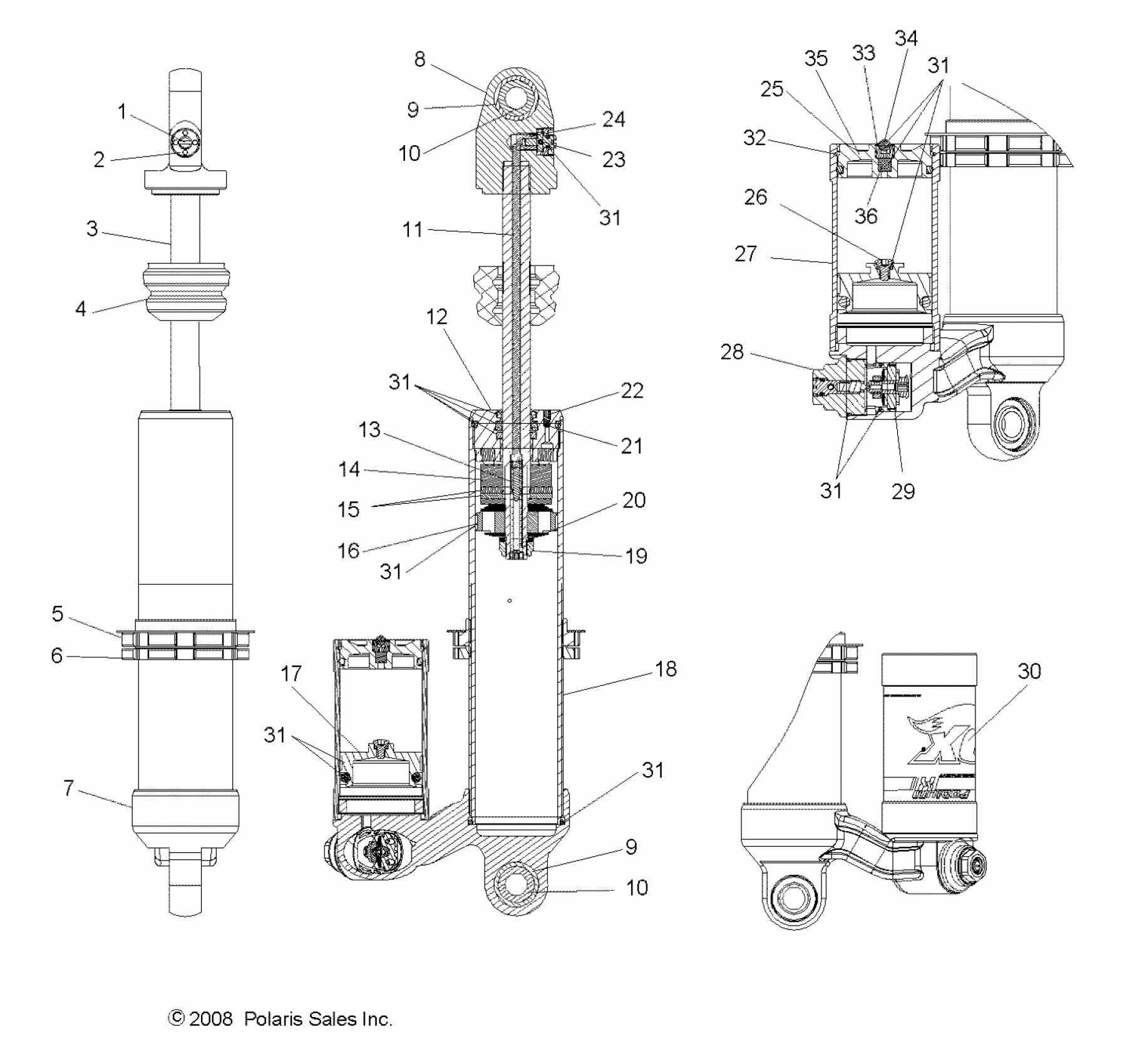

Polaris OUTLAW 525 "S" - A10GJ52AA SUSPENSION, REAR SHOCK - A10GJ52AA (49ATVSHOCKRR7043474) Diagram
#
Description
Price
-
Shock, Rear [Incl. All]
7043474
$579.99
1
Knob
1500641
$40.79
2
Retainer, RD Adjust
1500640
$26.23
3
Shaft
1500802
$175.99
4
Bumper
1500800
Unavailable
5
Ring, Preload
1500575
$28.15
6
Ring, Preload
1500576
$22.23
7
Cap, Body
1500745
$128.99
8
Eyelet
1500746
Unavailable
9
Ring, Snap
1500523
$6.19
9
Ring, Snap
1500523
$6.19
10
BEARING, SPHERICAL
1500524
$43.99
10
BEARING, SPHERICAL
1500524
$43.99
11
Rod, Metering
1500803
$23.79
12
Asm., Bearing
1500578
$75.40
13
Needle
1500804
$69.83
14
Spacer
1500806
$14.29
15
Spacer
1500807
$14.75
16
Piston
1500615
$53.59
17
Piston, Floating
1500743
$37.59
18
Body
1500801
$131.99
19
Nut, Lock
1500472
$23.99
20
Jet
1500534
$37.11
21
Ball
1500071
$6.76
22
Screw, Socket Set
1500070
$6.39
23
Ball
1500638
$1.83
24
Screw, Adjust
1500642
$22.99
25
Cap, End
1500744
$45.59
26
SCREW W/O-RING
1500161
Unavailable
27
Reservoir
1500633
$82.39
28
Cartridge, CD Single Adjust
1500617
Unavailable
29
Piston, Concentric Adjuster
1500616
$21.79
30
Decal, "FOX"
1500805
$95.24
31
Kit, Rebuild
1500742
$84.43
31
Kit, Rebuild
1500742
$84.43
31
Kit, Rebuild
1500742
$84.43
31
Kit, Rebuild
1500742
$84.43
31
Kit, Rebuild
1500742
$84.43
31
Kit, Rebuild
1500742
$84.43
31
Kit, Rebuild
1500742
$84.43
32
RING, RETAINING
1500236
$9.59
33
Screw, Set
1500723
$27.99
34
Valve
1500206
$24.19
35
ASM., END CAP
1500765
$109.99
36
PELLET
1500724
$12.79
