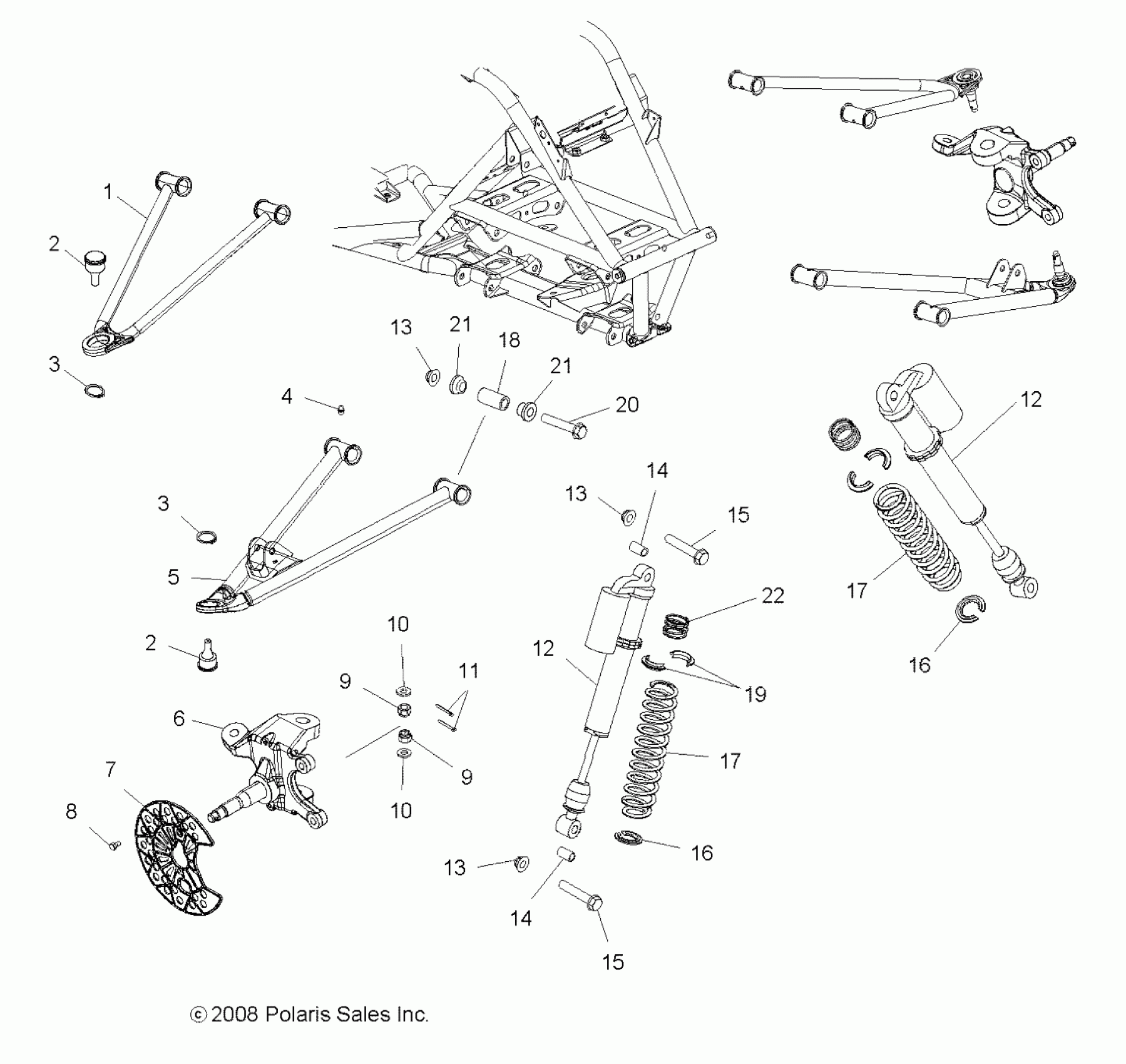

Polaris OUTLAW 525 "S" - A10GJ52AA SUSPENSION, FRONT - A10GJ52AA (49ATVSUSPFRT09OUT450) Diagram

#

Description
Price

1

A-Arm, Upper, LH, Silver

1015697-385

$289.99

1

A-Arm, Upper, RH, Silver

1015698-385

Unavailable

2

Joint, Ball

7061156

$48.40

2

Joint, Ball

7061156

$48.40

3

RING, RETAINER

7710533

$2.39

3

RING, RETAINER

7710533

$2.39

4

Fitting, Lubrication

7080433

$1.49

5

A-Arm, Lower, RH, Silver

1015076-385

Unavailable

5

A-Arm, Lower, LH, Silver

1015075-385

Unavailable

6

Asm., Knuckle, Steering, LH

1823340

Unavailable

6

Asm., Knuckle, Steering, RH

1823341

Unavailable

7

Guard, Disk, Inner

5436830

$12.94

8

Screw

7518441

$6.99

9

NUT, CASTLE

7547336

$11.19

9

NUT, CASTLE

7547336

$11.19

10

WASHER

7556376

$3.19

10

WASHER

7556376

$3.19

11

Pin, Cotter

7661203

$1.49

12

Shock, Front [See Shock, Front Page for Details]

7043459

$257.99

12

Shock, Front [See Shock, Front Page for Details]

7043459

$257.99

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

SLEEVE

5334876

$14.39

14

SLEEVE

5334876

$14.39

15

Screw

7518559

$5.59

15

Screw

7518559

$5.59

16

Retainer, Spring, Slotted

5630580

Unavailable

16

Retainer, Spring, Slotted

5630580

Unavailable

17

Spring, Compression, Indy Red

7043133-293

$56.99

17

Spring, Compression, Indy Red

7043133-293

$56.99

18

Shaft, A-Arm

5135270

$12.79

19

Spacer, Spring, Nylon

5436643

$4.79

20

Screw

7518664

$7.19

21

Bushing, A-Arm

5434575

$10.39

21

Bushing, A-Arm

5434575

$10.39

22

Spring, Compression, Indy Red

7043471-293

Unavailable
