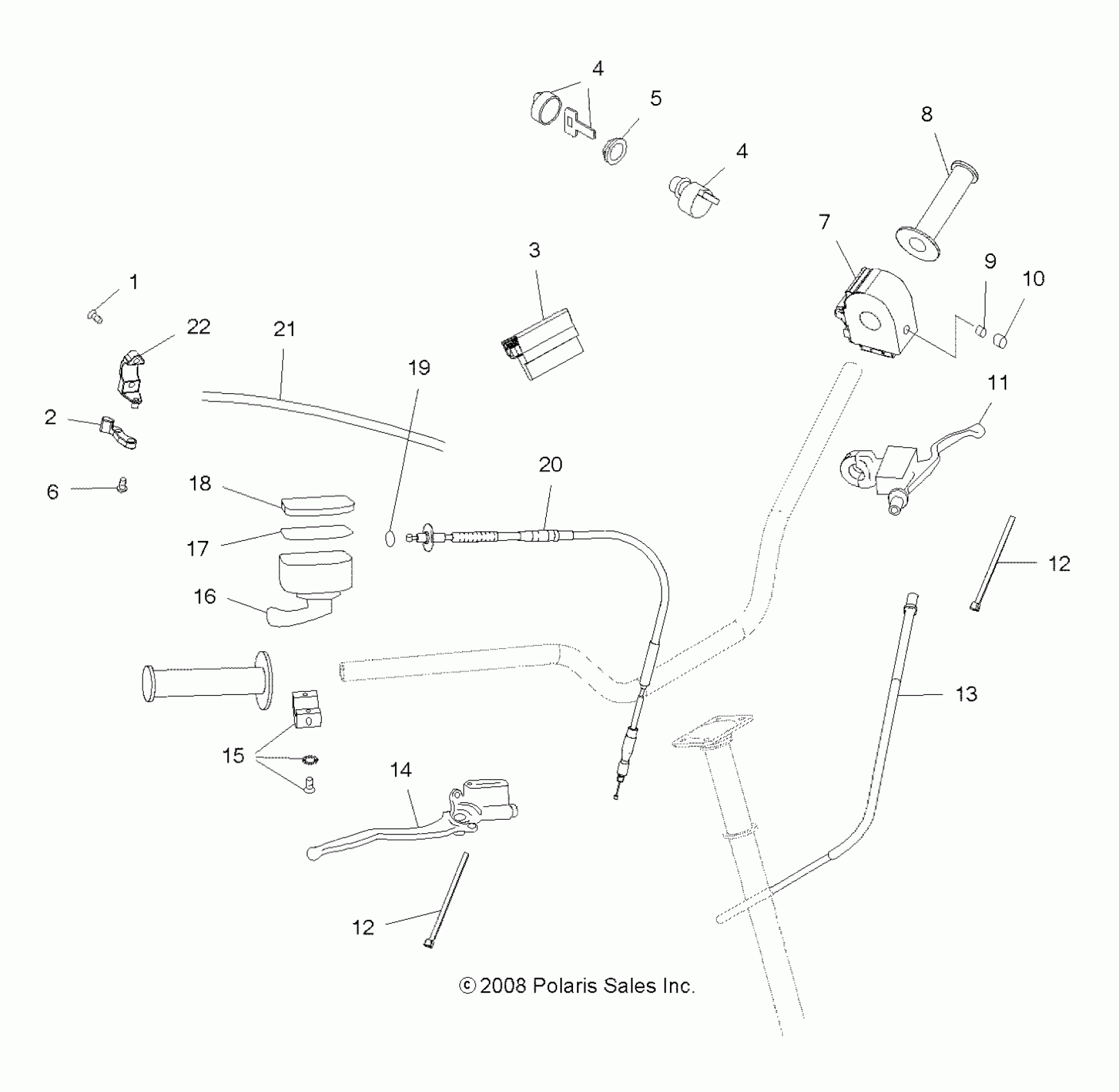

Polaris OUTLAW 525 "S" - A10GJ52AA STEERING, CONTROLS and INDICATOR - A10GJ52AA (49ATVCONTROLS09OUT450) Diagram

SCREW

7517305

$4.79

Lever, Reverse

5135435

$28.32

Panel, Indicator Light, 3 Position

4010315

Unavailable

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

Switch Ignition [Incl. 5, Key and Cover]

4012163

$107.99

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

Switch Ignition [Incl. 5, Key and Cover]

4012163

$107.99

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

Bolt

7518647

$11.99

Switch, Handlebar

4011442

$119.99

Grip, Handlebar

5436089-070

$28.32

SCREW, SET

7517625

$4.79

PLUG, HOLE

5432952

$5.59

Asm., Clutch Lever, Hydraulic

2010292

Unavailable

Switch, Clutch

2010328

$119.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

Line, Hydraulic Clutch

2010327

Unavailable

Asm., Master Cylinder

1911392

Unavailable

ASM-THROTTLE CLAMP

2010191

$31.99

Asm., Throttle Control [Incl. 15]

2010335

$59.99

O-RING

5411439

$2.39

COVER, THROTTLE CONTROL

5434113

$31.99

O-RING

5410193

$4.99

Cable, Throttle

7081542

$72.84

Cable, Reverse

7081541

Unavailable

Bracket, Reverse Lever

5135514

$32.37
