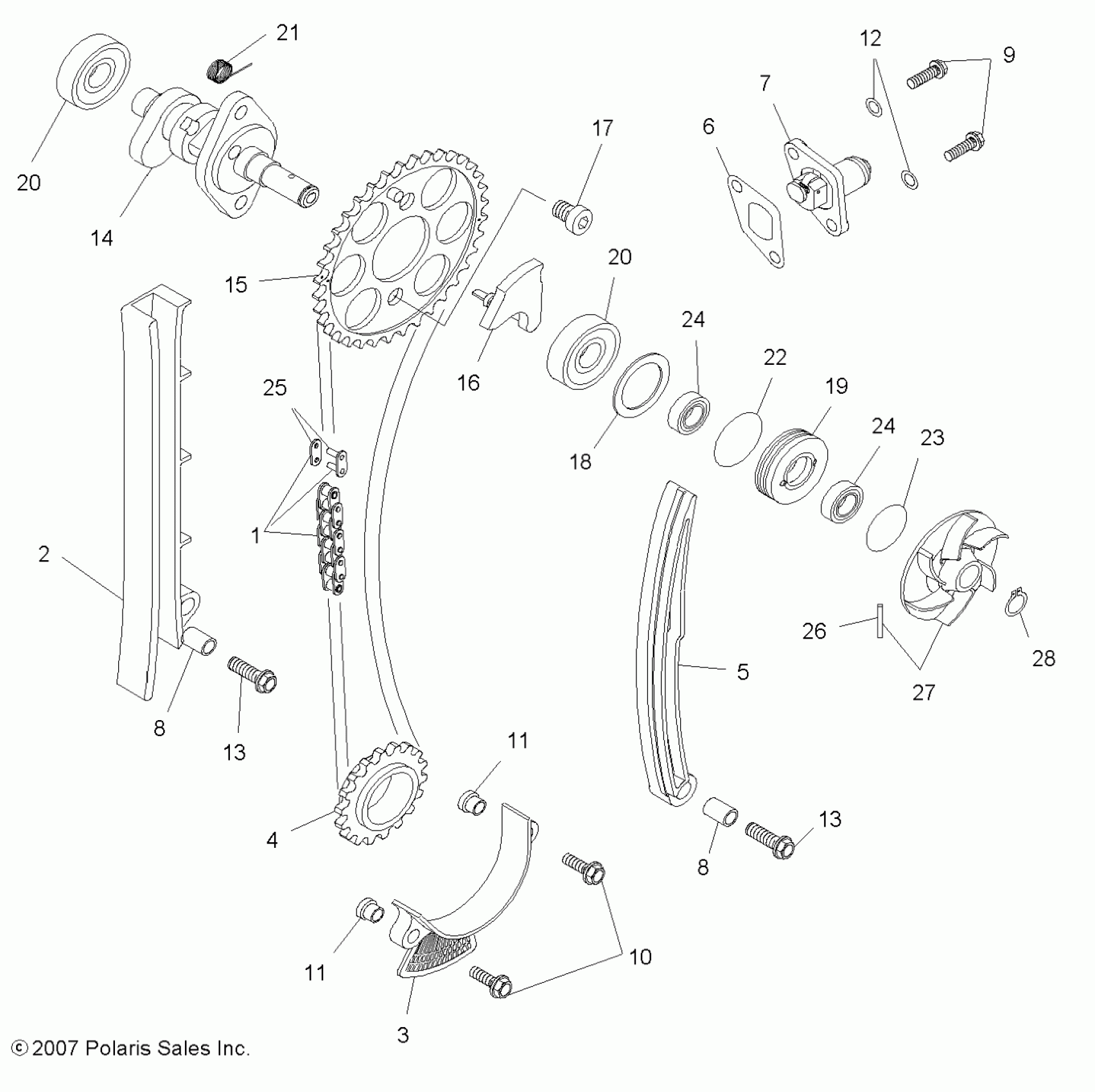

Polaris OUTLAW 525 "S" - A10GJ52AA ENGINE, TIMING SYSTEM - A10GJ52AA (49ATVCAMCHAIN08OUT525S) Diagram

#

Description
Price

1

Chain, Cam Drive

3222158

Unavailable

2

Guide, Cam Timing Chain

3021845

$32.37

3

Guide, Cam Chain, Lower

3021847

$34.99

4

Sprocket, Cam Chain Drive, 18T

3222157

$79.99

5

Tensioner, Cam Chain

1203519

Unavailable

6

Gasket, Cam Chain Tensioner

5813173

$8.99

7

Asm., Cam Chain Tensioner

1203522

$89.99

8

Bushing, Spacer

5135837

$6.99

8

Bushing, Spacer

5135837

$6.99

9

Screw

7518723

$4.84

10

Screw

7518732

Unavailable

11

Bushing, Spacer

5135843

$6.99

11

Bushing, Spacer

5135843

$6.99

12

Washer, Copper

7556415

$3.97

13

Screw

7518736

Unavailable

13

Screw

7518736

Unavailable

14

Camshaft

3021848

Unavailable

15

Sprocket, Camshaft Driven

3222159

Unavailable

16

Shaft, Auto Decompression

3021849

Unavailable

17

Screw

7518741

$5.65

18

Washer

7556414

Unavailable

19

Carrier, Water Pump Seal

5135846

Unavailable

20

Bearing, Ball

3514581

Unavailable

20

Bearing, Ball

3514581

Unavailable

21

Spring, Auto Decompression

7043303

$16.14

22

O-Ring

5413252

$5.65

23

O-Ring

5413251

$7.27

24

Seal, Shaft

5413306

Unavailable

24

Seal, Shaft

5413306

Unavailable

25

Link, Connector

3222167

Unavailable

26

Needle, Roller

7661935

$2.38

27

Impeller, Water Pump

5437029

Unavailable

28

Ring, Snap

7710599

Unavailable
