- OUTLAW 525 "S" - A10GJ52AA
ENGINE, OIL SYSTEM and OIL PUMP - A10GJ52AA (49ATVOILPUMP07OUT525)

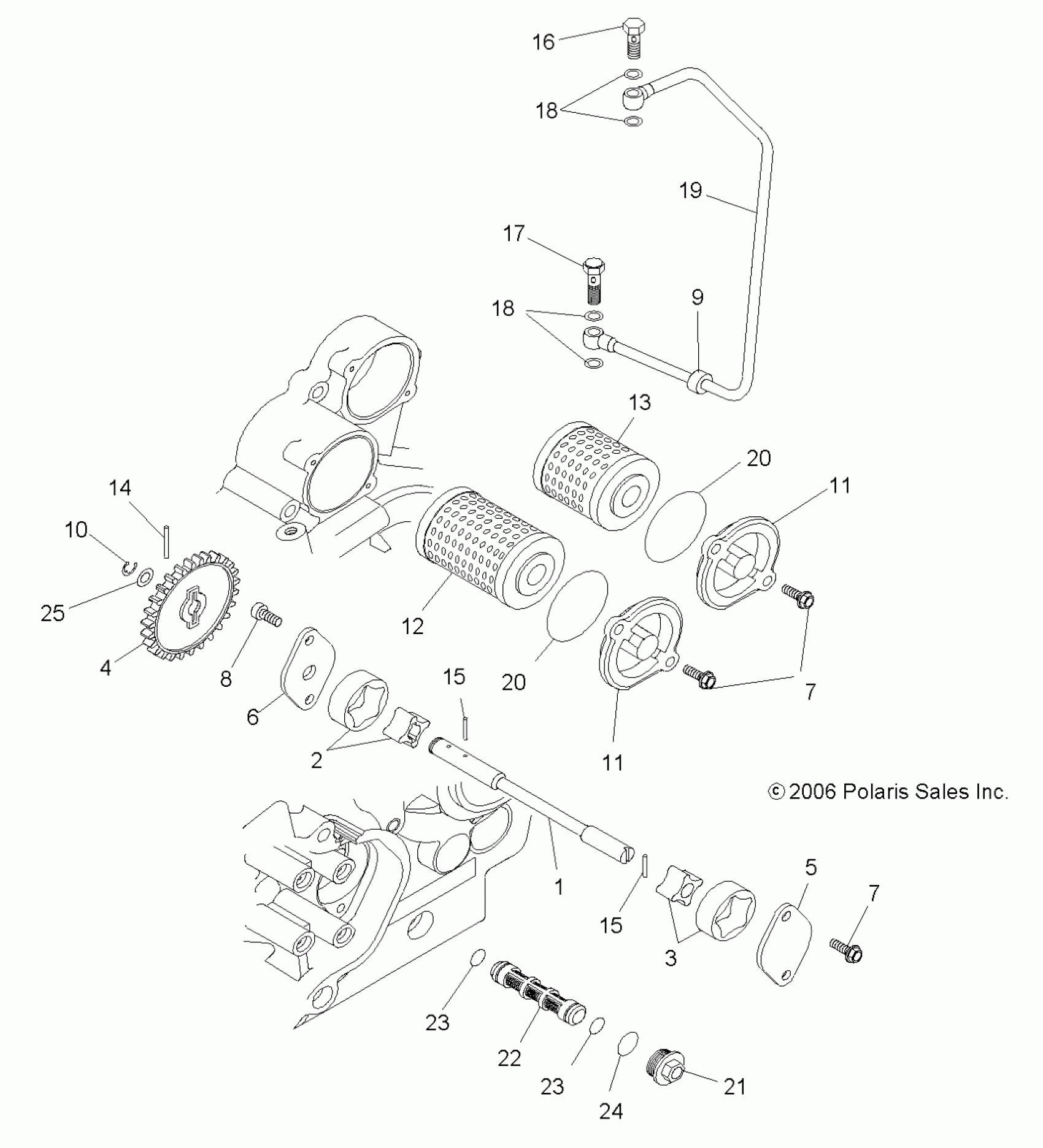

Polaris OUTLAW 525 "S" - A10GJ52AA ENGINE, OIL SYSTEM and OIL PUMP - A10GJ52AA (49ATVOILPUMP07OUT525) Diagram
#
Description
Price
1
Shaft, Oil Pump
2520749
$36.99
2
Asm., Oil Pump Rotor
2520750
$54.99
3
Asm., Oil Pump Rotor
1203520
$59.99
4
Gear, Oil Pump, 26T
6230362
Unavailable
5
Cover, Oil Pump, LH
5250949
Unavailable
6
Cover, Oil Pump, RH
5250947
Unavailable
7
Screw
7518732
Unavailable
7
Screw
7518732
Unavailable
8
Screw
7518733
Unavailable
9
Damper, Oil Line, Vibration
5413308
Unavailable
10
Ring, Snap
7710594
Unavailable
11
Cover, Oil Filter
5135848
Unavailable
11
Cover, Oil Filter
5135848
Unavailable
12
Filter, Oil, Long
2520754
$9.59
13
Filter, Oil, Short
2520755
$9.99
14
Needle, Roller
7661932
$2.38
15
Needle, Roller
7661931
$2.39
15
Needle, Roller
7661931
$2.39
16
Bolt, Banjo
7052428
$11.99
17
Bolt, Banjo
7052429
Unavailable
18
Washer, Copper
7556416
$4.99
18
Washer, Copper
7556416
$4.99
19
Line, Oil, Case to Cylinder Head
2520753
$59.99
20
O-Ring
5413254
Unavailable
20
O-Ring
5413254
Unavailable
21
Plug, Screw
7052425
Unavailable
22
Screen, Oil
2520751
$39.99
23
O-Ring
5413248
$5.59
23
O-Ring
5413248
$5.59
24
O-Ring
5413249
$6.46
25
Washer, Stop
7556399
$5.99
