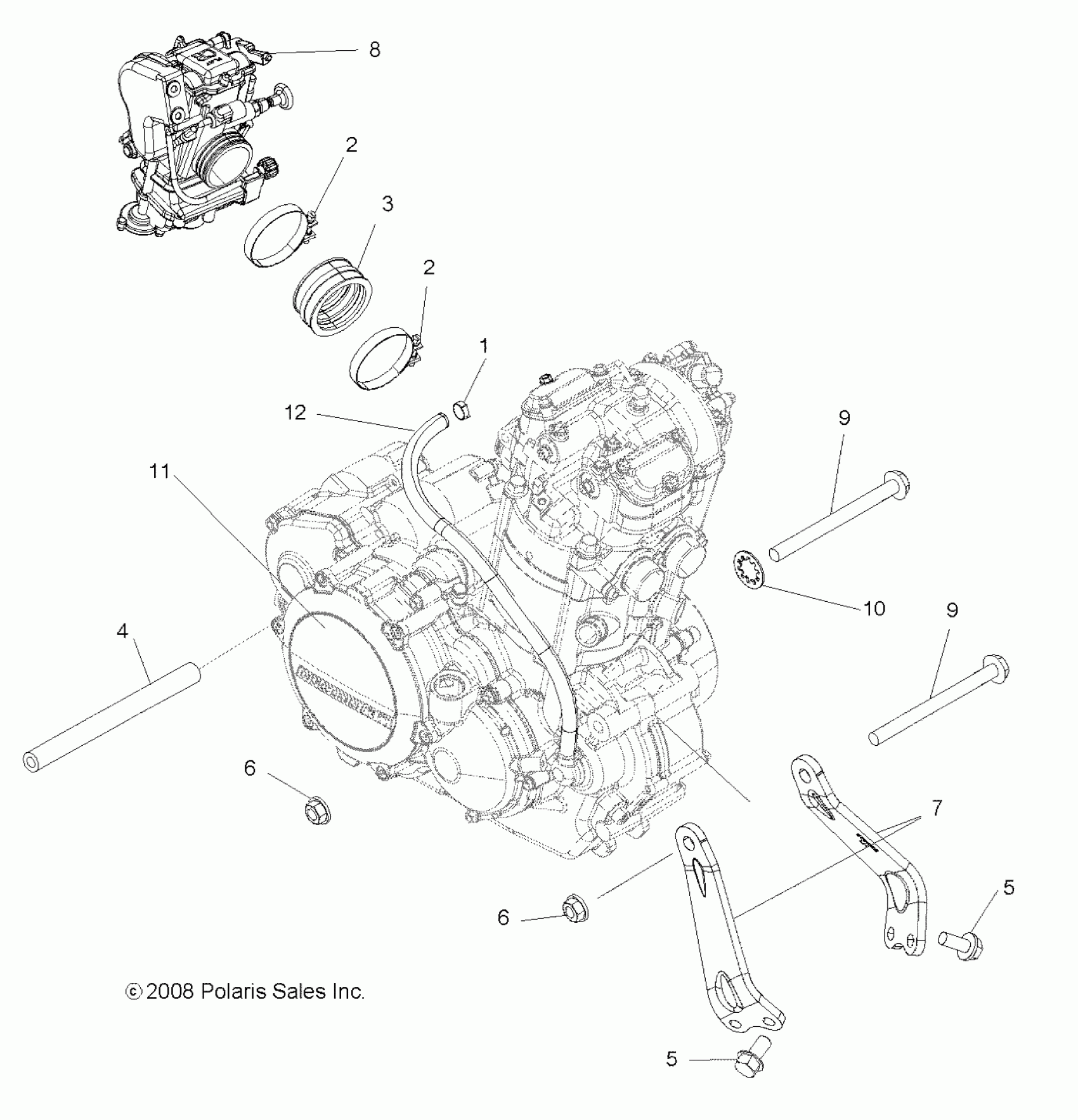

Polaris OUTLAW 525 "S" - A10GJ52AA ENGINE, MOUNTING - A10GJ52AA (49ATVENGINEMTG09OUT450) Diagram

#

Description
Price

1

Clamp

7080699

$1.59

2

Clamp

7080511

$4.79

2

Clamp

7080511

$4.79

3

Boot, Intake

5413231

Unavailable

4

Bushing, Motor Mount

5134957

$49.99

5

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

5

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

Mount, Engine, LH

5251131

Unavailable

7

Mount, Engine, RH

5251132

Unavailable

8

Asm., Carb

1203825

$1,229.99

9

Bolt, Flanged

7518665

$13.59

9

Bolt, Flanged

7518665

$13.59

10

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

11

Engine, ES051KLE012 [Built 10/13/08 and Before]

-------

Unavailable

11

Engine, ES052KLE016 [Built 10/14/08 and After]

-------

Unavailable

12

Hose, Breather

5413360

Unavailable
