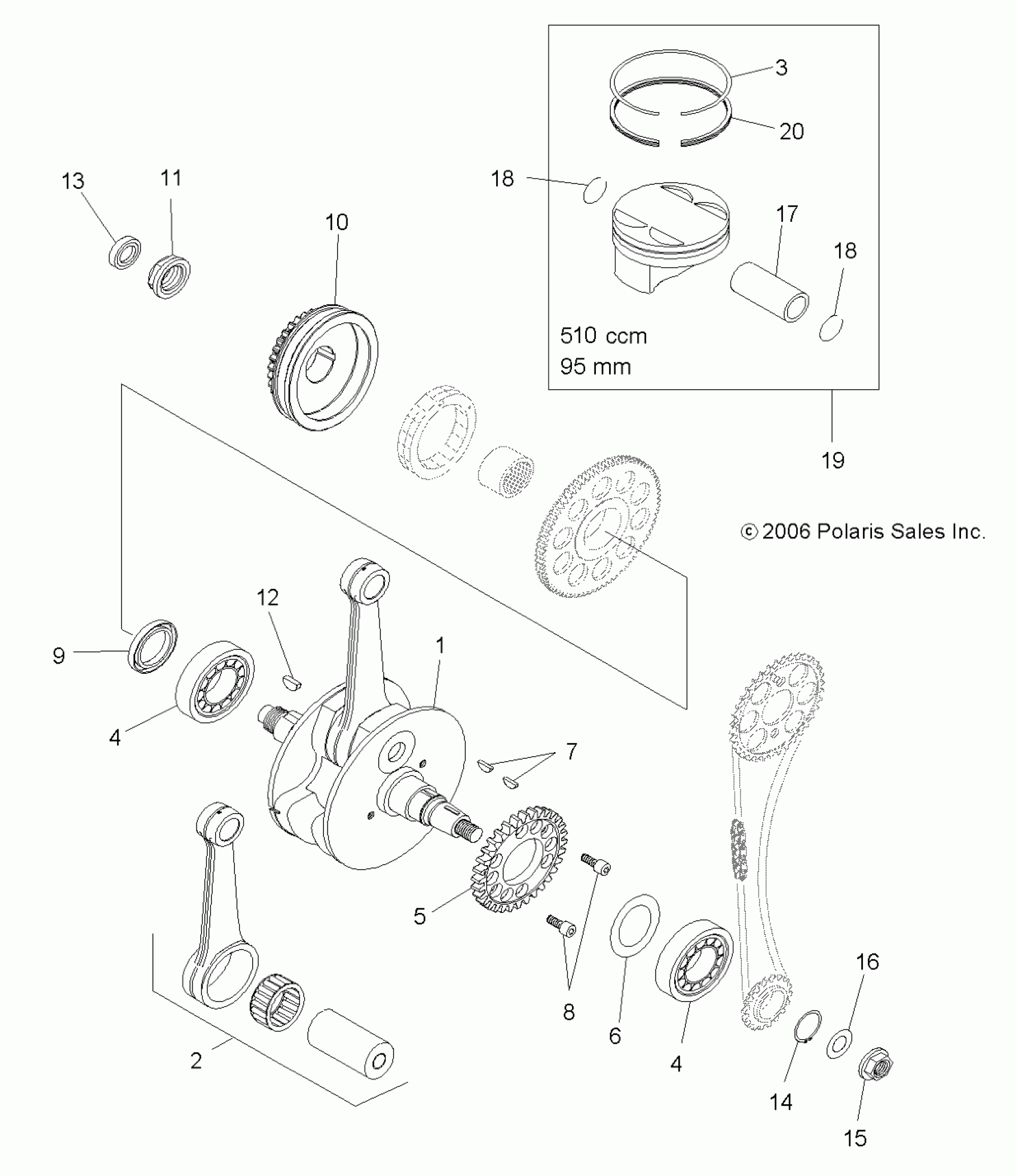

Polaris OUTLAW 525 "S" - A10GJ52AA ENGINE, CRANKSHAFT and PISTON - A10GJ52AA (49ATVCRANKSHAFT07OUT525) Diagram

#

Description
Price

1

Asm., Crankshaft

1203516

Unavailable

2

Kit, Connecting Rod

2203406

$539.99

3

Ring, Piston

3021874

Unavailable

4

Bearing, Cylinder Roll

3514569

$109.99

4

Bearing, Cylinder Roll

3514569

$109.99

5

Gear, Drive Balance Shaft

6230359

Unavailable

6

Shim, Axial Clearance, .10 mm

7556392

Unavailable

6

Shim, Axial Clearance, .15mm

7556393

Unavailable

6

Shim, Axial Clearance, .30mm

7556394

Unavailable

7

Key, Woodruff

7710593

$4.79

8

Screw

7518721

Unavailable

9

Seal, Shaft

5413245

Unavailable

10

Gear, Primary, 31T

6230361

$189.99

11

Nut

7547378

$29.99

12

Key, Woodruff

7710595

$5.99

13

Seal, Shaft

5413244

Unavailable

14

Ring, Snap

7710597

$4.79

15

Nut

7547381

$27.99

16

Washer, Spring

7556413

Unavailable

17

Pin, Piston

3021872

$39.99

18

Circlip

3021875

Unavailable

18

Circlip

3021875

Unavailable

19

Kit, Piston, Sort 2 [Piston sort must match Cylinder sort][Incl. 3,17,18,20]

2203408

Unavailable

19

Kit, Piston, Sort 1 [Piston sort must match Cylinder sort][Incl. 3,17,18,20]

2203407

Unavailable

20

Ring, Piston

3021873

Unavailable
