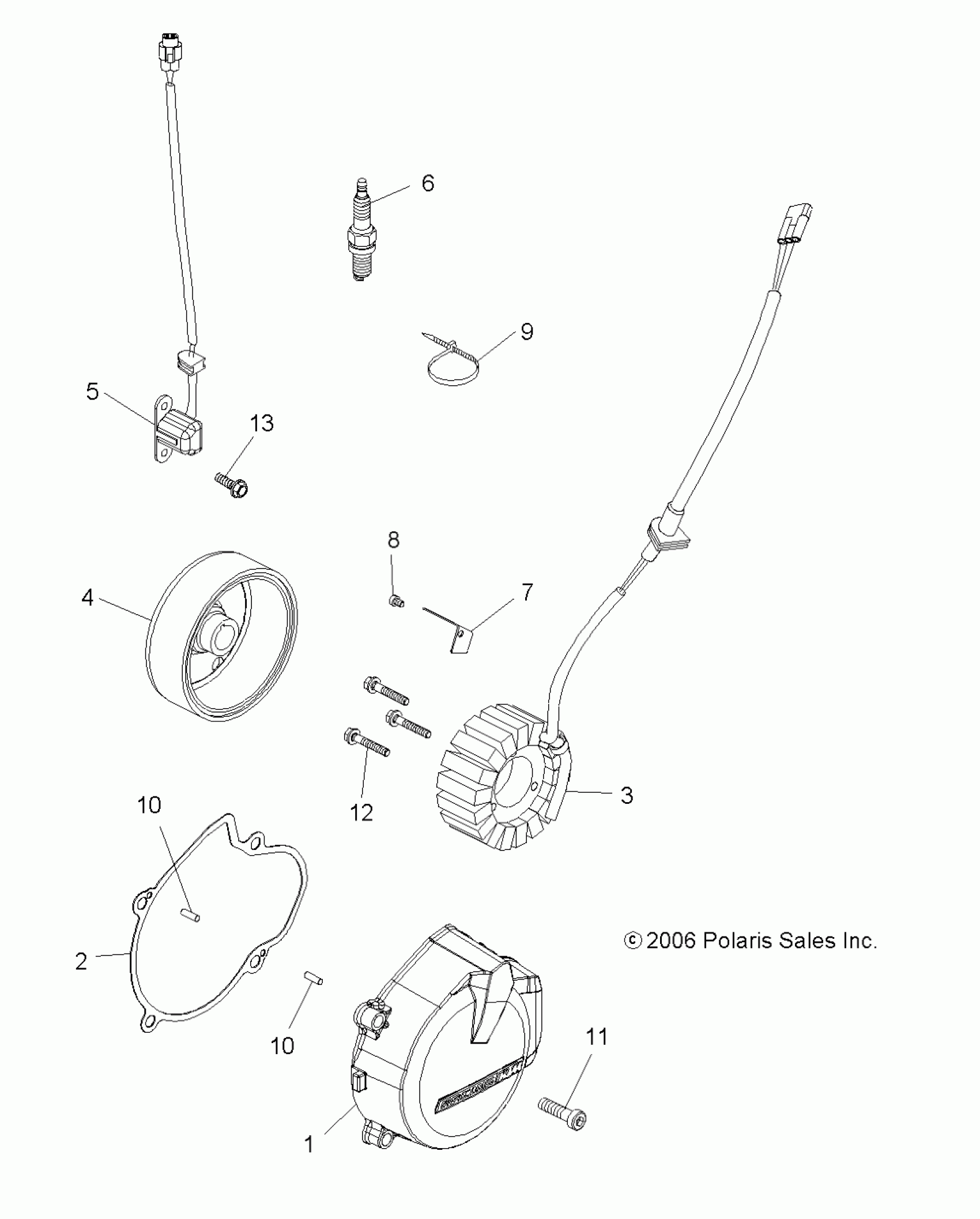

Polaris OUTLAW 525 "S" - A10GJ52AA ELECTRICAL, IGNITION SYSTEM - A10GJ52AA (49ATVIGNITION07OUT525) Diagram

#

Description
Price

1

Cover, Ignition

5136152

Unavailable

2

Gasket, Ignition Cover

5813170

Unavailable

3

Stator

4011866

$299.99

4

Flywheel

4011867

$354.99

5

Coil, Pulser

4011799

$119.99

6

SPARK PLUG

3088051

$6.39

7

Bracket, Stator Wire

5250951

$6.19

8

Screw

7518743

$1.49

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

10

Needle, Roller

3514575

$3.97

10

Needle, Roller

3514575

$3.97

11

Screw

7518791

$5.59

12

Screw

7518730

$4.79

13

Screw

7518732

Unavailable
