- OUTLAW 525 "S" - A10GJ52AA
DRIVE TRAIN, REAR AXLE and HOUSING - A10GJ52AA (49ATVAXLE09OUT450)

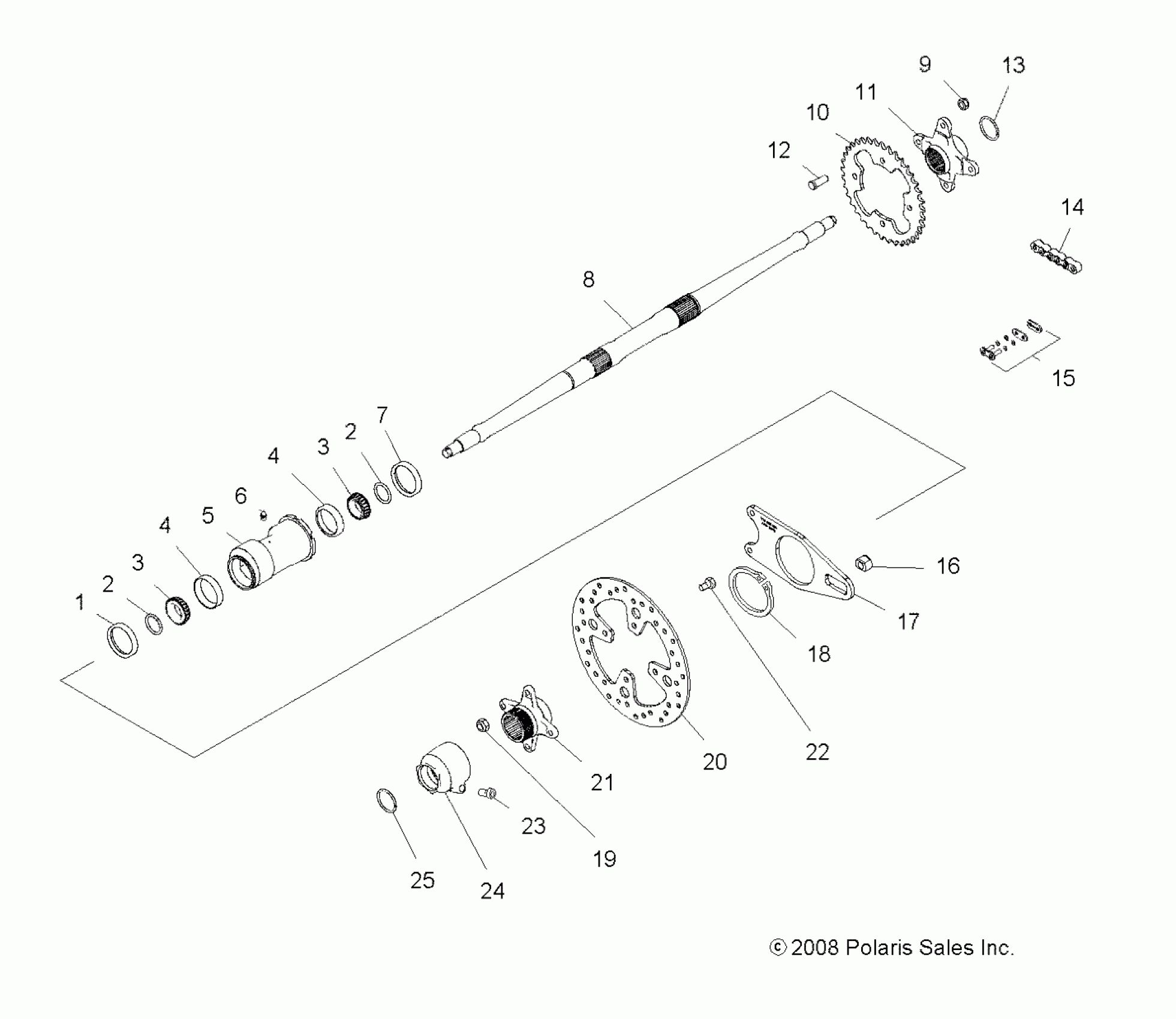

Polaris OUTLAW 525 "S" - A10GJ52AA DRIVE TRAIN, REAR AXLE and HOUSING - A10GJ52AA (49ATVAXLE09OUT450) Diagram
#
Description
Price
1
Seal, Double Lip
3610105
$32.37
2
O-Ring
5412220
$2.02
2
O-Ring
5412220
$2.02
3
Bearing, Cone, Taper
3514393
$27.99
3
Bearing, Cone, Taper
3514393
$27.99
4
Bearing, Cup, Taper
3514394
$19.99
4
Bearing, Cup, Taper
3514394
$19.99
5
Housing, Axle, Rear
5133248
Unavailable
6
Fitting, Lubrication
7080306
$3.19
7
Seal, Lip
3610089
$32.37
8
Axle, Rear
5136732
Unavailable
9
Nut, Lock
7547177
$2.39
10
Sprocket, 38T, Rear [Std.]
3222152
Unavailable
10
Sprocket, 36T, Rear [Opt.]
3221149
Unavailable
10
Sprocket, 37T, Rear [Opt.]
3221152
Unavailable
10
Sprocket, 39T [Opt.]
3222184
Unavailable
11
Hub, Sprocket
5130001
$184.99
12
SCREW
7519059
$3.19
13
Ring, Retaining
7670147
$7.99
14
Chain, 98P
3221193-098
Unavailable
15
Link, Connector
3221192
$27.99
16
Bushing, Caliper Mount
5136470
Unavailable
17
Mount, Caliper Axle
5252847
Unavailable
18
Ring, Retaining, External
7710516
Unavailable
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
20
Disc, Brake
5252848
$59.99
21
Hub, Rear Disc
5133340
Unavailable
22
BOLT-M8X1.25X25,HXFLG-OLIVE D
7518514
$1.59
23
Screw
7515102
$4.79
24
Nut, Axle
5133428
Unavailable
25
Ring, Retaining
7710405
$4.79
