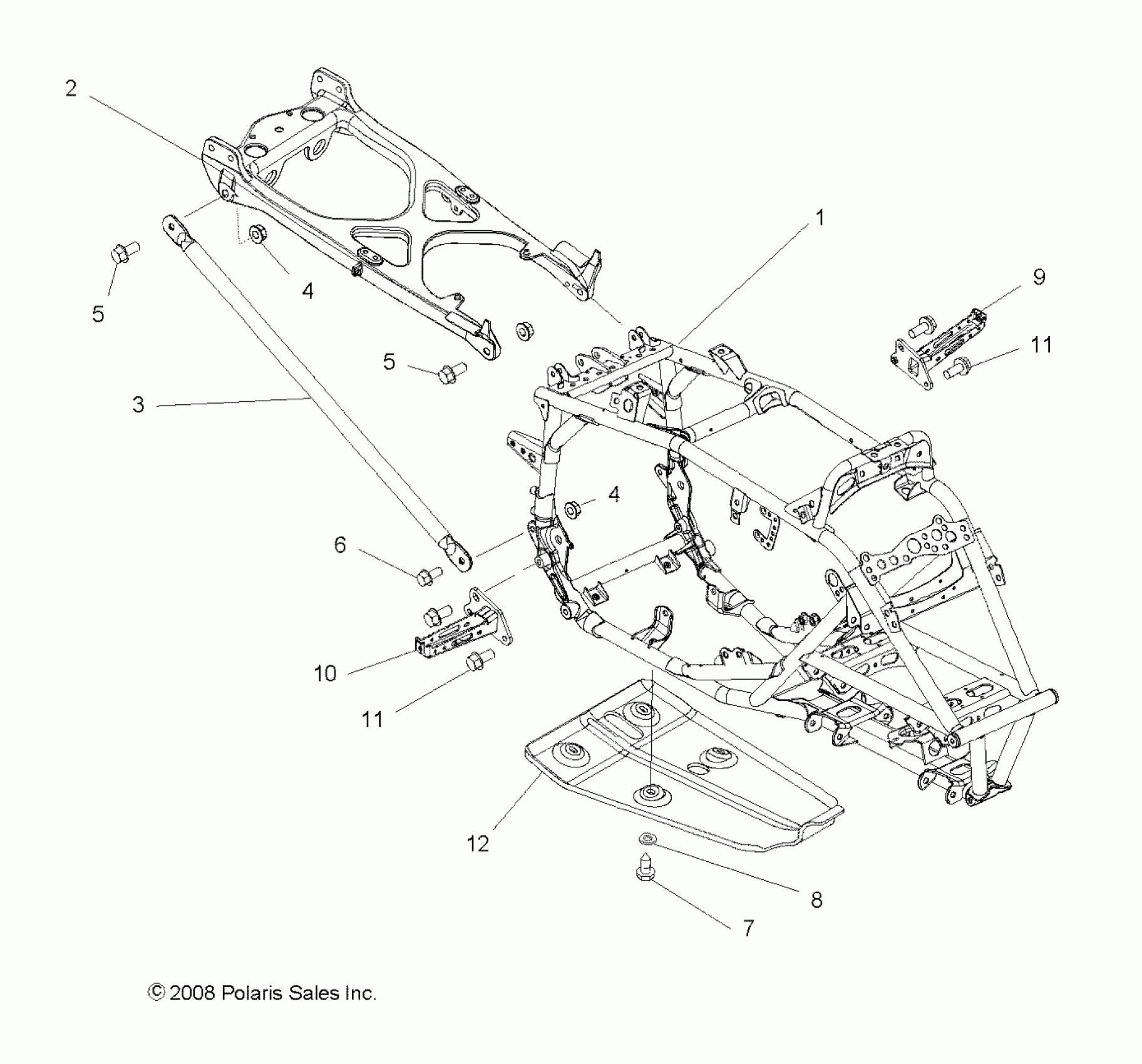

Polaris OUTLAW 525 "S" - A10GJ52AA CHASSIS, FRAME - A10GJ52AA (49ATVFRAME09OUT450) Diagram

#

Description

Price

1

Frame, Main, Matte' Black

1016381-458

Unavailable

2

Frame, Sub

5136136

$172.22

3

Support, Subframe, LH, Matte' Black

5335334-458

Unavailable

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

5

Screw, Flange

7518391

$4.75

5

Screw, Flange

7518391

$4.75

6

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

Washer, Flat

7555859

$1.49

9

Footpeg, LH, Matte' Black

1015489-458

$134.49

10

Footpeg, RH, Matte' Black

1015490-458

Unavailable

11

Bolt, Flange

7518760

$9.59

11

Bolt, Flange

7518760

$9.59

12

Guard, Rock, Front

5437100

$55.99
