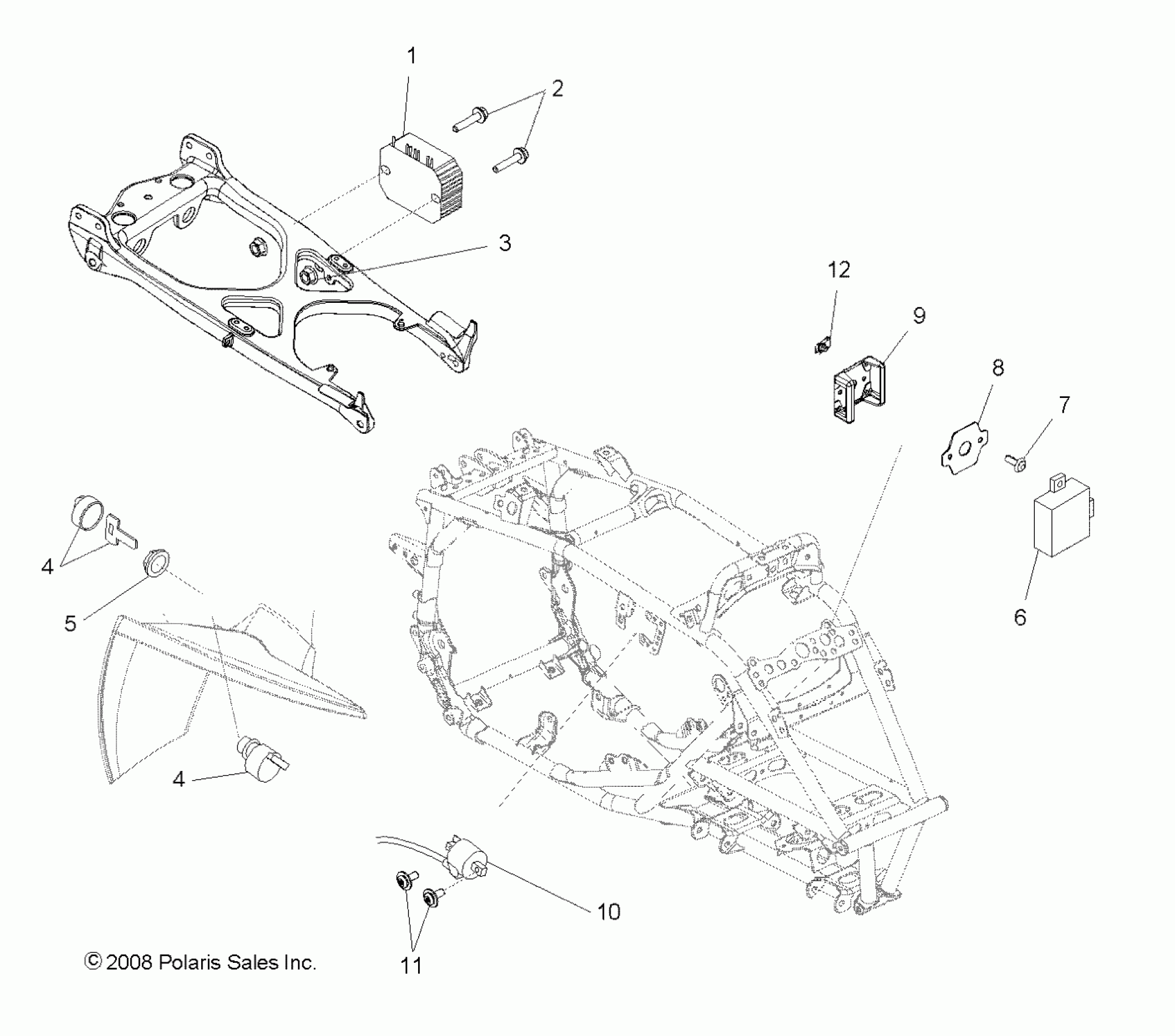

Polaris OUTLAW 525 "S" - A09GJ52AA ELECTRICAL, REGULATOR, CDI and COIL - A09GJ52AA (49ATVELECT09OUT450) Diagram

#

Description
Price

1

Rectifier, Regulator

4010654

Unavailable

2

BOLT, FLANGE

7518530

$3.97

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

4

Switch, Ignition [Incl. 5, Key, Key Cover]

4012163

$109.27

4

Switch, Ignition [Incl. 5, Key, Key Cover]

4012163

$109.27

5

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

6

Controller, Ignition

4011668

Unavailable

7

SCR-HXFLTX-M6X1.0X15 8.8 ZOD

7519066

$3.97

8

Plate, CDI Mount

5250906

$3.49

9

Mount, CDI

5413234

$13.89

10

Coil, Ignition

4012392

$75.54

11

Screw

7518196

$1.19

12

CLIP-U SPEED NUT

7081305

$1.98
