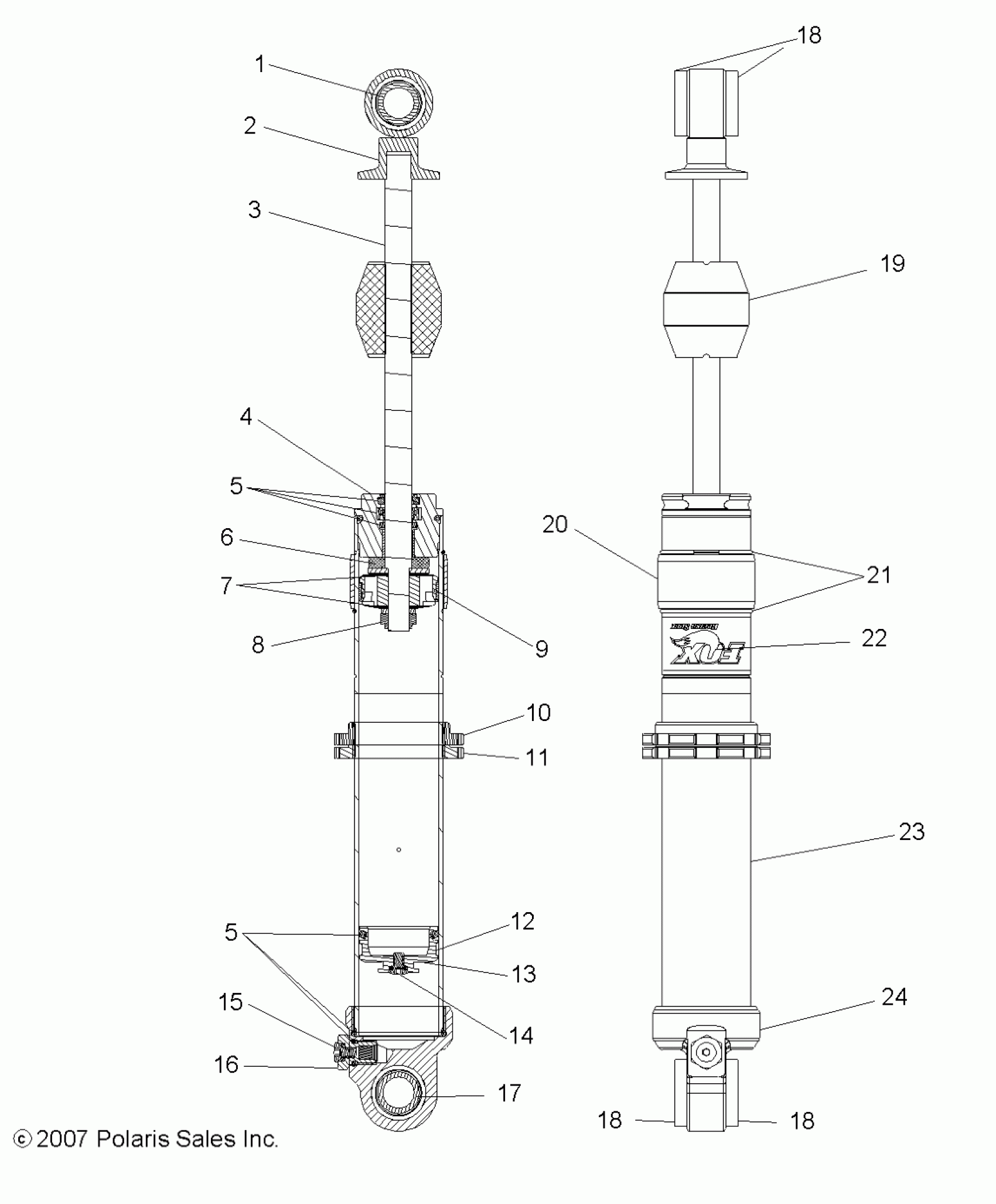

Polaris OUTLAW 525 "S" - A08GJ52AA/AB/AC SUSPENSION, FRONT SHOCK - A08GJ52AA/AB (49ATVSHOCKFRT7043358) Diagram

#

Description
Price

-

Shock, Front

7043358

Unavailable

1

Sleeve

1500747

$32.37

2

ASM., EYELET

1500013

$76.89

3

Shaft

1500272

$52.79

4

Asm., Bearing

1500570

$59.52

5

Kit, Seal Rebuild

1500767

Unavailable

5

Kit, Seal Rebuild

1500767

Unavailable

6

Bumper

1500074

$5.65

7

Asm., Valving [Incl. Piston, Washers]

-------

Unavailable

8

Nut, Lock

1500016

$12.79

9

Bearing

1500002

$31.99

10

Ring, Preload

1500753

$24.79

11

Ring, Preload

1500754

$24.79

12

Bearing

1500006

$19.99

13

Asm., Floating Piston

1500275

$92.99

14

SCREW W/O-RING

1500161

Unavailable

15

Screw

1500019

$6.39

16

Asm., Air Valve [Incl. 15]

1500014

$69.99

17

SLEEVE

1500497

$32.37

18

BUSHING

1500103

$8.08

18

BUSHING

1500103

$8.08

18

BUSHING

1500103

$8.08

19

Bumper

1500567

Unavailable

20

Guide, Spring

1500752

$11.39

21

Ring, Wire

1500607

$3.99

22

Decal, "FOX"

1500790

$13.89

23

Body

1500789

$74.39

24

Asm., Body Cap

1500569

$45.59
