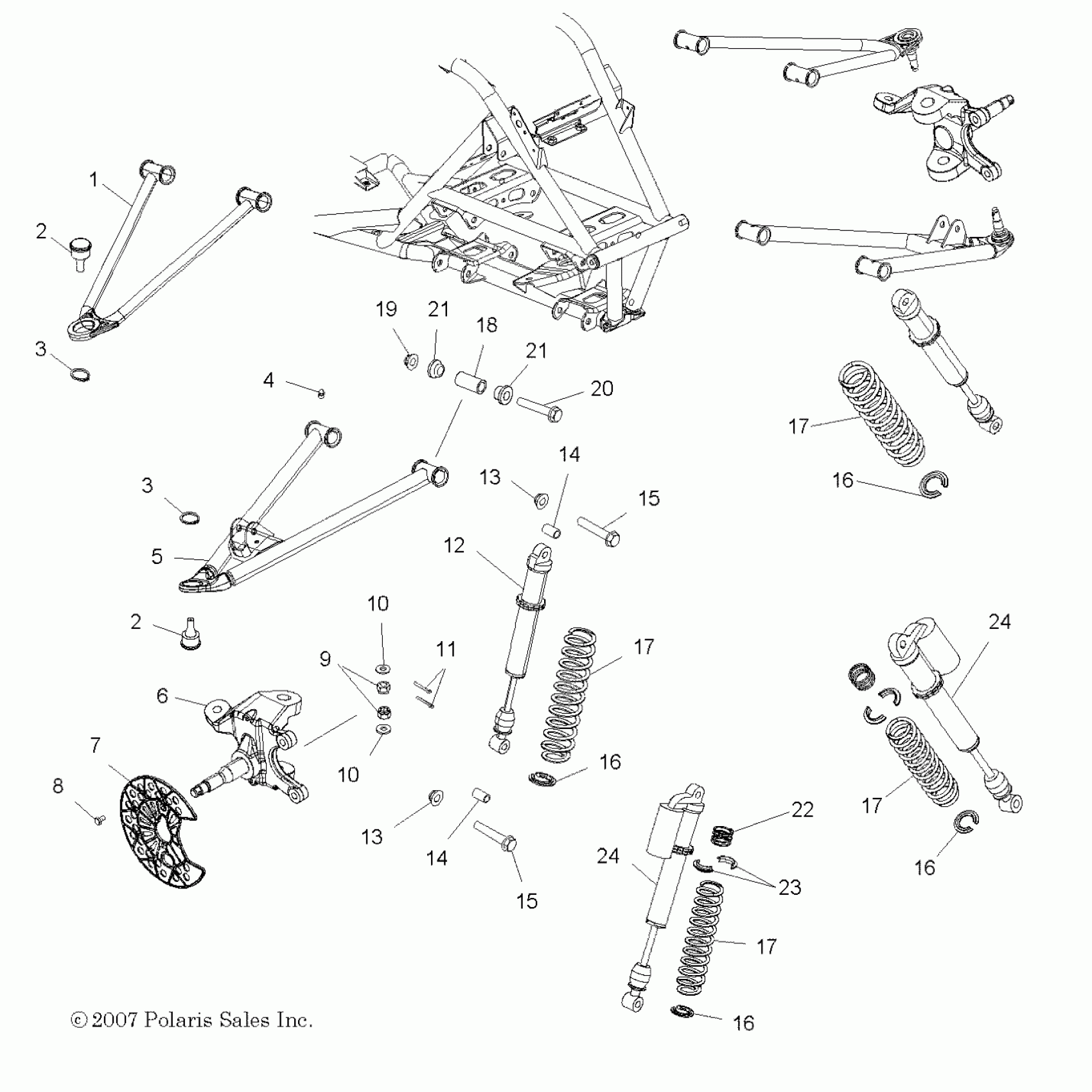

Polaris OUTLAW 525 "S" - A08GJ52AA/AB/AC SUSPENSION, FRONT - A08GJ52AA/AB/AC (49ATVSUSPFRT08OUT525S) Diagram

#

Description
Price

1

A-Arm, Upper, LH, Silver [AA][AB]

1015697-385

$289.99

1

A-Arm, Upper, RH, Silver [AA][AB]

1015698-385

Unavailable

1

A-Arm, Upper, LH, Gold [AC]

1015697-462

Unavailable

1

A-Arm, Upper, RH, Gold [AC]

1015698-462

Unavailable

2

Joint, Ball

7061141

$48.40

2

Joint, Ball

7061141

$48.40

3

RING, RETAINER

7710533

$2.39

3

RING, RETAINER

7710533

$2.39

4

Fitting, Lubrication

7080433

$1.49

5

A-Arm, Lower, RH, Silver [AA][AB]

1015076-385

Unavailable

5

A-Arm, Lower, LH, Silver [AA][AB]

1015075-385

Unavailable

5

A-Arm, Lower, LH, Gold [AC]

1015075-462

$126.02

5

A-Arm, Lower, RH, Gold [AC]

1015076-462

$142.84

6

Asm., Knuckle, Steering, LH

1823340

Unavailable

6

Asm., Knuckle, Steering, RH

1823341

Unavailable

7

Guard, Disk, Inner

5436830

$12.94

8

Screw

7518441

$6.99

9

NUT, CASTLE

7547336

$11.19

10

WASHER

7556376

$3.19

10

WASHER

7556376

$3.19

11

Pin, Cotter

7661203

$1.49

12

Shock, Front [See Shock, Front Page for Details][AA][AB]

7043358

Unavailable

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

SLEEVE

5334876

$14.39

14

SLEEVE

5334876

$14.39

15

Screw

7518559

$5.59

15

Screw

7518559

$5.59

16

Retainer, Spring, Slotted

5630580

Unavailable

16

Retainer, Spring, Slotted

5630580

Unavailable

16

Retainer, Spring, Slotted

5630580

Unavailable

16

Retainer, Spring, Slotted

5630580

Unavailable

17

Spring, Indy Red, 120# [AA][AB]

7043197-293

Unavailable

17

Spring, Compression, Rear, Bright White [AC]

7043133-133

$37.91

17

Spring, Indy Red, 120# [AA][AB]

7043197-293

Unavailable

17

Spring, Compression, Rear, Bright White [AC]

7043133-133

$37.91

17

Spring, Indy Red, 120# [AA][AB]

7043197-293

Unavailable

17

Spring, Compression, Rear, Bright White [AC]

7043133-133

$37.91

17

Spring, Indy Red, 120# [AA][AB]

7043197-293

Unavailable

17

Spring, Compression, Rear, Bright White [AC]

7043133-133

$37.91

18

Shaft, A-Arm

5135270

$12.79

19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

20

Screw

7518664

$7.19

21

Bushing, A-Arm

5434575

$10.39

21

Bushing, A-Arm

5434575

$10.39

22

Spring, Compression, Rear, Bright White [AC]

7043227-133

Unavailable

23

Spacer, Spring [AC]

5436643

$4.79

24

Shock, Front [AC]

7043359

$384.99

24

Shock, Front [AC]

7043359

$384.99
