- OUTLAW 525 "S" - A08GJ52AA/AB/AC
ENGINE, CARBURETOR - A08GJ52AA/AB/AC (49ATVCARB08OUT525S)

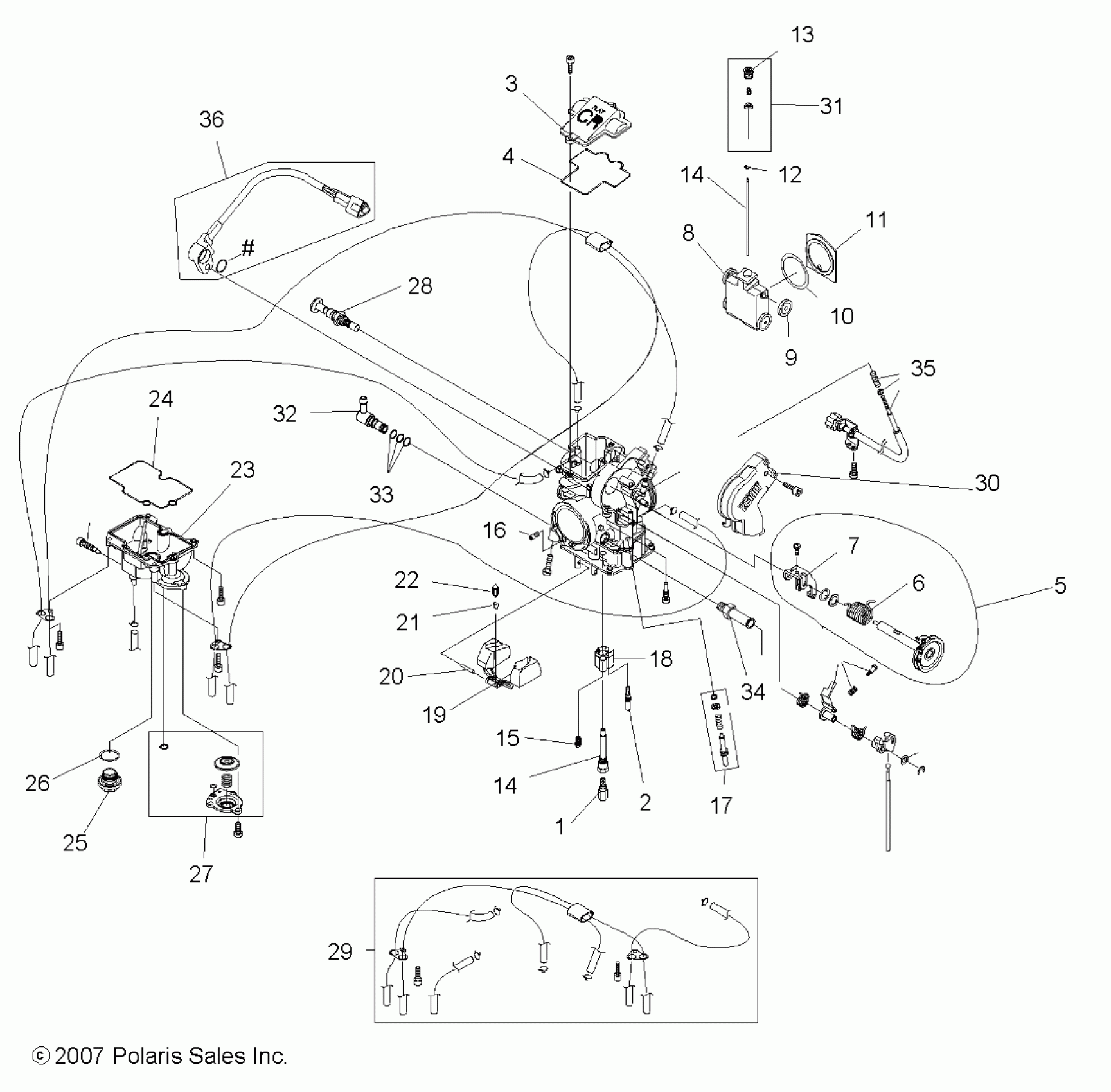

Polaris OUTLAW 525 "S" - A08GJ52AA/AB/AC ENGINE, CARBURETOR - A08GJ52AA/AB/AC (49ATVCARB08OUT525S) Diagram
#
-
Asm., Carburetor, Keihin
1203432
Unavailable
1
Main Jet, KHN
3050235-158
Unavailable
1
Main Jet, KHN
3050235-160
$9.91
1
Main Jet, KHN
3050235-148
Unavailable
1
Main Jet, KHN
3050235-165
Unavailable
1
Main Jet, KHN
3050235-140
$8.23
1
Main Jet, KHN
3050235-150
Unavailable
1
Main Jet, KHN
3050235-162
$9.91
1
Main Jet, KHN
3050235-130
$7.43
1
Main Jet, KHN
3050235-155
$12.94
1
Main Jet, KHN
3050235-170
$12.94
1
Main Jet, KHN
3050235-145
$9.11
1
Main Jet, KHN [Stock]
3050235-138
Unavailable
1
Main Jet, KHN
3050235-142
$9.11
1
Main Jet, KHN
3050235-135
$7.43
1
Main Jet, KHN
3050235-168
Unavailable
1
Main Jet, KHN
3050235-152
$9.11
1
Main Jet, KHN
3050235-132
$7.43
2
Pilot Jet, KHN
3050219-42
Unavailable
2
Pilot Jet, KHN
3050219-48
$9.91
2
Pilot Jet, KHN
3050219-40
$12.94
2
Pilot Jet, KHN
3050219-50
$9.91
2
Pilot Jet
3050219-45
$12.94
3
Cover, Carburetor Top
3131652
$42.39
4
Seal, Carburetor Cover
3131653
$39.99
5
Kit, Throttle Shaft, FCR
2203567
$190.46
6
Spring, Throttle
-------
Unavailable
7
Arm, Link Throttle Valve
-------
Unavailable
8
Valve, Throttle
3131657
Unavailable
9
Roller, Throttle Valve
3131658
$17.49
10
Seal, Throttle Valve
3131659
$13.59
11
Plate, Throttle Valve
3131660
$195.99
12
Clip, Needle
3131661
$5.75
13
Screw, Needle Set
3131662
$22.79
14
Kit, Carb, Needle Jet and Seat
2203640
$114.99
14
Kit, Carb, Needle Jet and Seat
2203640
$114.99
15
Starter Jet, KHN [#85]
3131663
$35.54
16
Slow Air Jet, KHN [#100]
3131677
$24.79
17
Kit, Pilot Screw
2203522
Unavailable
18
Plate, Buffer
3131665
$17.10
19
Float, Carburetor
3131666
$106.49
20
Pin, Float
3050232
$8.89
21
Clip, Float Valve
3050229
$8.79
22
Needle
2203523
$51.99
23
Bowl, Float
3131667
$140.79
24
Seal, Float Bowl
3131668
$16.99
25
Plug, Float Bowl Drain
3131669
$40.46
26
O-Ring, Plug Screw
3050217
$4.84
27
Kit, Accelerator Pump Bowl
2203524
Unavailable
28
Valve, Choke
3131670
$145.22
29
Kit, Breather Hoses
2203525
$115.99
30
Cover, Throttle
3131671
$148.79
31
Kit, Needle Set Screw, FCR
2203530
$56.99
32
Fitting, Fuel Inlet
3131673
Unavailable
33
O-Ring, Fuel Inlet
3131674
Unavailable
34
Fitting, Breather Hose
3131675
$50.49
35
Kit, Idle Speed Screw
2203526
$59.99
36
Kit, Throttle Position Sensor
2203527
$223.19
