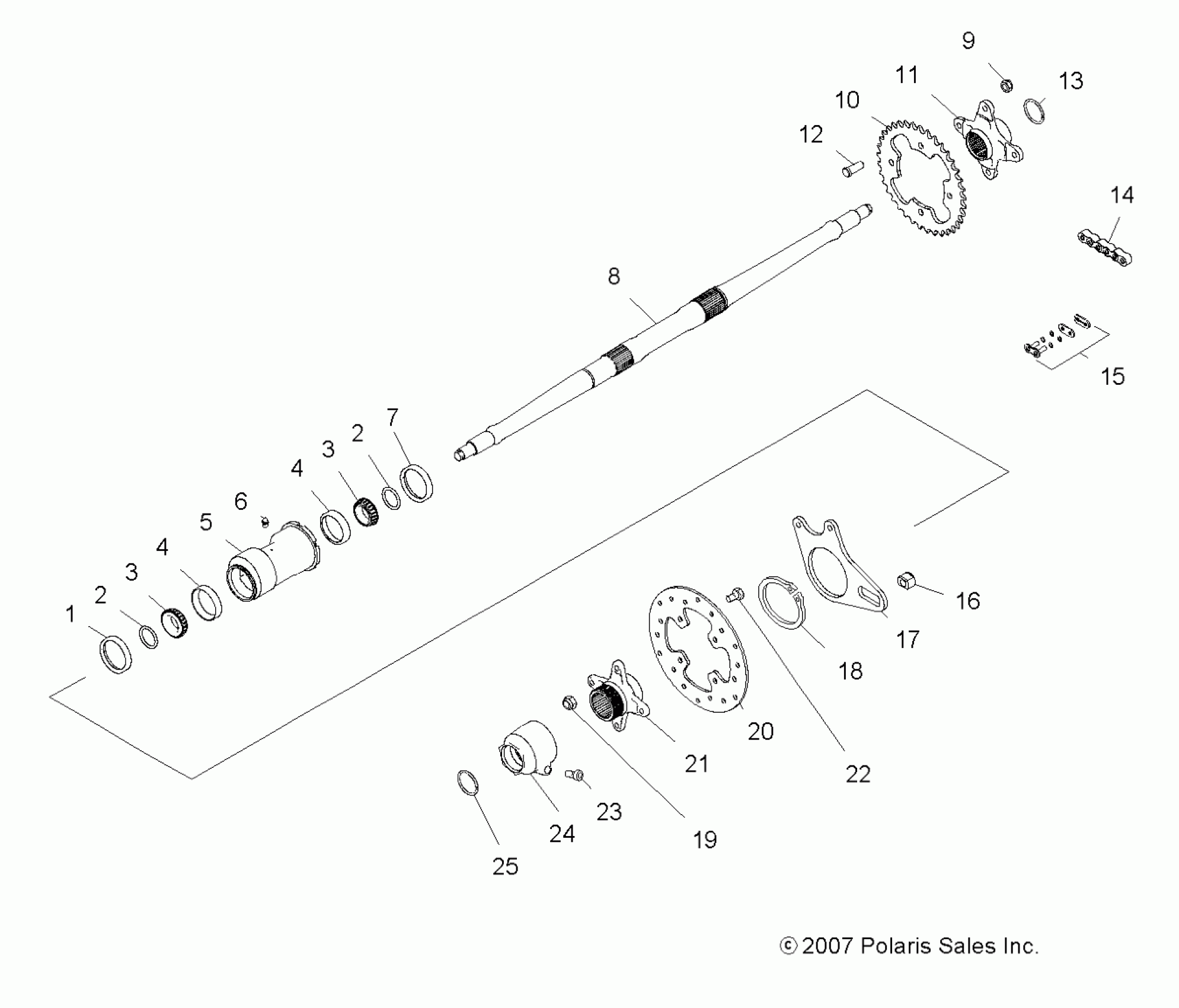

Polaris OUTLAW 525 "S" - A08GJ52AA/AB/AC DRIVE TRAIN, REAR AXLE and HOUSING - A08GJ52AA/AB/AC (4999201849920184B06) Diagram

#

Description
Price

1

Seal, Double Lip

3610105

$32.37

2

O-Ring

5412220

$2.02

2

O-Ring

5412220

$2.02

3

Bearing, Cone, Taper

3514393

$27.99

3

Bearing, Cone, Taper

3514393

$27.99

4

Bearing, Cup, Taper

3514394

$19.99

4

Bearing, Cup, Taper

3514394

$19.99

5

Housing, Axle, Rear

5133248

Unavailable

6

Fitting, Lubrication

7080306

$3.19

7

Seal, Lip

3610089

$32.37

8

Axle, Rear

5133722

Unavailable

9

Nut, Nylok

7542439

$1.49

10

Sprocket, 38T, Rear

3222152

Unavailable

11

Hub, Sprocket

5130001

$184.99

12

Screw

7512405

$3.99

13

Ring, Retaining

7670147

$7.99

14

Chain, 98P

3221193-098

Unavailable

15

Link, Connector

3221192

$27.99

16

Bushing, Caliper Mount

5136470

Unavailable

17

Mount, Caliper Axle

5245939

$44.51

18

Ring, Retaining, External

7710516

Unavailable

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

20

Disc, Brake

5246155

Unavailable

21

Hub, Rear Disc

5133340

Unavailable

22

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

23

Screw

7515102

$4.79

24

Nut, Axle

5133428

Unavailable

25

Ring, Retaining

7710405

$4.79
