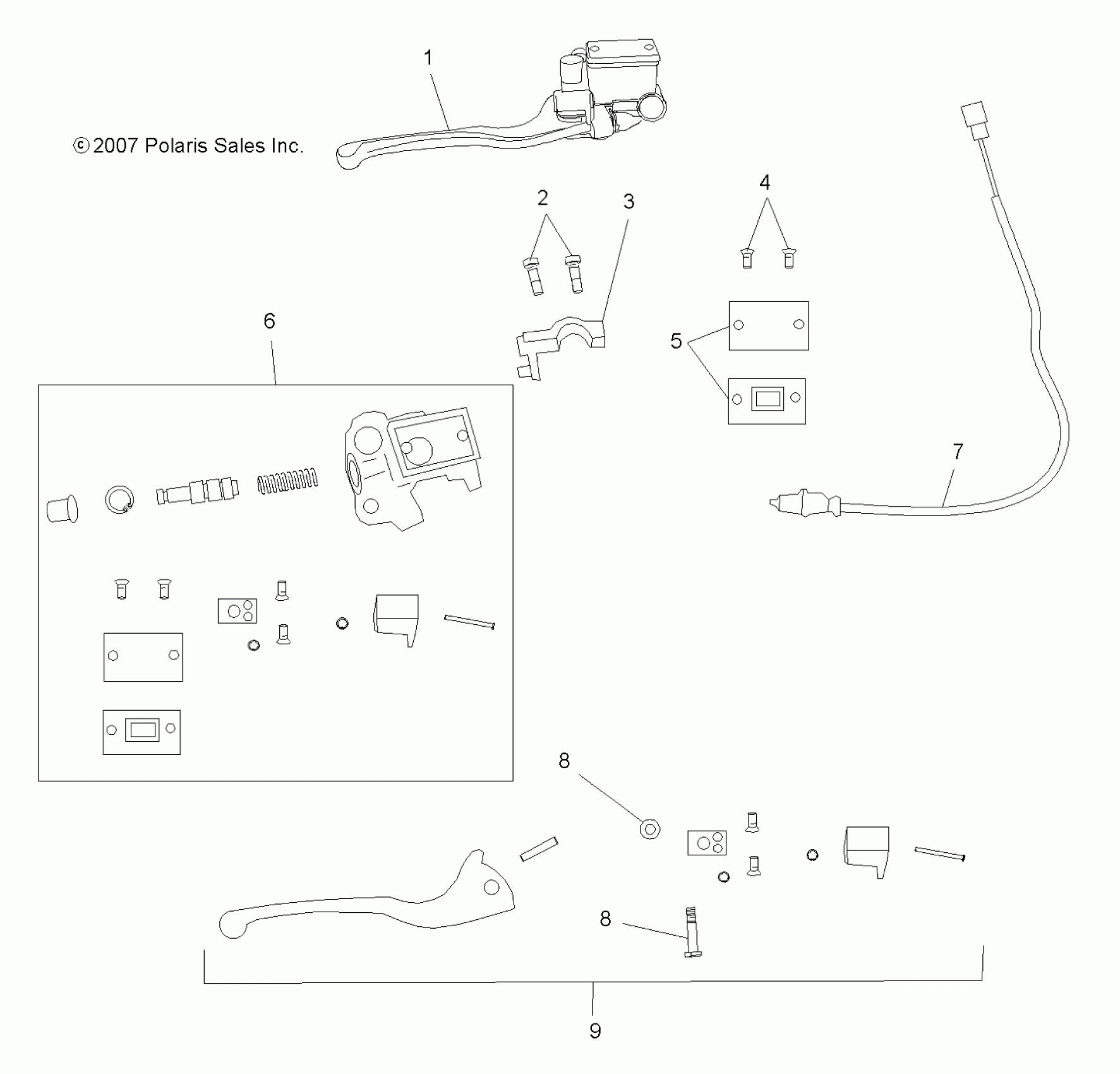

Polaris OUTLAW 525 "S" - A08GJ52AA/AB/AC BRAKES, FRONT BRAKE and MASTER CYLINDER - A08GJ52AA/AB/AC (49ATVMCLH07OUT525) Diagram

#

Description
Price

1

Asm., Master Cylinder w/Rev. Bracket, 14MM [Incl. All]

1911218

Unavailable

2

Screw, Reservoir Clamp

2203251

$4.79

3

Bracket, Reverse Lever

5135514

$32.37

4

Screw, Reservoir Cover

2203250

$5.59

5

Kit, Reservoir Cover

2203249

$28.32

6

Kit, Piston w/Bracket

2203247

Unavailable

7

Switch, Brake Light, Mechanical

2203253

$36.41

8

Nut, Pivot Pin

2203252

Unavailable

8

Nut, Pivot Pin

2203252

Unavailable

9

Kit, Brake Lever

2203425

Unavailable

9

Lever, Brake, RH

5631979

Unavailable
