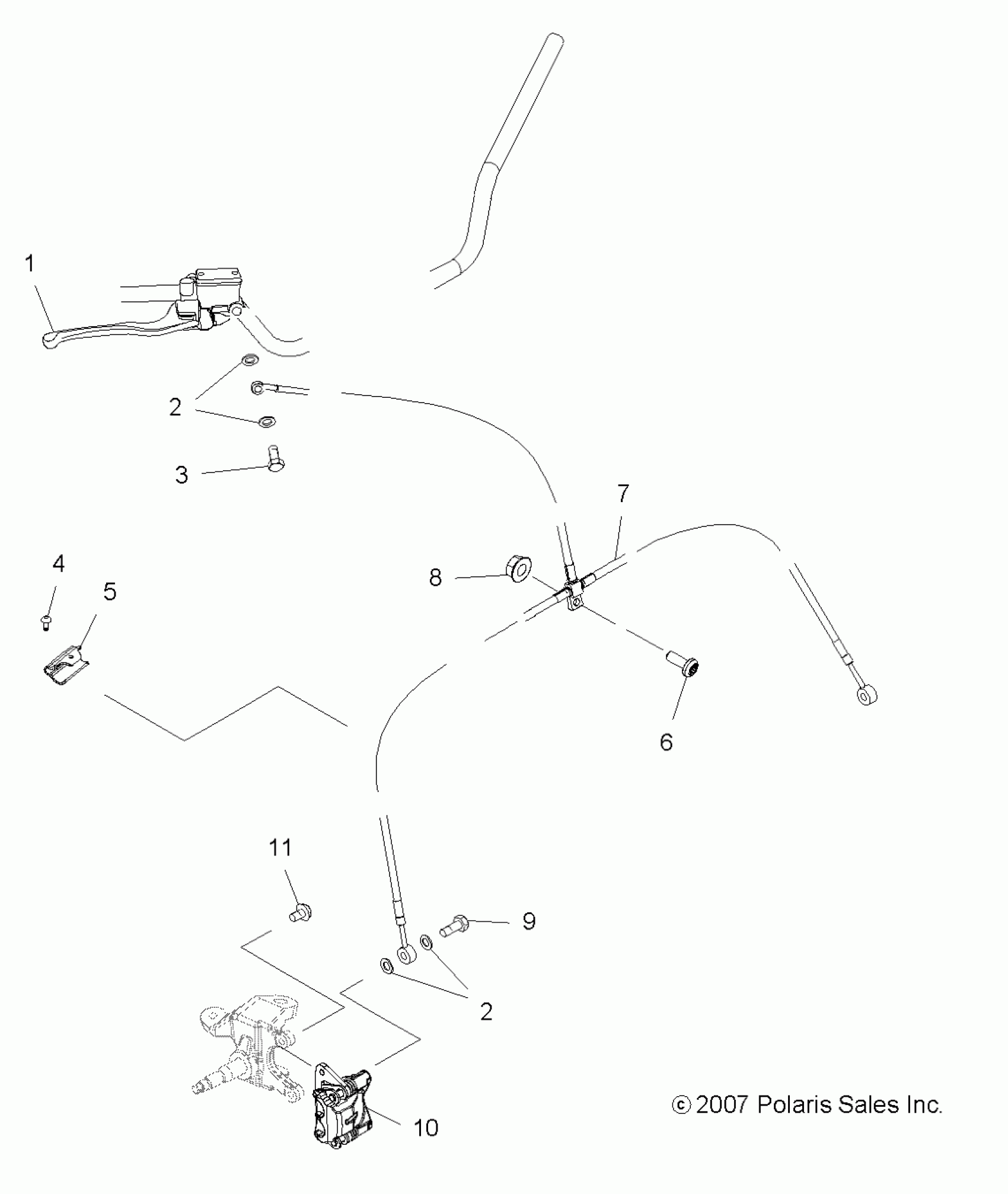

Polaris OUTLAW 525 "S" - A08GJ52AA/AB/AC BRAKES, FRONT ASM. - A08GJ52AA/AB/AC (49ATVBRAKEFRT08OUT525S) Diagram

#

Description
Price

1

Asm., Master Cylinder w/Rev. Bracket, 14MM

1911218

Unavailable

2

SEAL

5413212

$4.79

2

SEAL

5413212

$4.79

3

BOLT, BANJO

1910499

$5.59

4

Screw

7517396

$5.59

5

Retainer, Brake Line

5436350

$34.99

6

SCREW

7518546

$3.19

7

Line, Front Brake, J/B Crimped

1911003

Unavailable

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

BOLT, BANJO

1910499

$5.59

10

Asm., Brake Caliper, LH

1911186

$271.99

10

Asm., Brake Caliper, RH

1911187

$329.19

11

Bolt

7518760

$9.59
