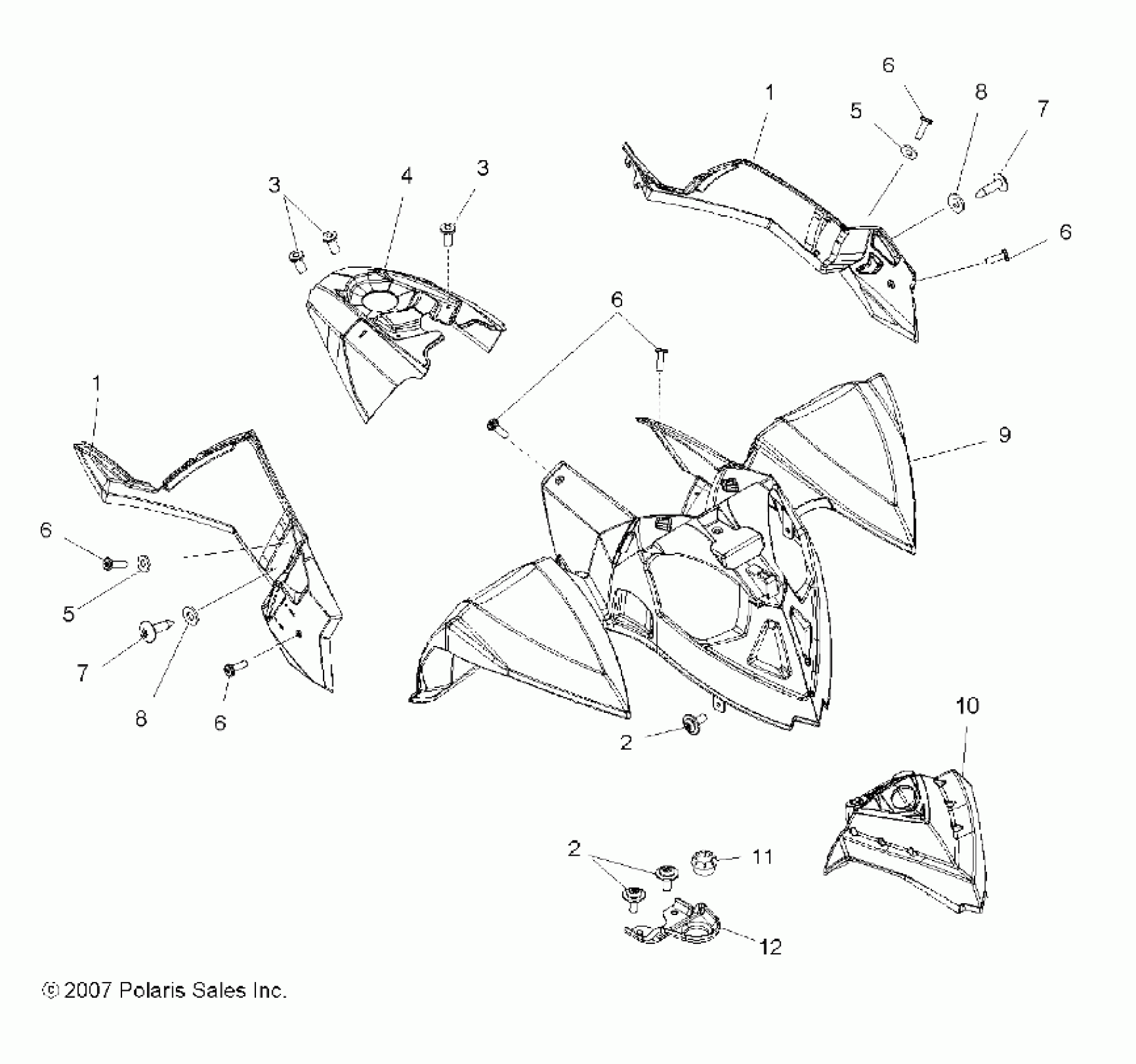

Polaris OUTLAW 525 "S" - A08GJ52AA/AB/AC BODY, FRONT CAB and SIDE PANELS - A08GJ52AA/AB/AC (49ATVCAB08OUT525S) Diagram

#

Description
Price

1

Panel, Side, RH, White [AA][AB]

5436140-133

$115.99

1

Panel, Side, LH, White [AA][AB]

5436139-133

Unavailable

1

Panel, Side, LH, Painted Matte' White [AC]

5437706-570

$172.22

1

Panel, Side, RH, Painted Matte' White [AC]

5437708-570

$180.16

1

Panel, Side, RH, White [AA][AB]

5436140-133

$115.99

1

Panel, Side, LH, White [AA][AB]

5436139-133

Unavailable

1

Panel, Side, LH, Painted Matte' White [AC]

5437706-570

$172.22

1

Panel, Side, RH, Painted Matte' White [AC]

5437708-570

$180.16

2

Screw

7512084

$1.49

2

Screw

7512084

$1.49

3

Screw

7518647

$11.99

3

Screw

7518647

$11.99

4

Cover, Gas Tank, Black

5436301-070

Unavailable

5

WASHER

7556034

$2.39

5

WASHER

7556034

$2.39

6

SCREW

7518238

$3.99

6

SCREW

7518238

$3.99

6

SCREW

7518238

$3.99

6

SCREW

7518238

$3.99

6

SCREW

7518238

$3.99

7

SCREW

7517685

$1.59

7

SCREW

7517685

$1.59

8

Washer

7555935

$2.39

8

Washer

7555935

$2.39

9

Asm., Cab, Front, Bright White [AB]

2633190-133

Unavailable

9

Asm., Cab, Front, Indy Red [AA]

2633190-293

Unavailable

9

Asm., Cab, Front, Painted Stealth Black [AC]

2633762-464

$629.99

10

Cover, Front, Black [AA][AB]

5436249-070

$129.51

10

Cover, Front, Painted Stealth Black [AC]

5437717-464

$123.02

11

GROMMET

5412507

$6.39

12

Bracket, Mount, Cab Front, Black

5249806-067

Unavailable
